M5Stack M5Stamp Fly M5Atom Joystick Drone Kit

€88,50 EUR
€88,50 EUR
€88,50 EUR
Save €0,00
Subtotal: €88,50

Free Shipping from 50€ in EU / 80€ Worldwide

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB

M5Stack M5Stamp Fly M5Atom Joystick Drone Kit

€88,50
M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB
M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB
M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB
M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB
M5Stack M5Stamp Fly M5Atom Joystick Drone Kit (Pre-Order) - OpenELAB

M5Stack M5Stamp Fly M5Atom Joystick Drone Kit

€88,50
Description

note: This product is a pre-sale product, the delivery period is about 1 month after the auction.

Includes

M5Stamp Fly x 1

M5Atom Joystick x 1



M5Stamp Fly

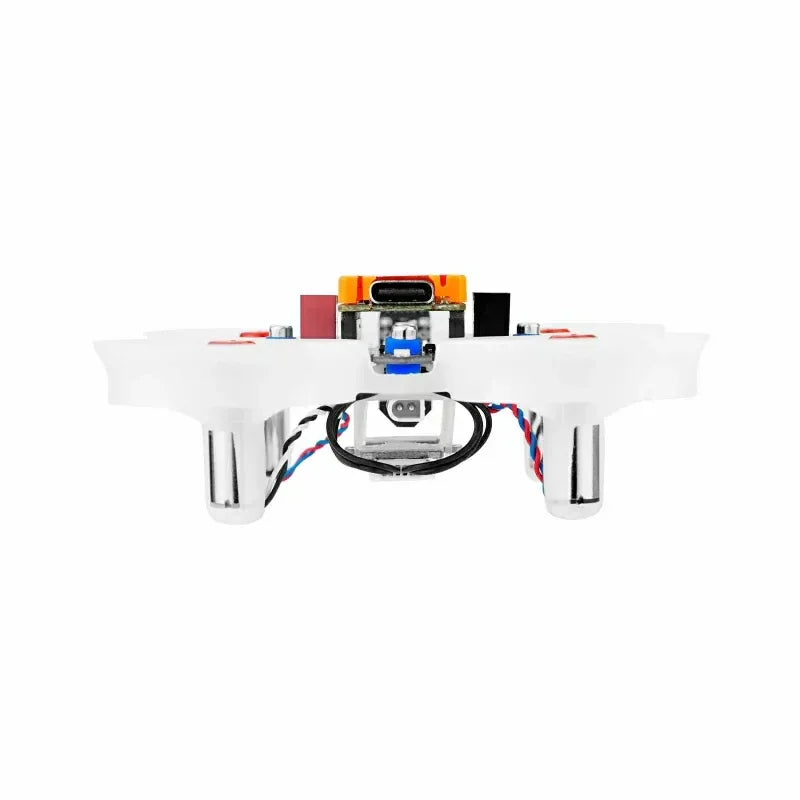

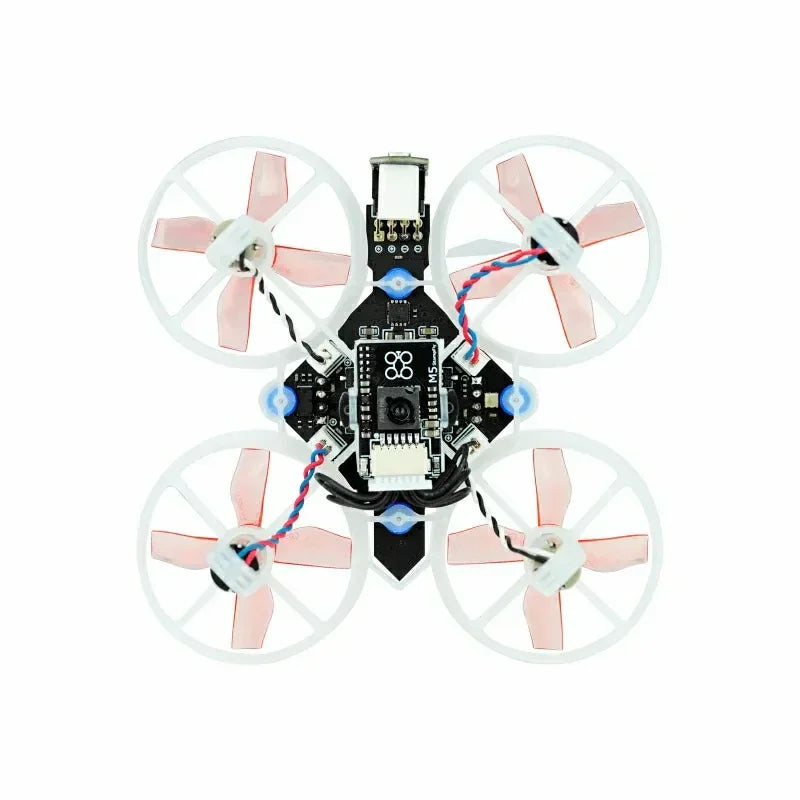

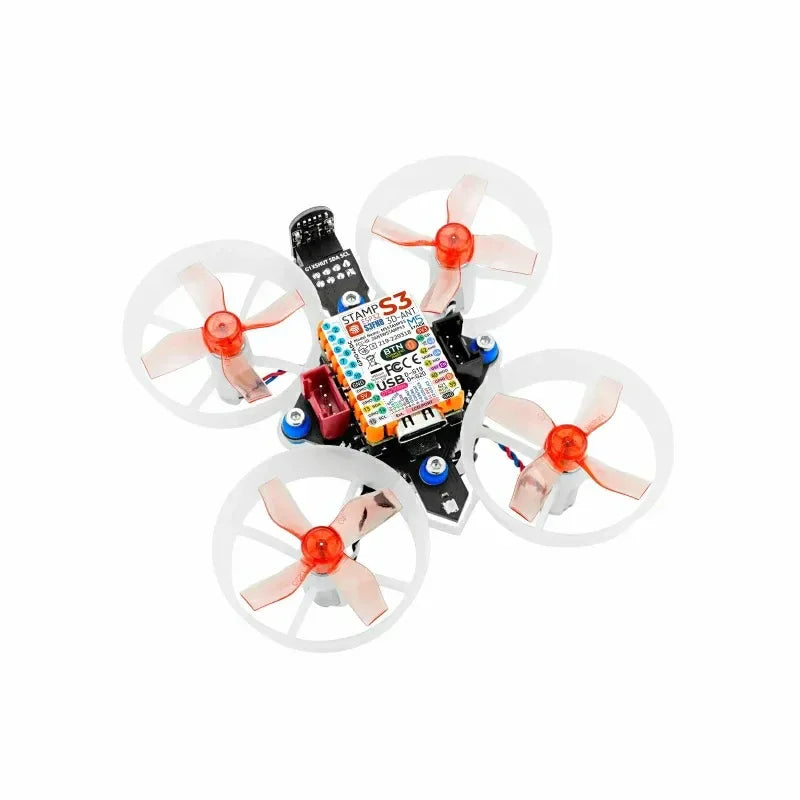

The M5Stamp Fly is an exciting programmable open-source quadcopter kit that offers a range of features for drone enthusiasts and developers. Let’s break down its key components:

  1. Main Controller (StampS3): The StampS3 serves as the central brain of the quadcopter. It integrates a BMI270 6-axis gyroscope for precise motion sensing and a BMM150 3-axis magnetometer for detecting orientation and direction.

  2. Altitude and Obstacle Sensors:

    • BMP280 Barometric Pressure Sensor: Measures atmospheric pressure to determine altitude.
    • VL53L3(ToF) Distance Sensors: These sensors enable precise altitude hold and obstacle avoidance.

  3. Optical Flow Sensor (PMW3901MB-TXQT): Provides displacement detection, which is crucial for stable hovering and position control.

  4. Additional Features:

    • Buzzer: Used for audio feedback or alerts.
    • WS2812 RGB LEDs: These LEDs indicate status and allow for visual interaction.
    • Reset Button: Handy for restarting or troubleshooting.
    • 300mAh High-Voltage Battery: Powers the quadcopter.
    • High-Speed Coreless Motors: Four motors drive the propellers.

  5. PCB Features:

    • INA3221AIRGVR: Monitors real-time current and voltage.
    • Grove Connectors: Two connectors for adding extra sensors or peripherals.

  6. Control Options:

    • Atom Joystick: You can control the M5Stamp Fly using an Atom Joystick via the ESP-NOW protocol.
    • Automatic and Manual Modes: Choose between these modes for different flight behaviors (e.g., precise hovering or flips).

  7. Open-Source Firmware: The firmware source code is open, making it suitable for educational purposes, research, and various drone development projects.

M5Atom Joystick

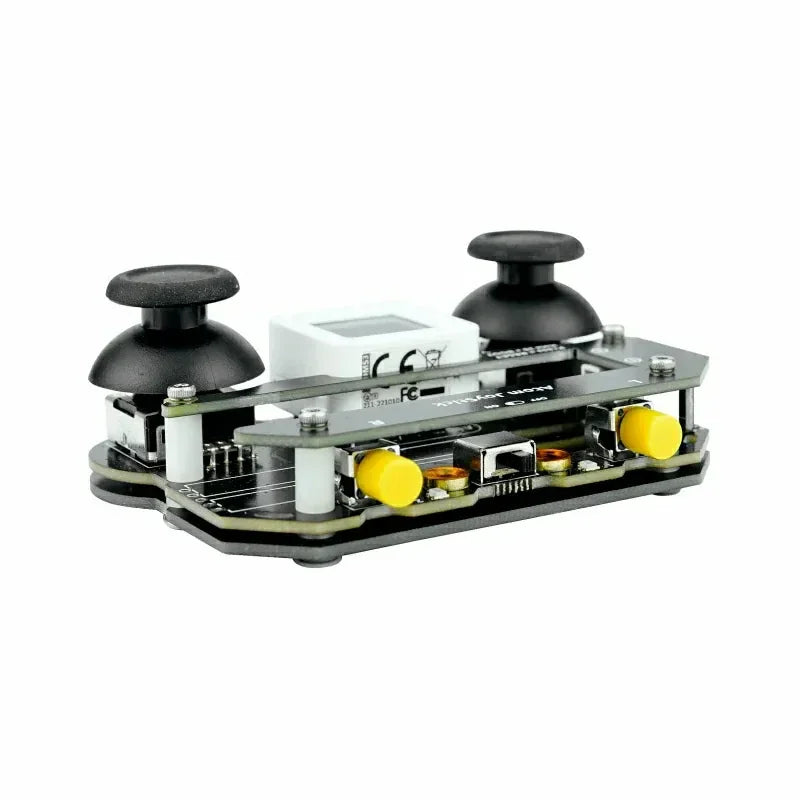

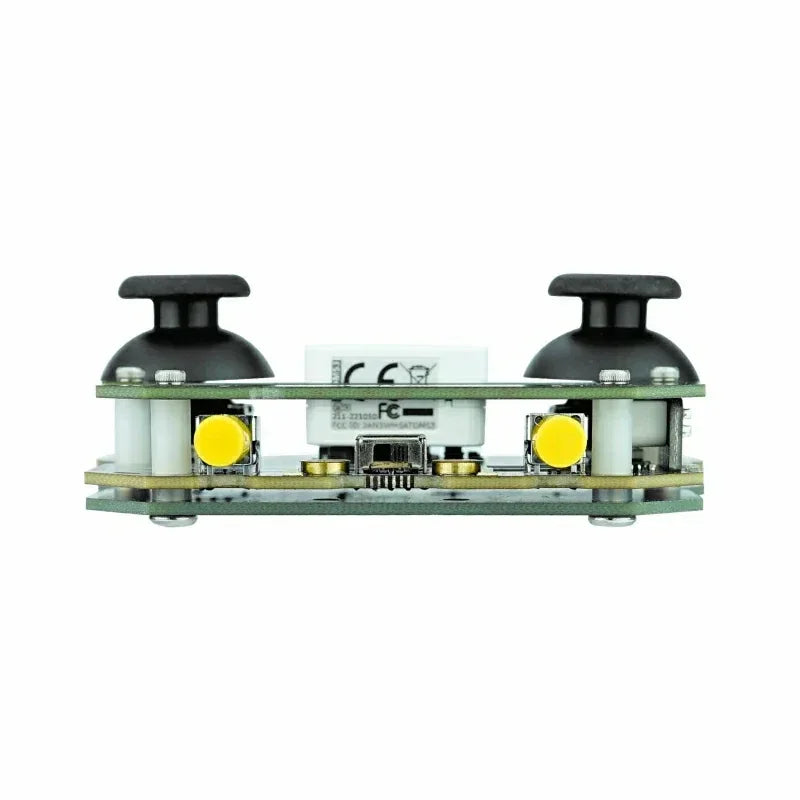

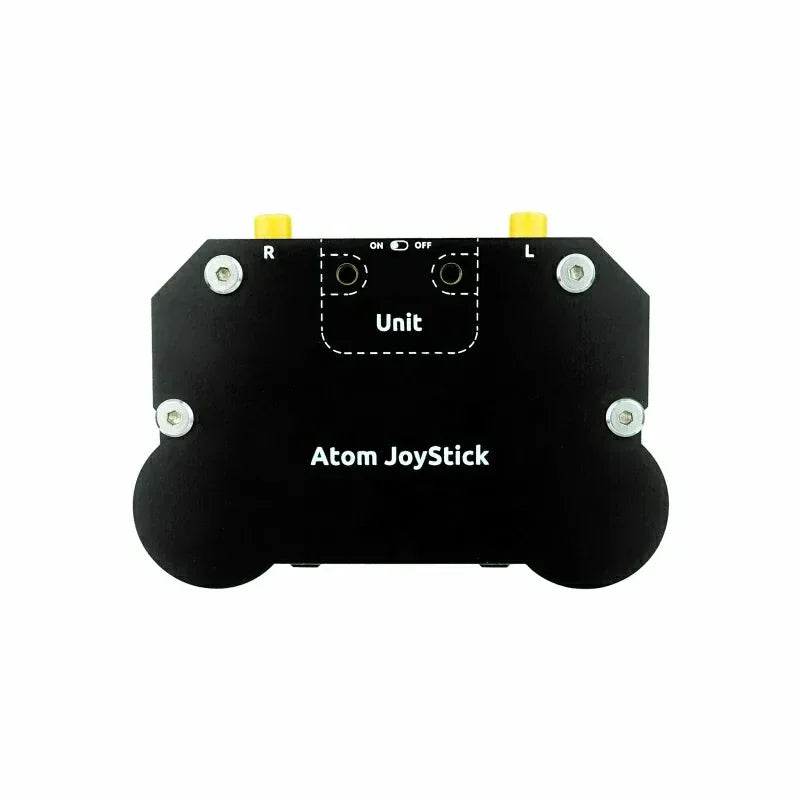

Let‘s dive into the details of the M5Atom Joystick, a versatile programmable remote controller designed for various applications:

  1. Main Controller (AtomS3): The AtomS3 serves as the central processing unit for the M5Atom Joystick. Additionally, an STM32 co-processor handles specific functions.

  2. Dual Joysticks with Hall Sensors:

    • The device features two 5-way joysticks, equipped with hall sensors for precise input.
    • These joysticks allow users to control movement in multiple directions.

  3. Function Buttons:

    • The M5Atom Joystick includes two function buttons that can be customized for specific actions.
    • These buttons enhance flexibility and interaction.

  4. Built-in RGB LEDs:

    • RGB LEDs are integrated into the joystick for status indication and human-machine interaction.
    • They provide visual feedback and enhance the user experience.

  5. Battery Charging Circuits:

    • The device is equipped with two high-voltage battery charging circuits(TP4067 Battery Charge Chip).
    • Users can charge the joystick conveniently.

  6. Stamp Fly Compatibility:

    • The M5Atom Joystick comes pre-loaded with the Stamp Fly control firmware.
    • It communicates with the Stamp Fly quadcopter via the ESP-NOW protocol.

  7. Open-Source Firmware:

    • The firmware source code is open-source, allowing customization and modification.
    • This makes the M5Atom Joystick suitable for various projects:
      • Drone Control
      • Robot Control
      • Smart Cars
      • DIY Creations



Schematic Diagram

Download Full Schematic Diagram StampS3_Fly_Hat

Download Full Schematic Diagram Stamp_Fly

Download Full Schematic Diagram PMW3901MB

Download Full Schematic Diagram Atom JoyStick



Example

Arduino: M5StampFly firmware source code



Video


Specifications

Stamp Fly

Specification Parameter
M5StampS3 ESP32-S3@Xtensa LX7, 8M-FLASH, WiFi, OTG\CDC support
Motor 716-17600kv
Distance Sensor VL53L3CXV0DH/1 (0x52) @ max 3m
Optical Flow Sensor PMW3901MB-TXQT
Barometric Sensor BMP280 (0x76) @ 300-1100hPa
3-axis Magnetometer BMM150 (0x10)
6-axis IMU Sensor BMI270
Grove I2C+UART
Battery 300mAh 1S high-voltage lithium battery
Battery output voltage 4.35V
Battery life About 4 mins
Current/Voltage Detection INA3221AIRGVR (0x40)
Buzzer Built-in Passive Buzzer @ 5020
operating temperature 0-40°C
Product Size 81.5*81.5*31mm
Packaging Size 162*99*36mm
Product Weight 36.8g
Packaging Weight 70.7g

Atom JoyStick

Specification Parameter
MCU STM32F030F4P6
RGB WS2812C
Charging IC TP4067@4.35V
Battery 300mAh
Charging Current DC5V/430mA
Battery charge time(Input:5V/1A) About 55 Mins
Battery output voltage 4.35V
Button Left/Right Button
Buzzer Built-in Passive Buzzer@5020
operating temperature 0-40°C
Product Size 84*60*31.5mm
Packaging Size 162*99*36mm
Product Weight 63.5g
Packaging Weight 96.7g
