Description

Note: All products are tax-inclusive.

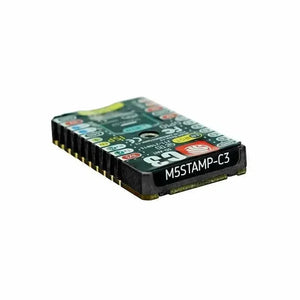

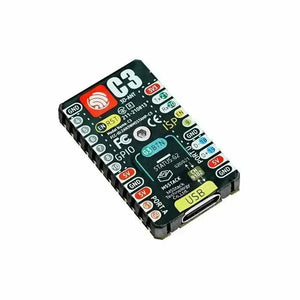

M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3 RISC-V MCU with Wi-Fi connectivity for IoT edge devices such as home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, while also make it optimal for industrial IoT equipment collecting sensor data within a factory or a building.

The Stamp-C3 is based on 32-bit RISC-V micro controller and operates at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash, it can facilitate many different use-cases involving connected devices. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.



Product Features

  • MULTIPLE STYLE:

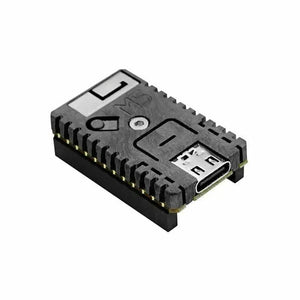

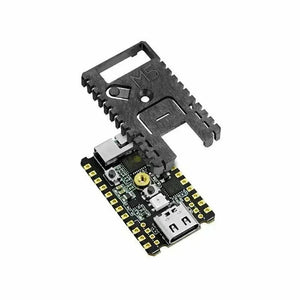

    • Three types soldering options are available(SMT, DIP, fly wire), with a high-temperature resistant plastic enclosure, Peak temperature = 230℃
  • HIGH INTEGRATION:

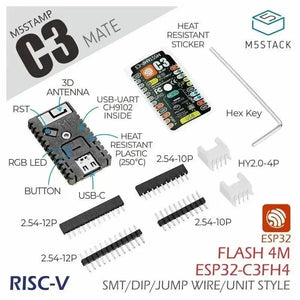

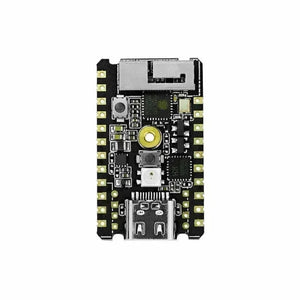

    • Stamp-C3 contains 5V->3.3V DC/DC design, GPIOx13, programmable RGB LED x1, Reset button x1, button x1, and 3D antenna, providing stable and reliable wireless communication.
  • LOW-CODE DEVELOPMENT:
    • Stamp-C3 is fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms to quickly build various applications. (UIFlow support coming soon)

Application

  • DIY Prototyping
  • Home Appliances
  • Industrial Automation

Specifications

Specifications Parameters
ESP32-C3 32bit RISC-V single-core processor, clocked at 160 MHz
Storage 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH
Wi-Fi 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps
Input voltage 5V @ 500mA
HMI Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1
USB interface TypeC x1
Antenna Type 2.4G 3D Antenna
Module peripheral interface resources ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
IO interface x13 G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
IO interface spacing 2.54mm
Fixing screw specifications M2*4 countersunk head hexagon socket mechanical teeth
Net weight 3.8g

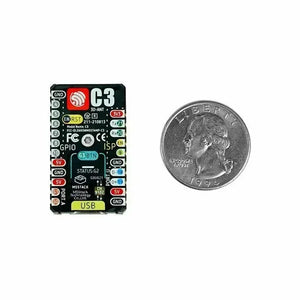

Product size 34 * 20 * 4.6mm
Packing size 85*55mm sealing bag (translucent)
