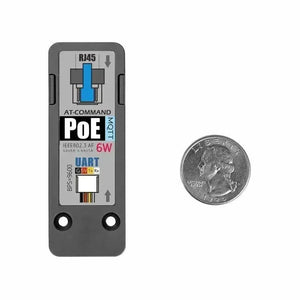

M5Stack MQTT PoE Unit with PoE Port
MQTT PoE Unit is an Ethernet module designed for MQTT (Message Queuing Telemetry Transport) communication. It supports Power over Ethernet (PoE) for power supply and incorporates the W5500 Ethernet chip for network connectivity. The module also features a UART communication interface for AT command control.
The module is equipped with an integrated RJ45 10/100 Mb network port, enabling seamless connection to Ethernet networks. It supports the subscription of four topics, allowing for efficient and flexible communication with MQTT brokers or servers.
With its low network latency and high stability, the MQTT PoE Unit is specifically designed for industrial automation, security monitoring systems, automation measurement, and equipment data on cloud applications. It ensures reliable and efficient communication between devices and the cloud, facilitating real-time data exchange and control.
The use of Power over Ethernet simplifies the module's power supply requirements, reducing wiring complexity and installation costs. The embedded W5500 Ethernet chip provides reliable and fast network connectivity, ensuring smooth communication.
The PoE version has integrated PoE power, with 1.2A@5V (6W) load capability.
Product Features
- Embedded W5500 Ethernet chip
- RJ45 network port 10/100Mbps
- PoE power supply: 1.2A@5V(6W)
- Ethernet MQTT communication
- Support 4x Topic subscription
- Low latency
- Development method.

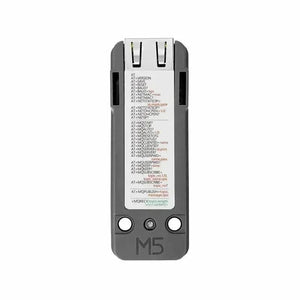

- AT command, UART: 9600bps, default
- Development Platform: UIFlow, Arduino
Include
- 1x UNIT MQTT
- 1x HY2.0-4P cable (20cm)
Applications
- Remote data collection/up to the cloud
Specification
| Specifications | Parameters |
|---|---|
| Module Processor | ARM Cortex-M3 |

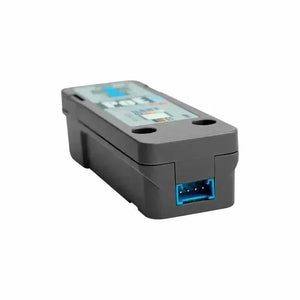

| Communication interface | UART: baud 9600bps 8N1 default |
| MQTT | Support 4x Topic subscription, not support MQTTS |

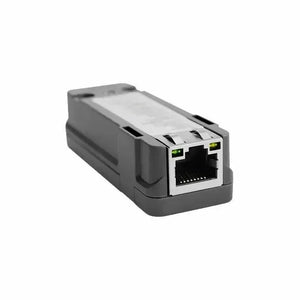

| Network port | RJ45 adaptive 10/100M network port |
| Delay | Delay `10ms |
| PoE power supply capability | 1.2A@5V(6W) / Voltage DC 37-57V |
| Working current | 190mA |
| Standby current | 130mA |
| Net weight | 27.0g |
| Gross weight | 34.2g |
| Product size | 72 * 26 * 19 mm |
| Packing size | 73 * 35 * 20 mm |
