M5Stack M5StickC SERVO HAT

Note: All products are tax-inclusive.

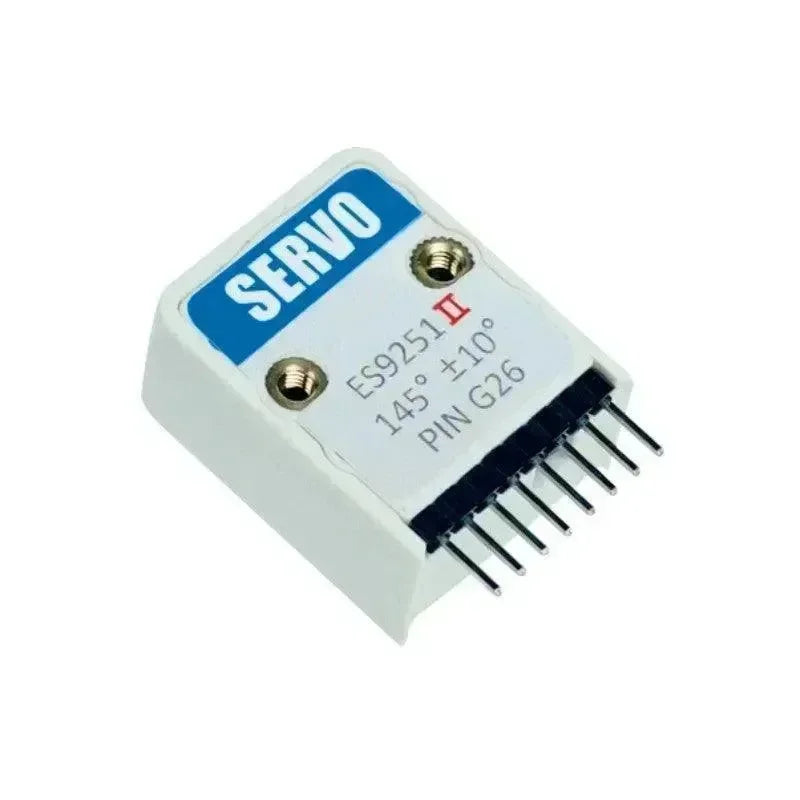

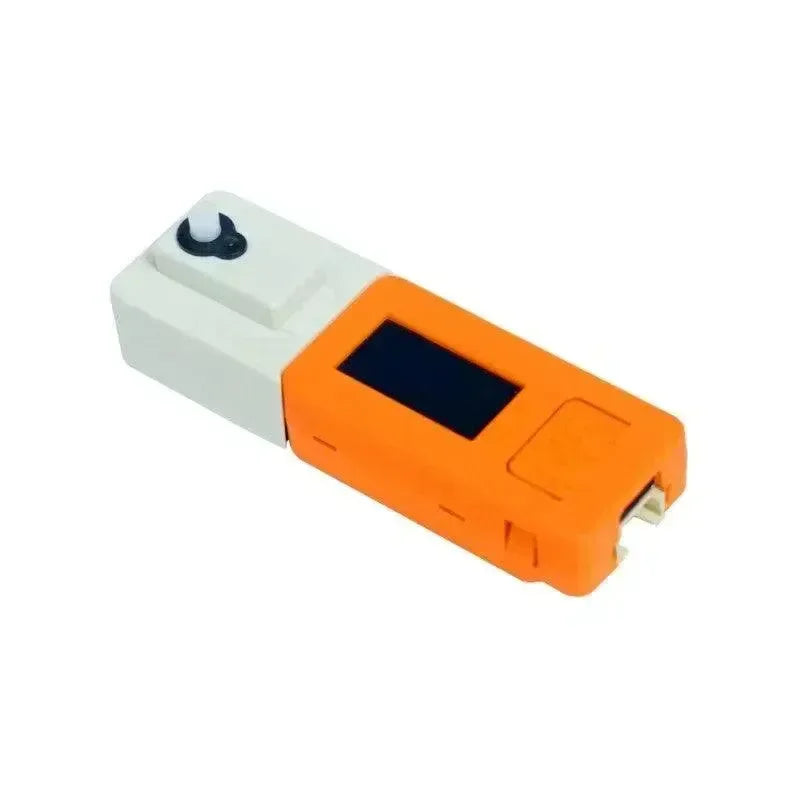

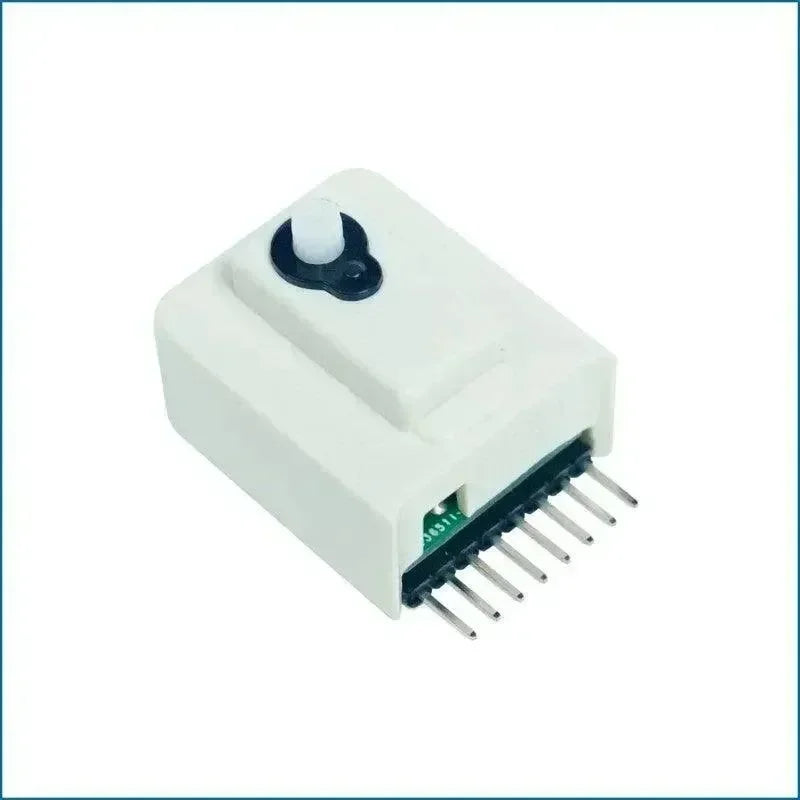

SERVO HAT is a servo motor module designed specifically for M5StickC. It features the ES9251II servo model, which provides a motion range of 145°±10°. The rotation angle is controlled using PWM (Pulse Width Modulation), ensuring precise control over the servo's movement. The signal port for connecting the SERVO HAT to the M5StickC is G26.

Product Features

• Servo Type:   Digital
• Spinning speed:  0.09sec/60°
• Gear material:  Plastic
• Weight:   2.5g
• Torque:   0.25Kgf.cm(at 4.8v)
• Voltage:   5.0V±0.2V

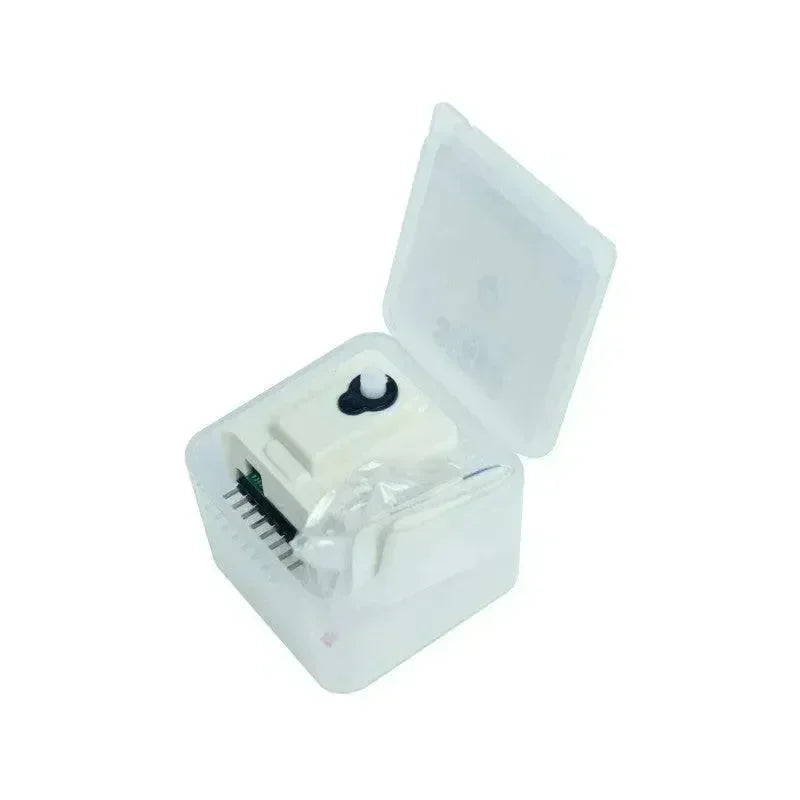

Include

• 1x Servo HAT

Applications

• Analog indication
• Angle and direction control
• Door lock controller

Specification
