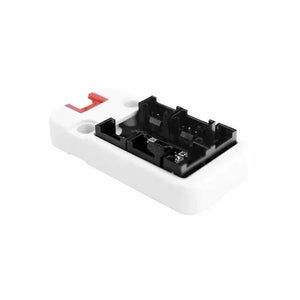

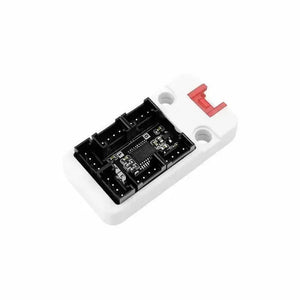

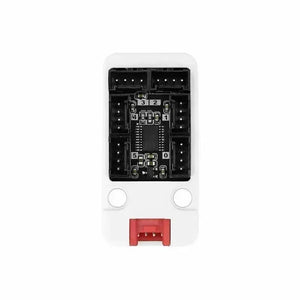

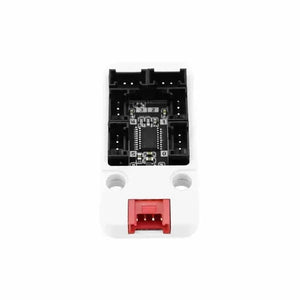

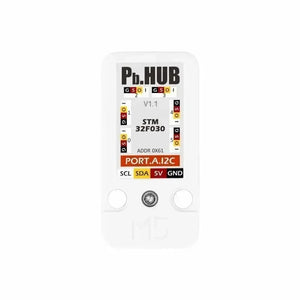

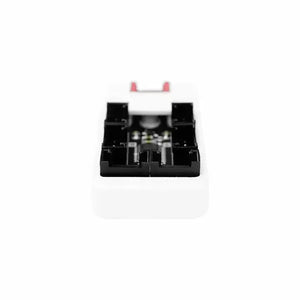

M5Stack I/O Hub 1 to 6 Expansion Unit
The PbHUB-Einheit is a high-performance 6-channel expansion module designed for effortless function expansion and management in various applications. Powered by the STM32F030 microcontroller and featuring I2C control, it ensures stable communication, seamless connectivity, and efficient integration with a wide range of compatible devices and systems.
Ideal for robotics, home automation, IoT projects, and other electronic applications, the PbHUB-Einheit provides a versatile, scalable, and reliable solution to enhance operational efficiency and optimize device performance. Whether for DIY electronics, industrial automation, or smart home setups, this expansion unit offers a flexible approach to extending system capabilities with ease.
Product Features
- 6 x GPIO Ports Expansion
- 1 x I2C Input
- Internal STM32F030 control
- 2 x Brick holes
Features of Port B Interfaces
The Port B interfaces of the PbHUB Unit are equipped with a wide range of functionalities to meet diverse application needs:
- GPIO (General Purpose Input/Output): Enables flexible digital signal control for versatile operations.
- PWM (Pulse Width Modulation): Provides precise analog signal control for tasks like motor speed regulation.
- Servo Control: Designed for smooth and accurate servo motor adjustments.
- ADC Sampling: Offers high-accuracy analog signal measurement and data conversion.
- RGB Light Control: Simplifies the management of RGB LEDs for lighting and display applications.
- Customizable Functions: Supports user-defined configurations to adapt to specific project requirements.
Applications
- Robotics
- Home Automation
- IoT Projects
- Diverse Electronic Systems
Recommended articles

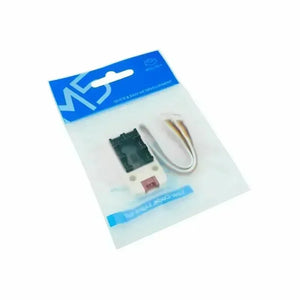

Includes
- 1x PbHUB Unit
- 1x HY2.0-4P cable (20cm)
Specification
| Spec | Parameter |
|---|---|
| Communication protocol | I2C:0x61(Modified by register) |
| Net weight | 6.7g |
| Gross weight | 11.8g |
| Product Size | 48*24*12mm |
| Package Size | 13.6*9.1*12mm |
