M5Stack Fader Unit with B10K Potentiometer

€9,50

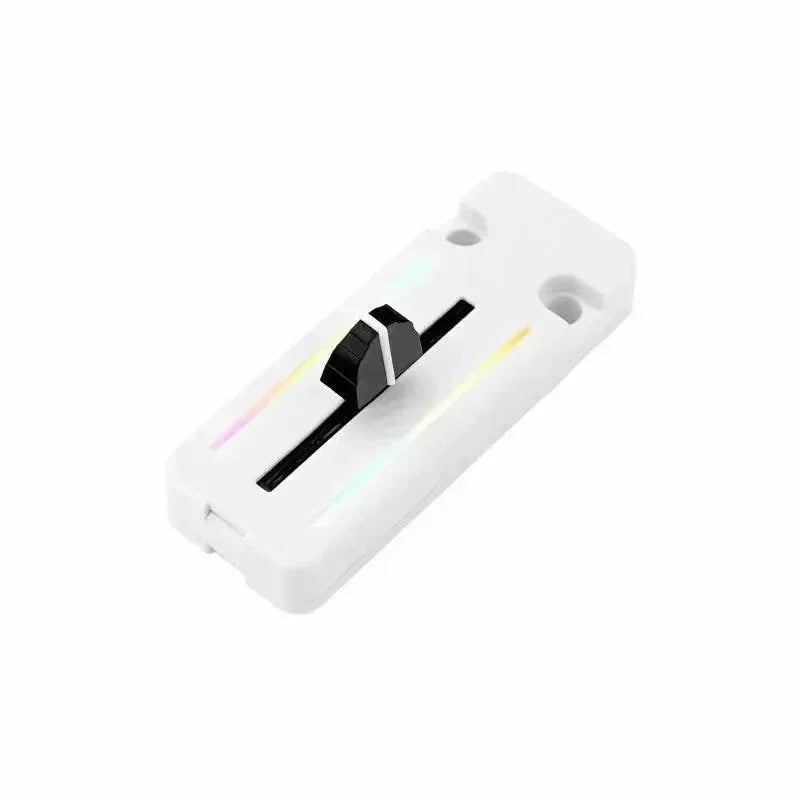

FADER Unit is a Slide Potentiometer with a color indicator that combines a 35mm slide potentiometer with 14 programmable RGB lights (SK6812). This unit offers a unique and versatile control interface.

The slide potentiometer of the FADER Unit is designed with its own center point positioning, allowing for easy and accurate control. Its stable and reliable performance ensures precise and consistent adjustments. The integrated SK6812 programmable RGB lights provide dynamic color options. These lights support digital addressing, which means you have the ability to adjust the brightness and color of each individual LED light. This feature offers flexibility and customization for various applications.

FADER Unit is well-suited for applications such as lighting control and music control, where precise adjustments and vibrant color effects are desired. Its combination of slide potentiometer and programmable RGB lights provides a convenient and engaging interface for controlling different parameters.



Product Features

  • With center point positioning
  • Excellent damping
  • Single connection 1OkΩ adjustable resistor
  • Programmable RGB lights

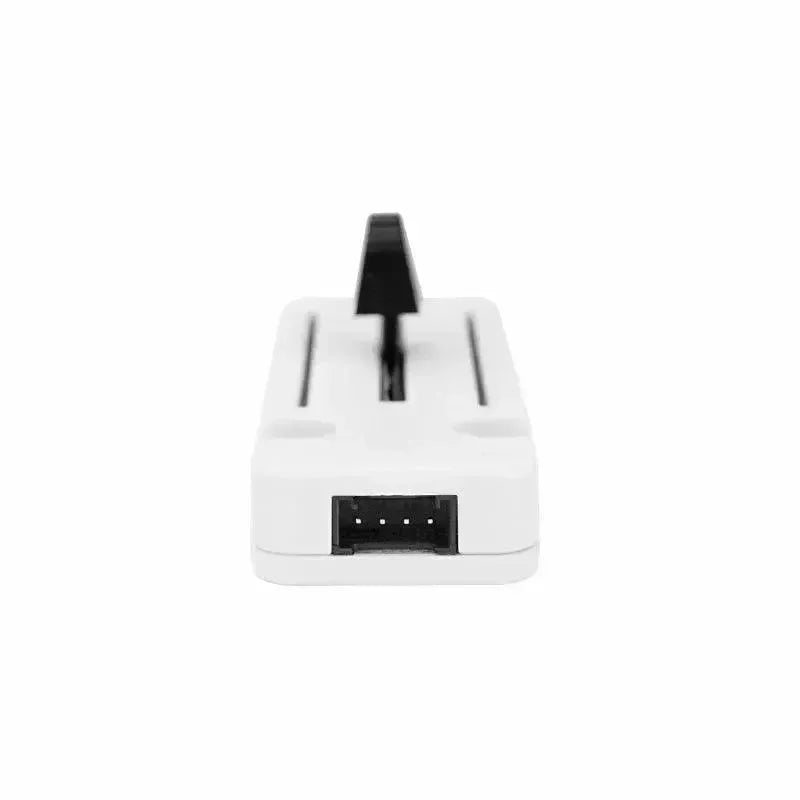

  • GROVE interface
  • Development Platform:
    • Arduino, UIFlow

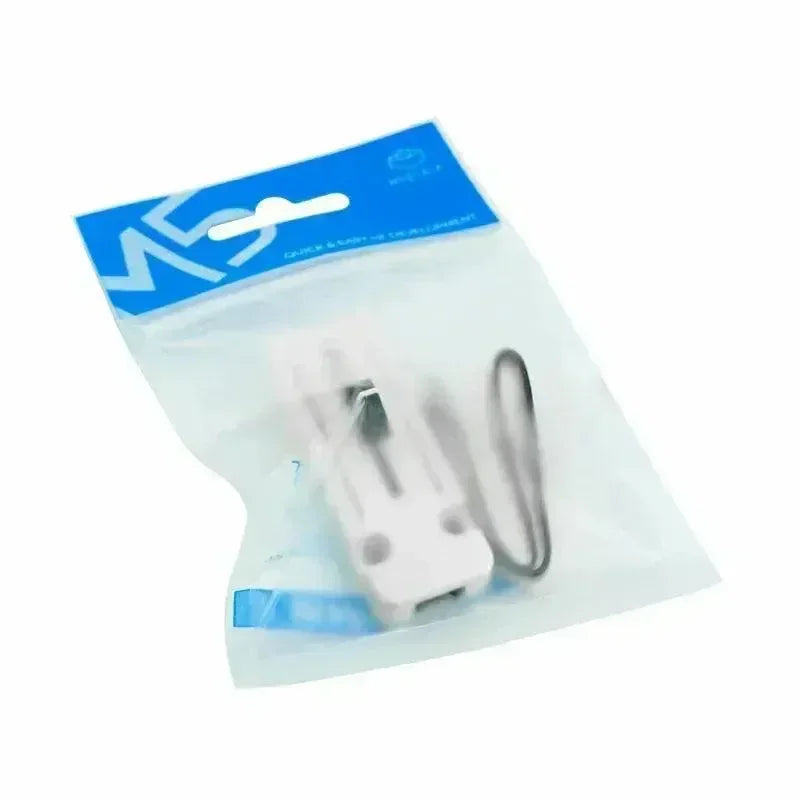

Include

  • 1x UNIT FADER
  • 1x HY2.0-4P Cable



Application

  • Human–machine interaction
  • Light and music control
  • Adjustment switch
  • Potentiometer level signal input



Specification



Specification Parameter
Fader stroke 35mm
Fader handle length 10mm
Single resistor 1OkΩ

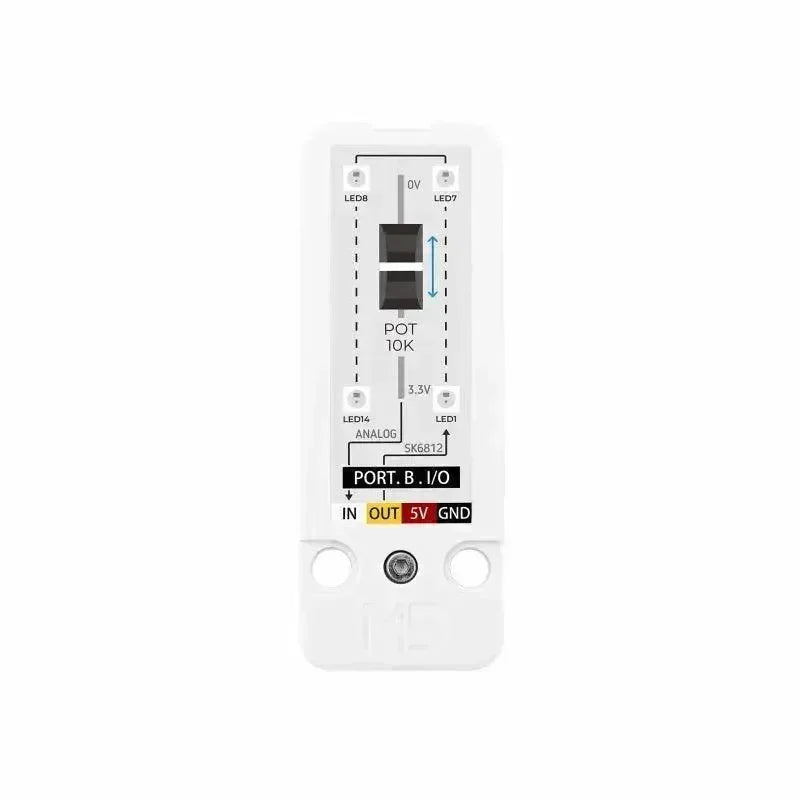

Output voltage 0-3.3V (under 5V power supply)
RGB LED 14x SK6812 Programmable RGB Lamp
Working current 90.04mA (Lighting brightness configuration 50%, fader maximum output)
Net weight 15.5g
Gross weight 30g

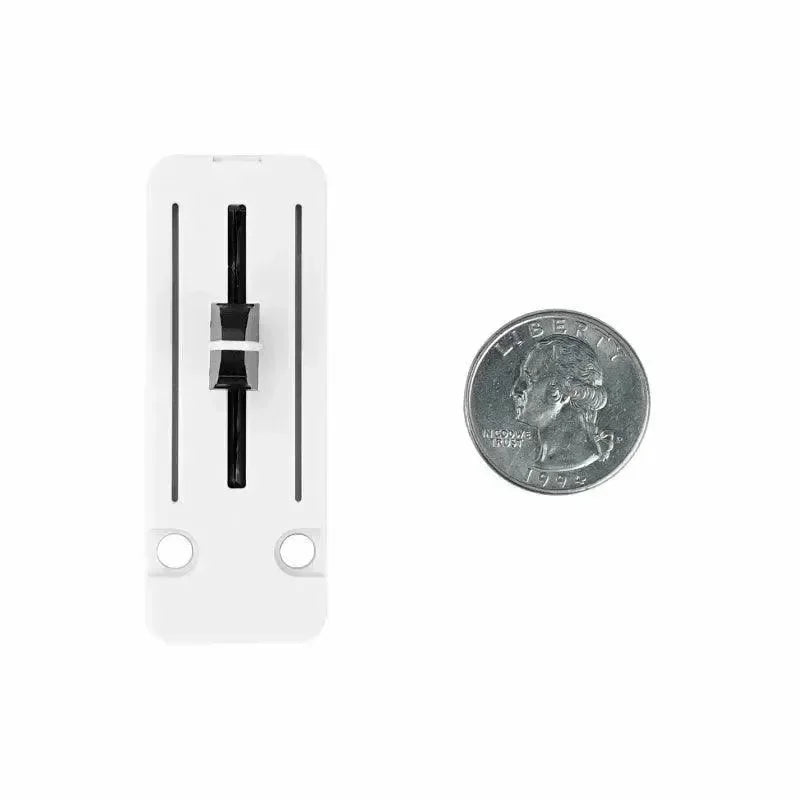

Product size 40.3 * 14 * 12.2mm
Packing size 64 * 24 * 24mm
