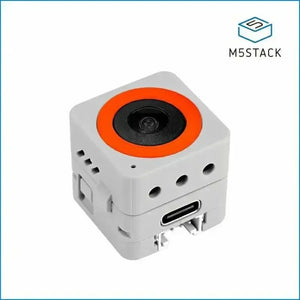

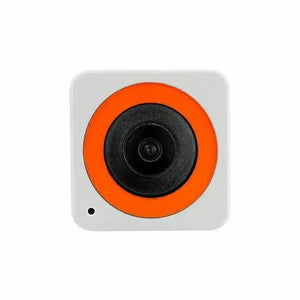

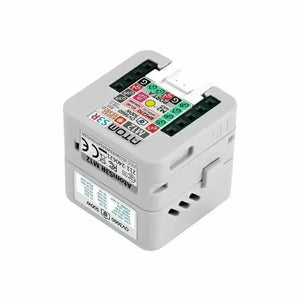

M5Stack ATOMS3R Camera Kit M12 Version (OV3660)

M5Stack ATOMS3R Camera Kit M12 Version (OV3660)

€25,50

M5Stack ATOMS3R Camera Kit M12 Version (OV3660)

€25,50

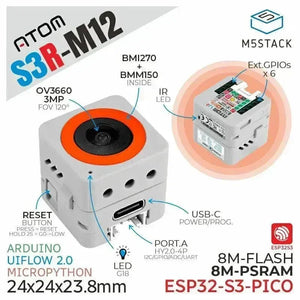

The AtomS3R M12 is an IoT programmable controller integrated with a 3-megapixel OV3660 camera, supporting high-resolution image capture. The AtomS3R M12 employs the ESP32-S3-PICO-1-N8R8 as its principal controller, offering integrated WiFi, 8MB of onboard flash memory, and 8MB of PSRAM. The device includes a power management circuit that converts 5V to 3.3V and is equipped with a three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor, both of which are integrated into the main circuitry. With UVC (USB Video Class) firmware, the device functions as a plug-and-play USB camera, eliminating the need for driver installation. Additionally, it supports infrared emission control.

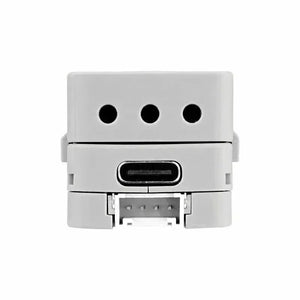

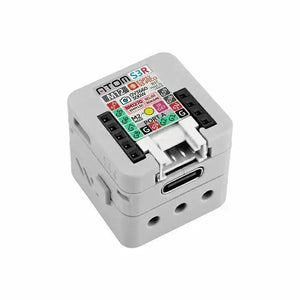

In comparison to previous ATOM series products, the AtomS3R M12 features an enhanced 3D antenna, which offers improved performance and stability. The device features a Type-C interface for power supply and firmware downloads, along with an HY2.0-4P expansion port. The bottom design includes six GPIO and power pins for easy expansion. Its compact dimensions (24x24x22.1mm) make it ideal for IoT device monitoring, educational development tools, and various embedded applications.





Features

  • Integrated ESP32-S3-PICO-1-N8R8 main controller
  • 3-megapixel OV3660 camera
  • Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
  • 8MB Flash and 8MB PSRAM
  • Supports infrared emission control
  • Expandable pins and interfaces
  • Development platforms: Arduino, UIFlow, MicroPython

AtomS3R M12 Firmware



Recommended Articles

M5Stack ATOMS3R Camera Kit M12 Version (OV3660): A New Choice for Smart Vision Technology



Includes

  • 1x AtomS3R M12



Applications

  • Plug-and-play USB camera
  • Motion detection and directional awareness
  • Wearable devices
  • Smart device control
  • IoT applications



Specifications

Specification Parameter
SoC ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG
PSRAM 8M PSRAM
FLASH 8M FLASH
Six-axis Motion Sensor (BMI270) Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity)
I2C address: 0x68
Three-axis Geomagnetic Sensor (BMM150) Accuracy: 0.3 μT
Mounted on BMI270, obtaining magnetometer data via BMI270
Camera Sensor chip: OV3660
Maximum frame rate: 30 frames/second
Output formats: RAW RGB, RGB565/555/444, CCIR656, YCbCr422, and compression
Aperture: F2.4
Resolution: 3MP (3 million pixels)
Focal length: 1.8±5% mm
Field of view: FOV 120°
Infrared IR IR emission distance at ∠180°: 12.46m
IR emission distance at ∠90°: 1.45m
IR emission distance at ∠45°: 3.88m
Sleep Current GPIO-5V power supply: DC5V@11.63 uA
Grove-5V power supply: DC5V@10.75 uA
USB-5V power supply: DC5V@92.50 uA (including PD resistor loss)
Reserved GPIO G5/G6/G7/G8/G38/G39
Operating Temperature 0°C ~ 40°C
Product Dimensions 24*24*23.8mm
Package Dimensions 47*46*27mm
Product Weight 54g
Package Weight 85.5g
