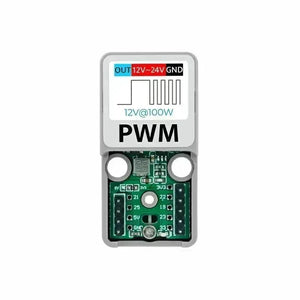

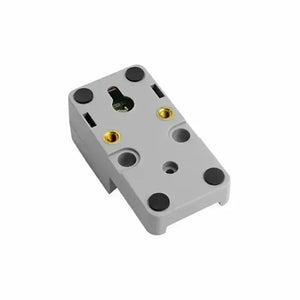

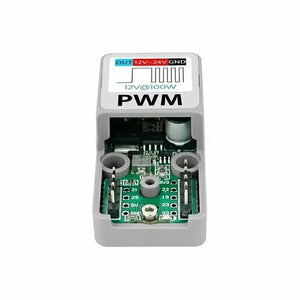

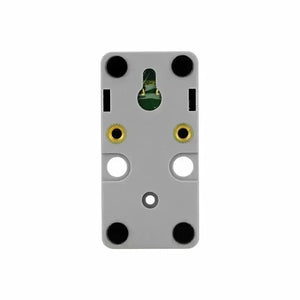

M5Stack ATOMIC PWM Base

€6,90

The M5Stack ATOMIC PWM Base is a professional-grade, single-channel PWM adjustable DC driver designed for seamless compatibility with the M5Stack Atom series controllers. Supporting a DC input range of 12-24V, it features a high-power MOSFET with a load capacity of 12V@100W for precise duty cycle control. With an integrated DCDC step-down circuit and WiFi-controlled operation, this module is ideal for demanding industrial applications, smart IoT systems, and high-power DC control.

Built for both efficiency and simplicity, the Atomic PWM Base includes a durable protective cover, easy installation, and reserved GROVE expansion for additional connectivity. It’s compatible with development platforms like Arduino and UIFlow, enhancing flexibility for developers.

Key Features

  • Module Name: Atomic PWM Base / M5Stack ATOMIC PWM Base
  • Input Voltage Range: 12-24V DC
  • Load Capacity: Up to 12V@100W
  • Built-in Control: Integrated MOSFET duty cycle control and DCDC step-down circuit for efficient performance
  • Compatibility: Supports Atom Lite, Atom Matrix, AtomS3, and AtomS3 Lite
  • PWM Output: Single-channel low-latency output for precision applications
  • Expansion Interface: Equipped with 1xGROVE connector for enhanced functionality
  • Design: All-in-one design with a protective cover for durability
  • Development Platforms: Compatible with Arduino and UIFlow for fast development



Additional Features

  • Remote Control: Utilizes Atom series WiFi functionality for wireless, real-time, and precise operation.
  • High-Power Handling: Integrated high-power MOSFET supports loads up to 100W, ensuring stable operation in demanding environments.
  • Easy Deployment: Built-in DC-DC (12V->5V) conversion circuit powers the controller and connected devices, minimizing wiring complexity.
  • Simple Installation: Designed for quick setup with user-friendly operation.



Why Choose M5Stack ATOMIC PWM Base?

  1. Wide Application Scenarios: Compatible with industrial automation, IoT power management, and high-power DC motor control.
  2. Seamless Integration: Works with Atom Lite, Atom Matrix, AtomS3, and AtomS3 Lite, providing flexibility across projects.
  3. Enhanced Development: Prepped for programming using Arduino and UIFlow, making it easier for beginners and professionals alike to implement.
  4. Flexible Expansion: The built-in GROVE interface allows for easy integration with additional modules or peripherals.

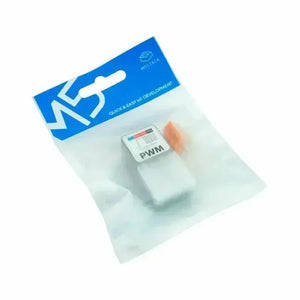

Includes

  • 1x Atomic PWM Base

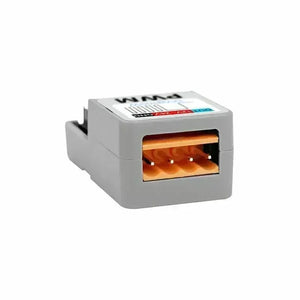

  • 1x 3.96-4P terminal

Typical Application Scenarios

  • High-Power DC Motor Speed Control: Achieve precise motor speed adjustments for industrial or mechanical systems.
  • Industrial Heating Wire Control: Supports efficient and stable regulation for high-temperature processes.
  • Smart IoT Systems: Integrates seamlessly into smart homes and remote-controlled devices.
  • Remote Power Management: Real-time control of multiple devices in centralized, wireless setups.

Specification

Resources Parameters
Driver Chip EG27324
MOSFET FDD8447L
Maximum Output Power 100W
Input Voltage Range DC 12V-24V
Number of Drive Channels 1
Power Light RED
Product Size 24*48*18mm
Package Size 136*92*20mm
Product Weight 9.9g
Package Weight 16.5g
