M5Stack ATOM TailBat - Battery Accessory for ATOM

Note: All products are tax-inclusive.

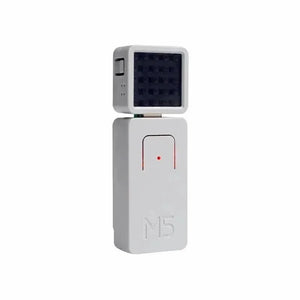

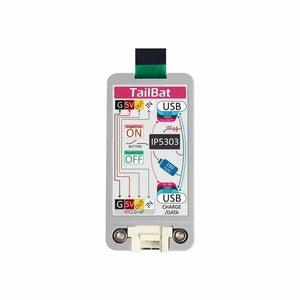

TailBat is an external battery accessory for ATOM, which can be inserted into the tail of ATOM to provide power for mobile scenarios.TailBat has a power on/off button on the front and a built-in 190mAh battery, which is controlled by the power management chip IP5303.

Usage

-When switching on the power, the red indicator light will be on.
-Click to switch on the power, double click to switch off the power.
-The indicator light blinks when charging, the indicator light is always on when fully charged.

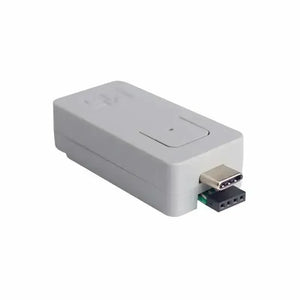

-TailBat is designed with a pass-through interface, which does not affect the original wiring and interface function, the built-in battery can only be charged through the Type-C interface, not through the GROVE interface.

Product Features

• Adapted for ATOM Matrix/ATOM Lite form factor

• Built in rechargeable lithium battery

• LED indicator

• M5Stick/M5StickC/M5StickV/M5Camera compatible

Include

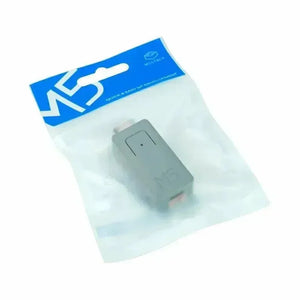

• 1x TailBat

Application

• ATOM portable power

Specification
