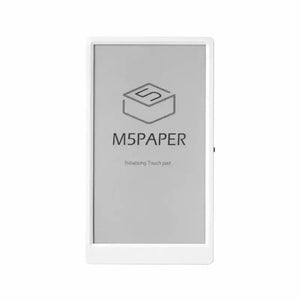

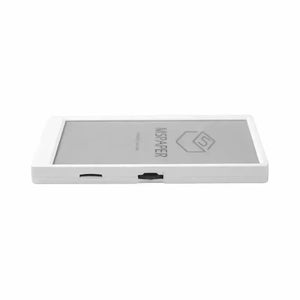

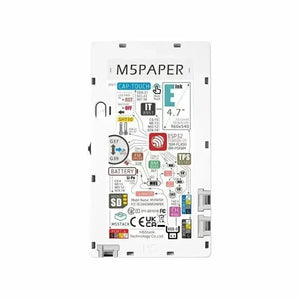

M5Paper v1.1 is M5Stack's latest core device featuring a touch-enabled E-ink display. Powered by the ESP32-D0WDQ6-V3, this is our first device to incorporate an oversized E-ink display that supports 16 grayscale levels. The display is a capacitive touchscreen that allows for two-point touch and various gesture controls.
Unlike regular LCDs, E-ink displays are easier on the eyes, making them an excellent choice for reading or viewing for extended periods. Additionally, they have low power consumption and can retain images even when the power to the display is turned off.
The CoreInk includes a multifunction button for operation, an SHT30 temperature and moisture sensor, physical buttons, and a TF card (microSD) port for data storage.
The FM24C02 internal EEPROM chip provides 2K bits (256 x 8) of EEPROM, which can be used to store essential data even when the device is powered off. An 1150mAh lithium polymer battery ensures long operating periods, and the battery life can be further extended by utilizing the RTC (Real-Time Clock) to put the device into deep sleep mode, allowing it to wake up when needed. Additionally, three HY2.0-4P expansion ports are included, enabling the creation of complex projects using existing sensors from the M5Stack ecosystem.
M5Paper v1.1 adopts a flexible e-Ink screen panel, which is the same model as that of M5Paper v1.0 hard e-Ink screen panel. All features and specs are the same for both models. We are using CP2104 and CH9102 as the USB serial chip in alternative. Please install the relevant USB driver according to your device.
Warning:
1. Do not expose to ultraviolet rays for a long time, otherwise, it may cause irreversible damage to the ink screen.
2. The low-power power management solution adopted by M5Paper is different from CORE and StickC devices. When using it, the PWR button is used as the power-on button (long press for 2s). If you need to shut down the device, you need to use the software API or It is realized by pressing the reset button on the back. When using USB power supply, it cannot be shut down.
3. During use, if the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver. For driver download, please see the content at the bottom of the document.
Product Features
-
ESP32 Standard wireless functions Wi-Fi
-
Internal 16M Flash
-
Low Power Display
-
Multi-Point touch screen
-
180 degree viewing angle
-
Built-in Magnet
-
Internal 1150mAh Battery
-

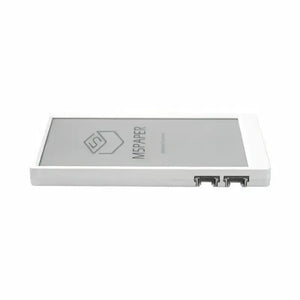

Expandable - HY2.0-4P 3 x external expansion ports
Include
- 1x M5Paper v1.1
Applications
-
IoT Terminal
-
E-Book
-
Industrial Control Panel
-
Smart Home Panel
Version distinction
| M5Paper | M5Paper v1.1 |
|---|---|
| Hard display panel | Flexible display panel |
Specification
| Resources | Parameter |
|---|---|
| ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 16MB |
| PSRAM | 8MB |
| Input Voltage | 5V @ 500mA |

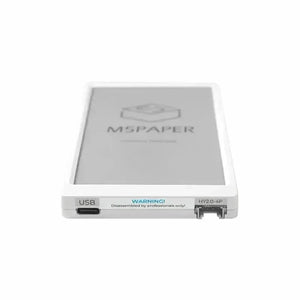

| Ports | TypeC*1, HY2.0-4P*3 , TF-card(microSD) slot |
| E-Ink Display | Model Number:EPD_ED047TC1 | 540*960@4.7" | Gray scale : 16 Levels | Display area : 58.32*103.68mm | Display Driver : IT8951E |
| Physical Button | Multi-function button*1 , Reset Button*1 |
| RTC | BM8563 |
| Antenna | 2.4G 3D Antenna |
| PINS | G25, G32, G26, G33, G18, G19 |
| Battery | 1150mAh@3.7V |
| Working Temp | 0°C to 60°C |
| Net Weight | 86g |
| Gross Weight | 100g |
| Product Dimension | 118*66x*10mm |
| Packaging Dimension | 120*70x*14mm |
| Casing Material | Plastic ( PC ) |
Softwares
Arduino
Github
When using FactoryTest to load special characters (such as Chinese, Japanese), please put the font file into the TF card and name it as font.ttf. ttf file download address
Arduino API & Examples
Tools
When using FactoryTest to load special characters (such as Chinese, Japanese), please put the font file into the TF card root directory and name it as font.ttf. download ttf file
USB Driver
Click the link below to download the driver that matches the operating system. There are currently two driver chip versions (CP210X/CH9102). Please download the corresponding driver compressed package according to the version you are using. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure of the USB chip used by your device, you can install both drivers at the same time. During the installation process of
CH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is actually completed, just ignore it.)| Driver name | Applicable driver chip | Download link |
|---|---|---|
| CP210x_VCP_Windows | CP2104 | Download |
| CP210x_VCP_MacOS | CP2104 | Download |
| CP210x_VCP_Linux | CP2104 | Download |
| CH9102_VCP_SER_Windows | CH9102 | Download |
| CH9102_VCP_SER_MacOS v1.7 | CH9102 | Download |
Port Selection on MacOS
On MacOS, there may be two available ports. When using them, please select the port named wchmodem.
Easyloader
- Windows
- MacOS
