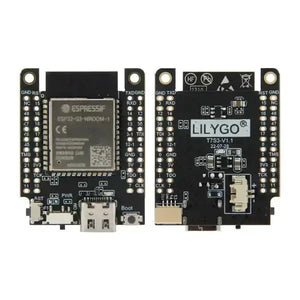

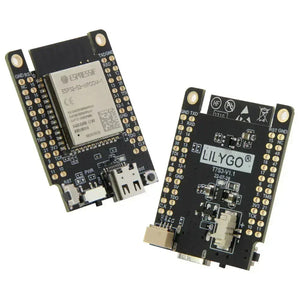

- T7 S3 is an ESP32 module based on ESP32-S3-WROOM-1, supports Wi-Fi Bluetooth 5, built-in Flash: 16MB PSRAM: 8MB.

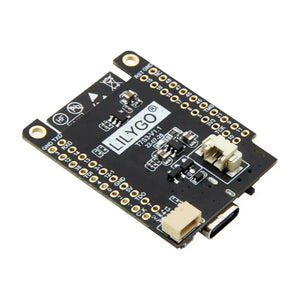

- Onboard 'USB 3.0' 'Reset Switch' 'Power (PWR) Switch' '4-PIN'
-
Support STEMMA QT/ Qwiic JST - SH 1.0mm
Specification
| MCU | ESP32-S3-WROOM-1 Xtensao 32-bit RISC-V MCU |
| Support | Wi-Fi, Bluetooth 5 + Bluetooth Mesh |
| Flash | 16MB |
| PSRAM | 8MB |
| Programming language | C/C++, MicroPython |
| Programming platform | Arduino-IDE, VS Code |
Technology Support
[Github]
If you need technical support please check the link to find more details.
Shipping List

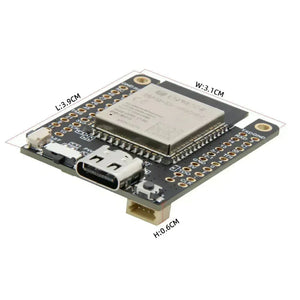

1. Size
2. Pin Diagram

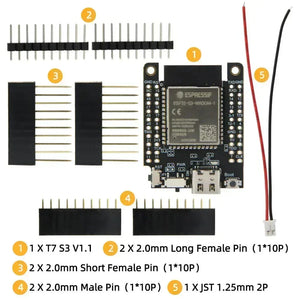

Shipping List
- 1 X T7 S3 V1.1
- 2 X 2.54mm Male Pin (1*10P)
- 2 X 2.54mm Long Female Pin (1*10P)
- 2 X 2.54mm Short Female Pin (1*10P)
- 1 X 1 X JST 1.25mm 2P
