T-SIMCAM is a high-performance development board based on PCI-E motherboard design, ideal for various embedded applications. With its powerful hardware configuration, it serves as the perfect platform for developing IoT and smart devices. Below are the key features of the product:
Note: This needs to be used with our PCIE-SIM module
- MCU: ESP32-S3 — Supports WIFI and Bluetooth 5.0, providing fast connectivity and low power consumption.
- Camera: OV2640 — Offers 2 megapixels of high-definition image capture, perfect for image recognition and video processing.
- mPCIe Slot — Supports LILYGO T-PCIE SIM module, expanding connectivity options and device capabilities.
- Microphone: I2S Digital Microphone — Delivers high-quality audio input, ideal for voice recognition and audio processing applications.
Benefits of T-SIMCAM
- High Performance: Powered by the ESP32-S3 MCU, suitable for various wireless communication scenarios.
- Easy Integration: Supports expansion modules, making it versatile for embedded applications.
- Versatile Design: Perfect for IoT devices, smart home systems, and voice-interactive projects.
Specifications
| MCU | ESP32-S3R8 |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5+ BT mesh |
| Programming Platform | Arduino-ide, VS Code |
| Onboard functions | Boot + Reset Button, TF Card |
| PSRAM | 8MB |
| FL ASH | 16MB |
| 0V2640-Camera module | |
| Pixels | 2 Million (UXGA 1622X1200) Voltage: 3.3V |
| Dual-core LX7 microprocessor |
| 12S Digital Microphone Low Power mode, high performance, and reliability. |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
What engineers have done with T-SIMCAM
Connecting with the server anywhere
Product Display
- Size
2. Pin Diagram

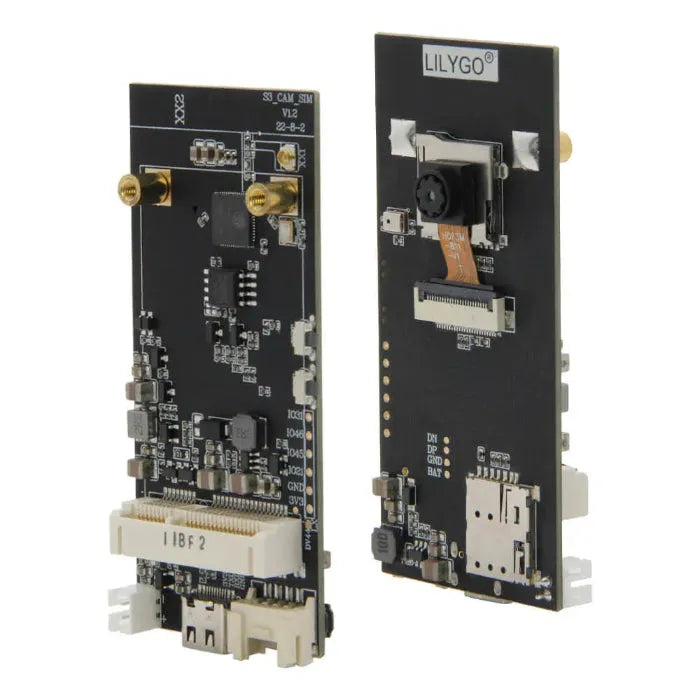

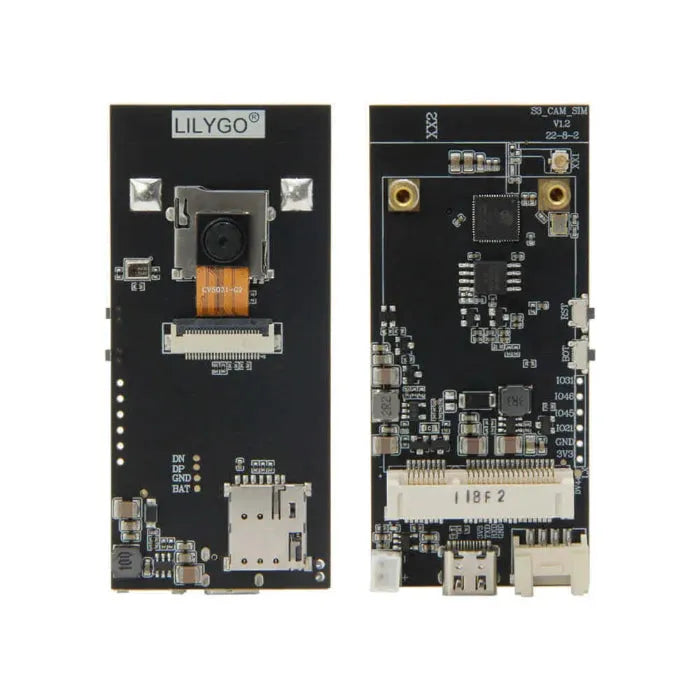

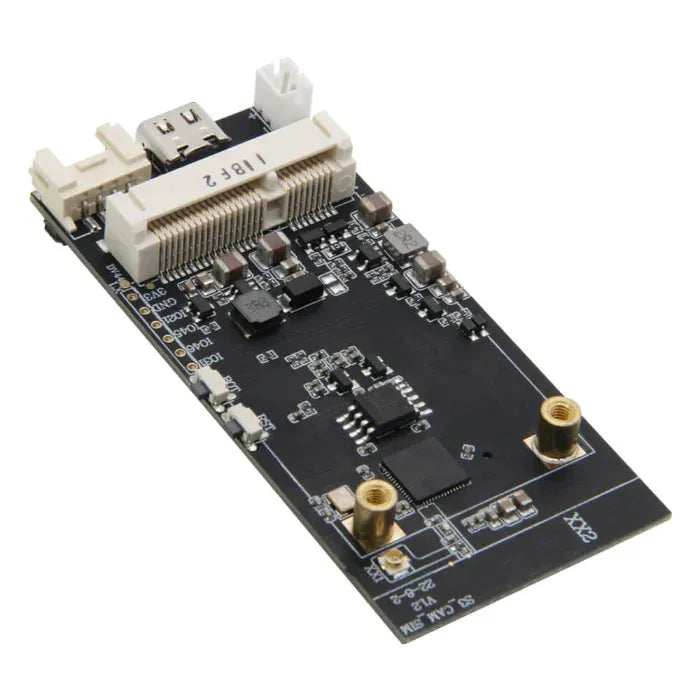

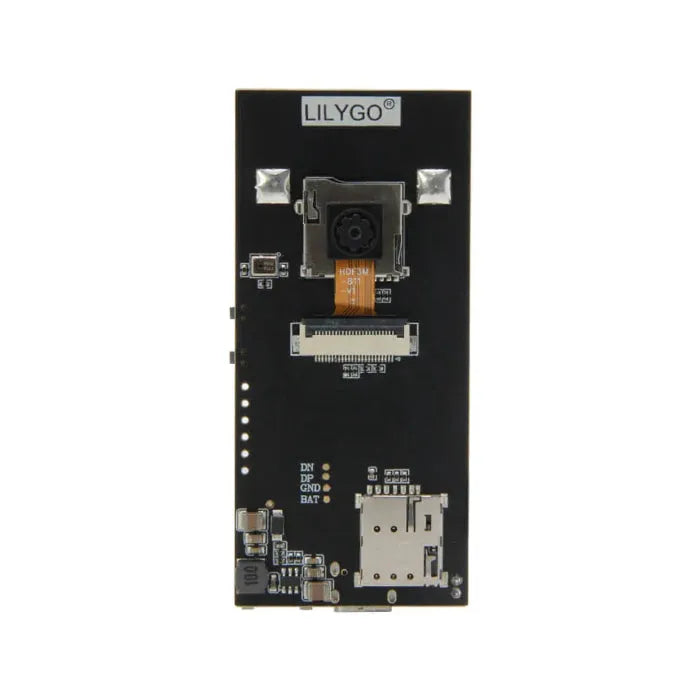

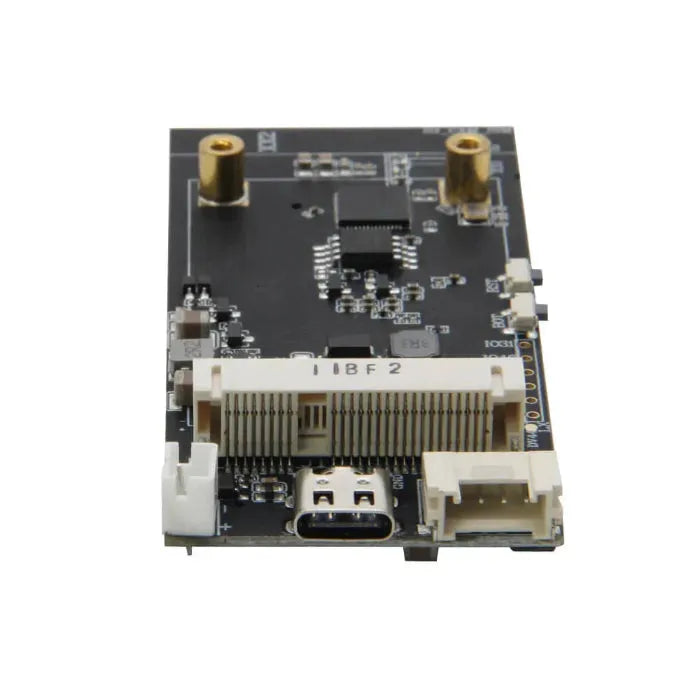

3. Appearance
Shipping List
Note: The shipping list is only for the control board.
