LILYGO T-SIM7600E-L1 4G LTE CAT4 USB Dongle Module

LILYGO T-SIM7600E-L1 4G LTE CAT4 USB Dongle Module

The LILYGO T-SIM7600E-L1 is a 4G LTE CAT4 USB Dongle Module with ESP32 integration, designed for IoT applications, remote communication, and industrial networking. Supporting LTE, GSM, GPS, and Glonass, it provides reliable global connectivity for smart devices and automation systems.

Key Features

  • 4G LTE CAT4 module (SIM7600E-L1C) for high-speed mobile communication.
  • ESP32 chip with Wi-Fi 802.11 b/g/n and Bluetooth v4.2.
  • USB Dongle Design for plug-and-play functionality.
  • Supports LTE, GSM, WCDMA, and GNSS (GPS & Glonass).
  • 18650 Battery Holder & Solar Charging Support for energy-efficient IoT applications.
  • Multiple Interfaces: UART, SPI, I2C, SDIO, I2S, CAN for diverse applications.

Specifications

Feature Details
MCU ESP32
LTE Module SIM7600E-L1C
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BR/EDR & BLE
Flash Memory 4MB
PSRAM 8MB
GNSS GPS, Glonass
Peripheral Interfaces I2C, SPI, UART, SDIO, I2S, CAN
Form Factor LCC, 87PIN
Dimensions 30.0 × 30.0 × 2.9mm
Frequency Bands LTE-FDD, LTE-TDD, GSM, WCDMA
Power Supply USB 5V input, 18650 battery support
Operating Regions Europe, Middle East, Africa, South Korea, Thailand

Pin Diagram

LILYGO T-SIM7600E
LILYGO T-SIM7600E-L1



Supported Frequency Bands

  • GSM: 850MHz, 900MHz, 1800MHz, 1900MHz
  • LTE-FDD: B1, B3, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
  • LTE-TDD: B38, B40, B41
  • WCDMA: B1, B5, B8

Applications

  • IoT & Smart Devices: 4G-enabled industrial automation and monitoring.
  • Remote Communication: Secure and stable long-distance data transmission.
  • GPS Tracking & Navigation: Integrated GNSS (GPS + Glonass) for real-time positioning.
  • Solar-Powered IoT: Low-power remote deployments with solar charging.

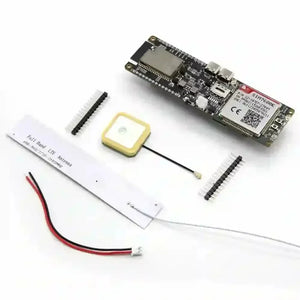

Includs

T-SIM7600E-L1C CH9102

  • 1 x T-SIM7600E-L1C CH9102F Module
  • 1 x LTE Antenna
  • 1 x GPS Antenna
  • 1 x Power Cable (JST 2-pin 2.0mm)
  • 2 x Pin Headers (2.54 Spacing)

T-SIM7600E CH9102

  • 1 x T-SIM7600E CH9102F Module
  • 1 x LTE Antenna
  • 1 x GPS Antenna
  • 1 x Power Cable (JST 2-pin 2.0mm)
  • 2 x Pin Headers (2.54 Spacing)

Refference [Github]
