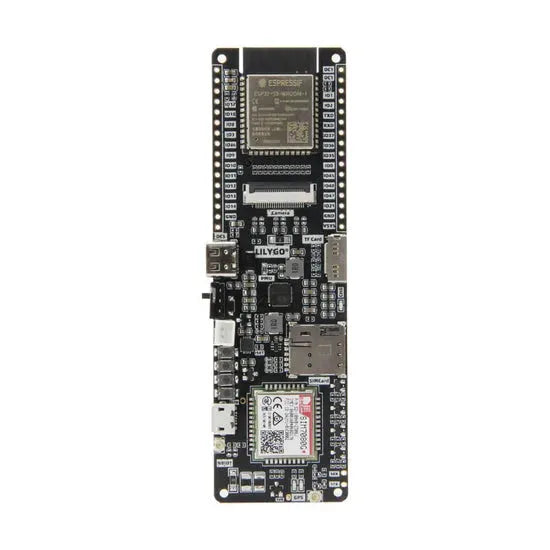

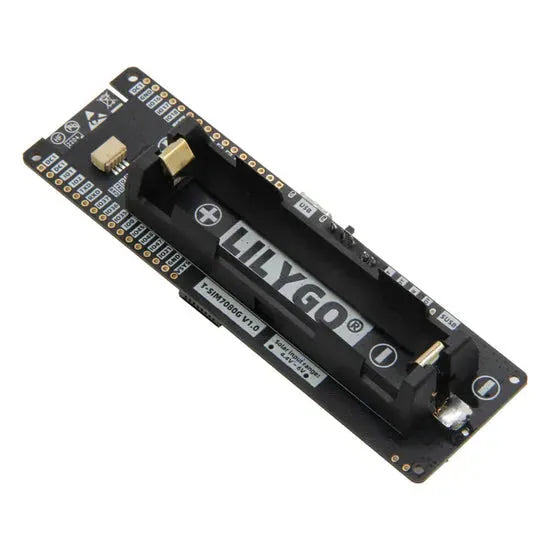

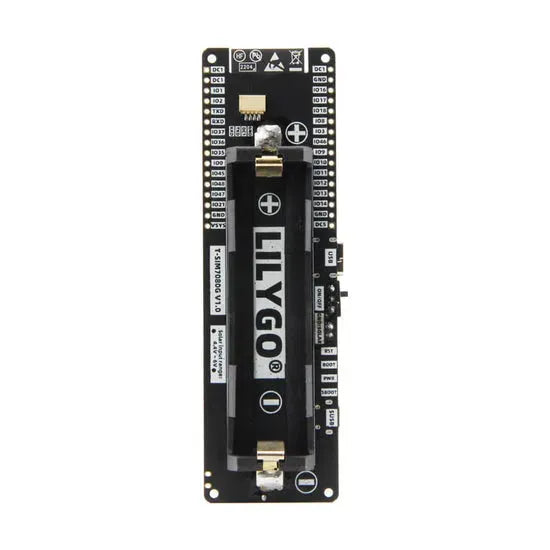

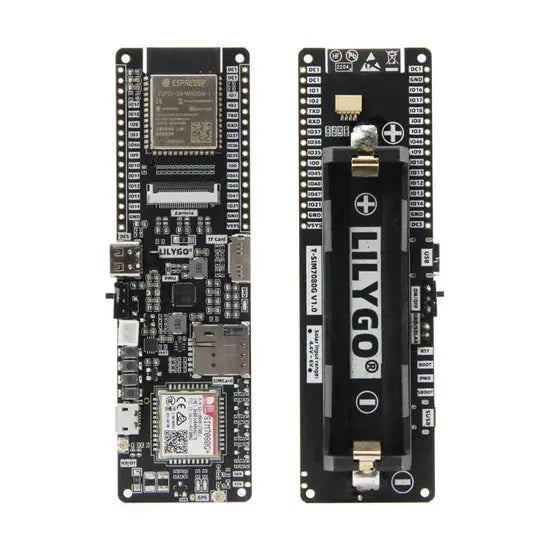

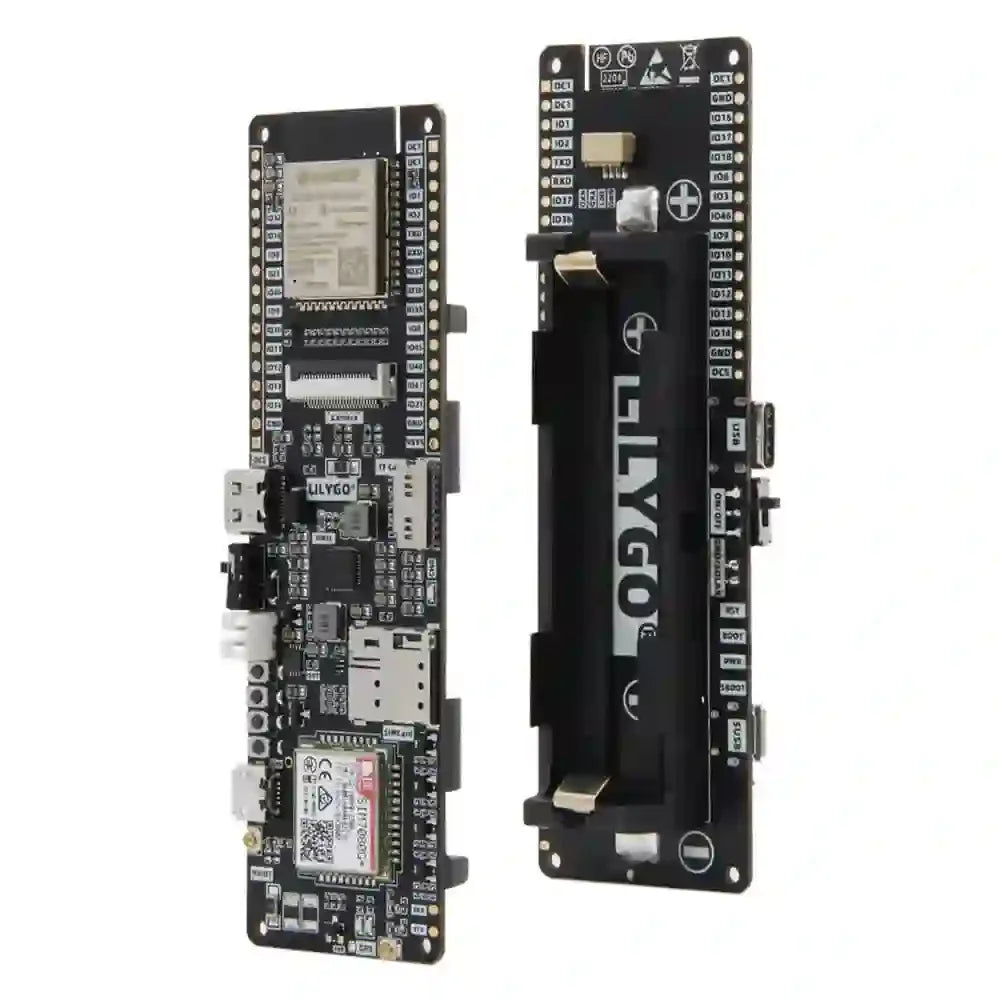

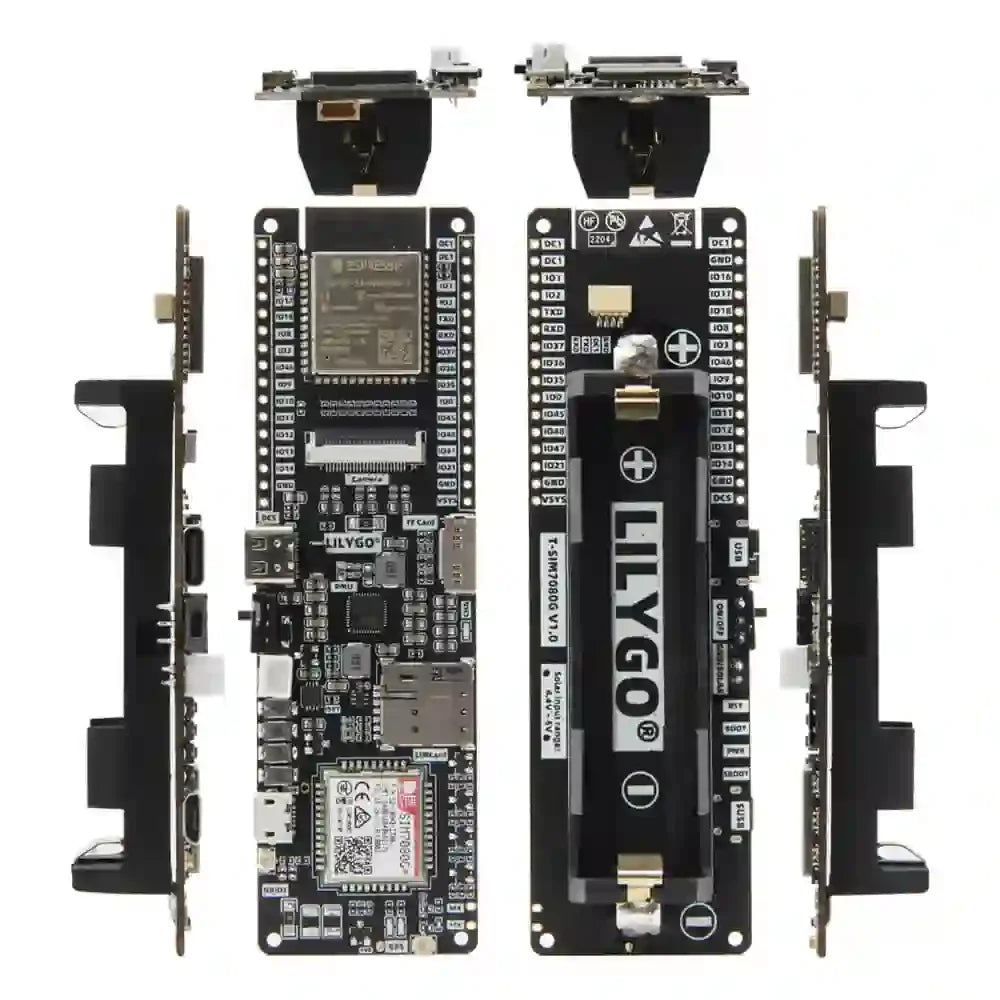

T-SIM7080G S3, a leading LILYGO T-SIM7080G S3 IoT development board, is equipped with a powerful ESP32-S3 microprocessor. This advanced dev board supports CAT-M and NB-IoT modules for robust cellular communication. This versatile LILYGO T-SIM7080G S3 also integrates LTE connectivity, GPS functionality, and a TF card slot for storage. This makes the T-SIM7080G S3 Dev board perfect for various applications requiring reliable long-distance communication, such as remote monitoring and IoT applications.
Key Features of the LILYGO T-SIM7080G S3
- Cellular Connectivity: Supports LTE and NB-IoT, ideal for applications requiring reliable long-range data transmission via the T-SIM7080G S3.
- ESP32-S3: A dual-core microprocessor with advanced features for efficient operation, making the LILYGO T-SIM7080G highly responsive.
- Wide Frequency Band Support: Works in multiple global frequency bands (including CAT-M and CAT-NB) to enhance connectivity.
- GPS Support: Built-in GPS for precise positioning and location-based services in various IoT applications.
- Memory: 16MB Flash and 8MB PSRAM for high performance and reliability of the LILYGO T-SIM7080G S3.
- Power Management: Powered by a 3.7V battery, with USB Type-C support for charging.
- Expansion: Includes a TF card slot, GPS antenna, and LTE antenna for enhanced functionality in the development process.
Specifications of the LILYGO T-SIM7080G S3
| Attribute | Details |
|---|---|
| MCU | ESP32-S3 |
| Cellular Module | SIM7080G |
| Clock Speed | 240MHz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | Wi-Fi: IEEE 802.11 b/g/n, Bluetooth 5, Bluetooth Mesh |
| Peripheral Interfaces | I2C, SPI, UART, SDIO, I2S, CAN |
| SIM Card | Nano SIM (2G) |
| GPS | GPS, GLONASS, BDS, and Galileo |
| USB | USB Type-C for power and communication |
| Power Supply | 3.4V to 4.2V (Battery or USB) |
| Size | 17.6 x 15.7 x 2.4 cm |
Pinout Diagram of the LILYGO T-SIM7080G S3:
- Pin Diagram: Includes detailed labeling for GPIOs, TF card, GPS, LTE, and other useful connections.
Applications of the T-SIM7080G S3:
- IoT Devices: Ideal for remote sensing, data collection, and control in various IoT applications using the LILYGO T-SIM7080G S3.
- Embedded Systems: Perfect for developing embedded solutions requiring cellular connectivity, leveraging the ESP32-S3.
- Vehicle Tracking and Fleet Management: Use the T-SIM7080G S3 with GPS and cellular connectivity for real-time location tracking.
- Remote Monitoring: Easily connect and manage IoT devices remotely using cellular networks with the LILYGO T-SIM7080G S3.
Additional Information on the LILYGO T-SIM7080G S3:
- Powering: Use with a 3.7V battery or USB Type-C for flexible power options.
- Programming: The T-SIM7080G S3 module is compatible with popular platforms like Arduino IDE and ESP-IDF for easy development.
Support about LILYGO T-SIM7080G S3
Exploring the Technological Evolution of ESP32 and ESP32 S3
Pin Diagram

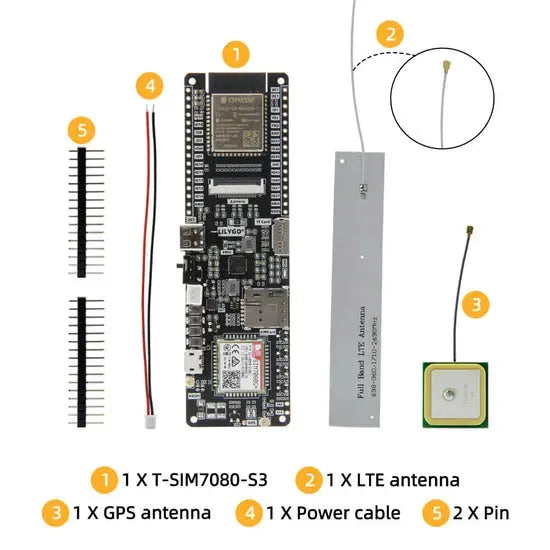

What's in the Box:
- 1 x T-SIM7080G S3 Module
- 1 x LTE Antenna
- 1 x GPS Antenna
- 1 x Power Cable
- 2 x Pin Header
