LILYGO T-QT Pro ESP32-S3 GC9A01 0.85 inch LCD module
The T-QT Pro ESP32-S3 is a powerful development board featuring the ESP32-S3FN4R2 Xtensa LX7 microprocessor, offering excellent performance and multiple wireless connectivity options, making it ideal for various embedded projects. It supports Wi-Fi 802.11 b/g/n and Bluetooth 5.0+BLE, providing stable wireless communication, particularly for IoT applications.
Key Features of the T-QT Pro ESP32S3
- MCU: ESP32-S3FN4R2 Xtensa LX7 microprocessor
- Wireless Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth 5.0+BLE
- Programming Platforms: Compatible with Arduino IDE and Micropython for easy development and quick setup.
- Memory: 4MB Flash, 2MB PSRAM, supporting higher capacity storage for enhanced data processing.
- Clock Frequency: 240MHz for optimal performance.
- Button Features: Includes button #1000#047, with customizable functions.
- Battery Support: Battery charging and discharging functionality, perfect for portable projects.
Featured Articles
Display & Graphics
- Display: 0.85-inch GC9107 TFT IPS LCD, with a 128x128 resolution, supporting a 4-wire SPI interface for clear visuals.
- Brightness: 260 cd/m², suitable for various lighting conditions.
External Connectivity
- Antenna Switching: Supports onboard and external antenna switching for flexible applications.
- USB Type-C: Convenient connection interface for ease of use.
Specification
| MCU | ESP32-S3FN4R2 Xtensa LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n, BL V5.0+BLE |
| Programming Platform | Arduino-ide, Micropython |
| Flash | 4M |
| PSRAM | 2M |
| Clock frequency | 240Mhz |
| Onboard functions | IO00+IO47 |
| Battery Detection | IO04 |
LCD: GC9107 TFT IPS LCD
| LCD | Resolution: 128*128px |
| Support | 4-Wire SPI interface |
| Display Area | 15.2064(H)*15.2064(V) |
| Display Colors | 262K |
| Brightness | 260 cd/m2 |
Sample Code for Reference [Github]
If you need technical support please check the link to find more details.
T-QT Pro
What's the difference between T-QT Pro
| Version | S3FN8 Basic | S3FN8 Shell Version | S3FN4R2 Basic | S3FN4R2 Welded PIN | S3FN4R2 Shell |
| Chip Model | ESP32-S3FN8 | ESP32-S3FN8 | ESP32-S3FN4R2 | ESP32-S3FN4R2 | ESP32-S3FN4R2 |
| Battery Charge | ✔ | ✔ | ✔ | ✔ | ✔ |
| Battery Discharge | ✔ | ✔ | ✔ | ✔ | ✔ |
| Flash | 8M | 4M | |||
| PSRAM | - | 2M | |||
| LCD Driver | GC9A01 | ||||
| Screen Size | 0.85 Inch LCD | ||||

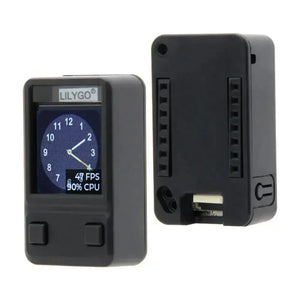

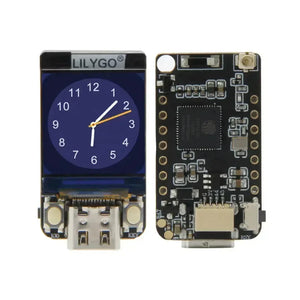

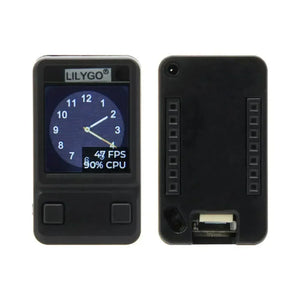

Product Display
Pin Diagram

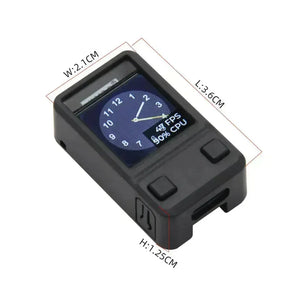

Size
Shipping List
