LILYGO T-Panel S3

Sale price €65,00

📦 Location of the warehouse: Shenzhen, China

Sytle: RS485 500kbp
Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4/5

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
H719-LILYGO-T-PENAL-2

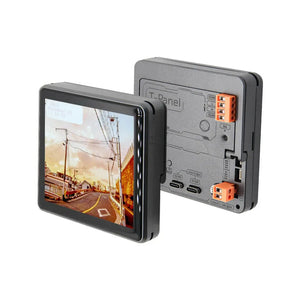

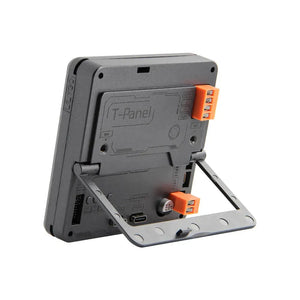

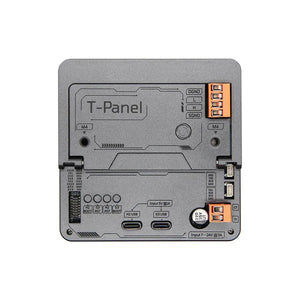

LILYGO T-Panel S3

The T-Panel S3 is a versatile development board featuring dual microcontrollers, an ESP32-S3 for high-performance processing and an ESP32-H2 for extended connectivity. It is designed for IoT applications, graphical displays, and industrial control, offering advanced features like RS485, CAN FD transceiver modules, and a 4-inch IPS LCD. Compatible with Arduino, PlatformIO-IDE, and Micropython, the T-Panel S3 provides an excellent platform for developers.



Features

  • Powerful Dual MCU: Equipped with an ESP32-S3 (16MB Flash, 8MB PSRAM) and an ESP32-H2 (4MB Flash) for enhanced functionality.
  • High-Resolution Display: Features a 4.0-inch IPS LCD (480x480) with SPI+RGB interface, supporting Arduino_GFX and LVGL for graphics rendering.
  • Wireless Connectivity: 2.4 GHz Wi-Fi + Bluetooth 5 (LE) and IEEE 802.15.4 support for diverse networking applications.
  • Modular Expansion: RS485 / CAN FD transceiver (optional) and an XL9535 GPIO expander.
  • Industrial Applications: Offers UART, RS485, and I2C communication, making it ideal for industrial automation and monitoring.


Package Contents

  • 1 x T-Panel S3
  • 1 x Female Pin Header (2X8 * 1.27mm)


Applications

  • IoT Devices & Smart Home Systems
  • Industrial Control Panels
  • Automated Display Systems
  • Sensor Data Visualization
  • Embedded GUI Development


Specifications

Component Specification
MCU1 ESP32-S3
Flash Memory 16MB
PSRAM 8MB
Wireless Connectivity 2.4 GHz Wi-Fi + Bluetooth 5 (LE)
MCU2 ESP32-H2
Flash Memory 4MB
Wireless Connectivity IEEE 802.15.4 + Bluetooth 5 (LE)
LCD Display 4.0-inch 480×480 IPS ST7701S
Interface SPI+RGB
Compatibility Arduino_GFX, LVGL
Onboard Functions QWiiCx2, TF Card Slot, Antenna
Physical Dimensions 100mm × 100mm × 50mm
RS485 / CAN FD (Optional) UART communication protocol
Expansion XL9535 GPIO expander, 16-bit I2C



Support

ℹ️Product information

A:
T-Panel S3

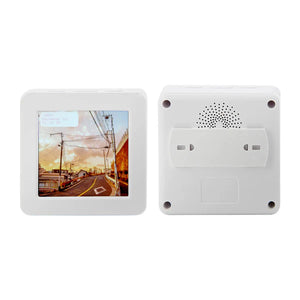

B: T-Panel-Lite
