LILYGO T-Lion ESP32-WROVER 0.96OLED 18650 Battery Holder

€15,00

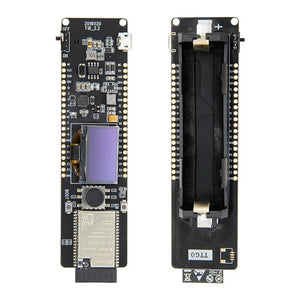

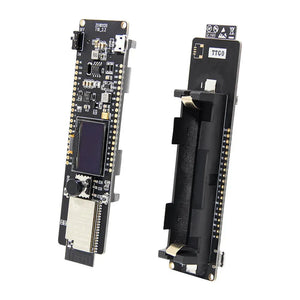

The LILYGO® T-Lion is a compact, feature-rich development board based on the ESP32-WROVER SoC. With 4MB Flash, 8MB PSRAM, 0.96" OLED display, integrated Wi-Fi and Bluetooth, and 18650 battery support, it's ideal for IoT, smart sensors, and portable embedded systems.



Key Features

  • ESP32-WROVER chipset with dual-core processor and low-power design

  • 4MB QSPI Flash and 8MB PSRAM for memory-intensive applications

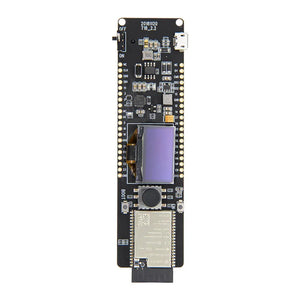

  • Integrated 0.96-inch OLED (SSD1306) display

  • Built-in Wi-Fi (802.11 b/g/n/e/i) and Bluetooth v4.2 BR/EDR + BLE

  • Five-way joystick buttons (OK, UP, DOWN, LEFT, RIGHT)

  • Reset and Boot buttons

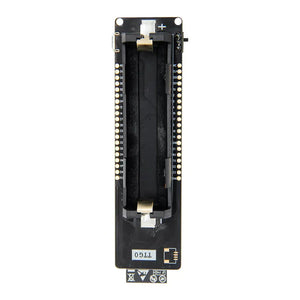

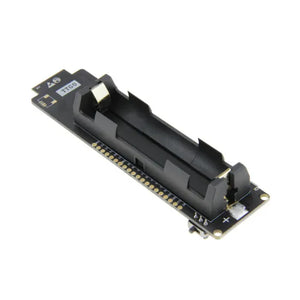

  • Battery switch and 18650 battery holder

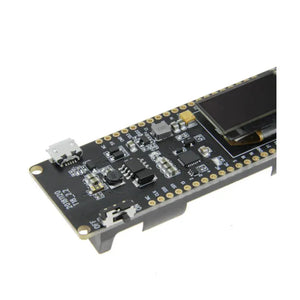

  • CH9102 USB to TTL for programming

  • Modular I/O: UART, SPI, I2C, I2S, SDIO, PWM, ADC, DAC, IR, LED/TV PWM

  • Power LED indicator

  • Operating voltage: 2.3V–3.6V

  • Charging via USB 5V/1A, 1000mA current

  • Sleep current: 470uA, ideal for battery-powered applications

  • Operating temperature: -40°C to +85°C

  • Dimensions: 108.51mm × 29.01mm

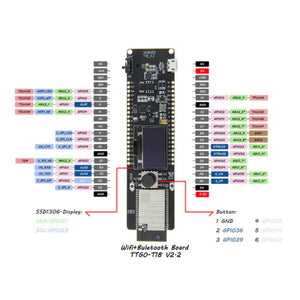

Pin Diagram (TTGO-T18 V2.2)

This board offers a wide range of I/O pins, clearly labeled in the pinout diagram below for quick development. Notable assignments:

  • SSD1306 Display (I2C):

    • SDA: GPIO21

    • SCL: GPIO22

  • Button GPIO Mapping:

    1. GND

    2. GPIO36

    3. GPIO39

    4. GPIO33

    5. GPIO34

    6. GPIO32

Refer to the diagram for full GPIO availability, ADC/TCH pins, UART ports, and power rails.


Wireless Connectivity

Wi-Fi

  • Certified: FCC, CE, TELEC, KCC, SRRC, NCC

  • Protocols: 802.11 b/g/n/e/i (up to 150 Mbps, A-MPDU, A-MSDU)

  • Frequency: 2.4–2.5GHz

  • Protection interval: 0.4 μs

  • Transmission power: 22 dBm

  • Range: Up to 300 meters

Bluetooth

  • Standard: Bluetooth v4.2 BR/EDR + BLE

  • Receiver Sensitivity: -98 dBm

  • Audio support: CVSD/SBC

  • Supports AFH, Class 1–3 emitters



Software Features

  • Wi-Fi Modes: Station / SoftAP / Station+SoftAP / P2P

  • Security: WPA, WPA2, WPA2-Enterprise, WPS

  • Encryption: AES, RSA, ECC, SHA

  • Firmware upgrade: via UART or OTA

  • Protocol support: IPv4, IPv6, TCP/UDP, HTTP, FTP, MQTT, SSL

  • Development: SDK and cloud support available

  • Configuration: AT commands + mobile/cloud app support

  • OS: FreeRTOS



Applications

  • Battery-powered IoT terminals

  • Smart sensing and logging systems

  • Environmental monitoring

  • Wireless display and control units

  • Portable embedded development platforms



Includes

  • 1 × LILYGO® T-Lion ESP32-WROVER Board

  • 1 × 18650 Battery Holder (attached or included)

  • 1 × USB to TTL (CH9102 interface)



Reference

T-Lion / T-Controller

ESP32-WROVER
