Description

Note [For orange button]:

Since the edge of the button is orange, the color of the light shown in RGB is recommended to use white light, if the corresponding RGB color cannot be displayed, please purchase carefully.

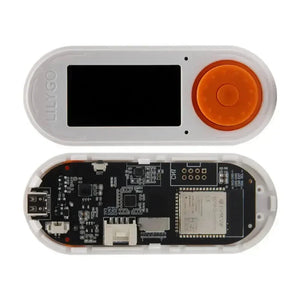

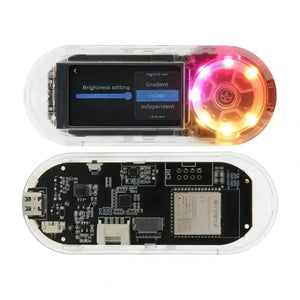

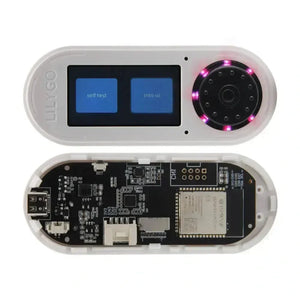

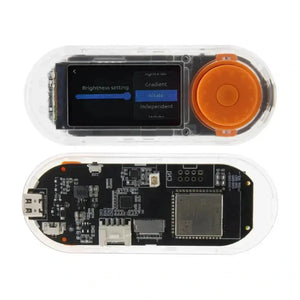

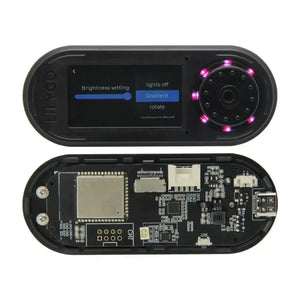

T-Embed is an IoT-embedded panel designed for programmable development. ABS+PC material (optional translucent version) panel + circuit board integrated standardized design, providing product 3D drawings and reference design drawings. Easy design to embed on your product.

Specifications

MCU	ESP32-S3
Material	ABS
Wireless	Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth mesh

1.9-inch IPS color TFT LCD

Model	ST7789
Brightness	350(TYP)Cd/m2
Resolution	170(H)RGBx 320(V)

Rotary encoder + confirmation key in one

Microphone	X 2
NUMBERS OF DETENT	24
PULSE/ROTATION	12 PULSE/360°
Speaker	8 ohm @ 1W
Ring RGB light	x 7
GROVER	x 1

2.54 x 8pin GPIO interface

TF card holder

Type-C USB

Battery charge and discharge protection circuit@1.25mm battery interface

[Github]

If you need technical support please check the link to find more details.

T-Embed

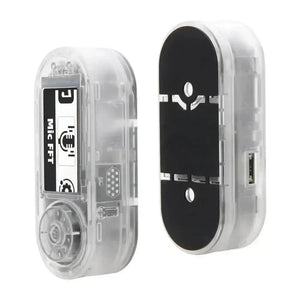

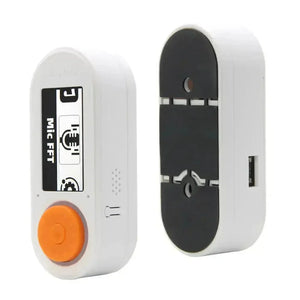

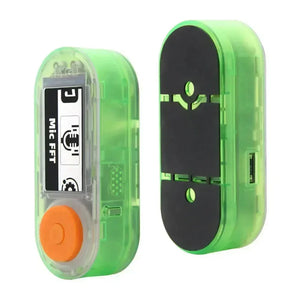

T-Embed Shell

Product Display

Board Size

Pin Diagram

Shipping List

Only T-Embed

Note: Batteries are not included in the list

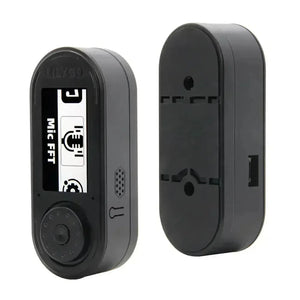

T-Embed With Shell

1 X T-embed
1 X IDC3 Box Header Connector 2.54 ( 2*4P)
1 X 2.0mm Male PIN (1*5P)
1 X JST1.25mm2P
1 X Box Header Cable 2.54 8pin 10cm
1 X 2.0mm Male PIN (1*6P)

Note: Batteries are not included in the list
