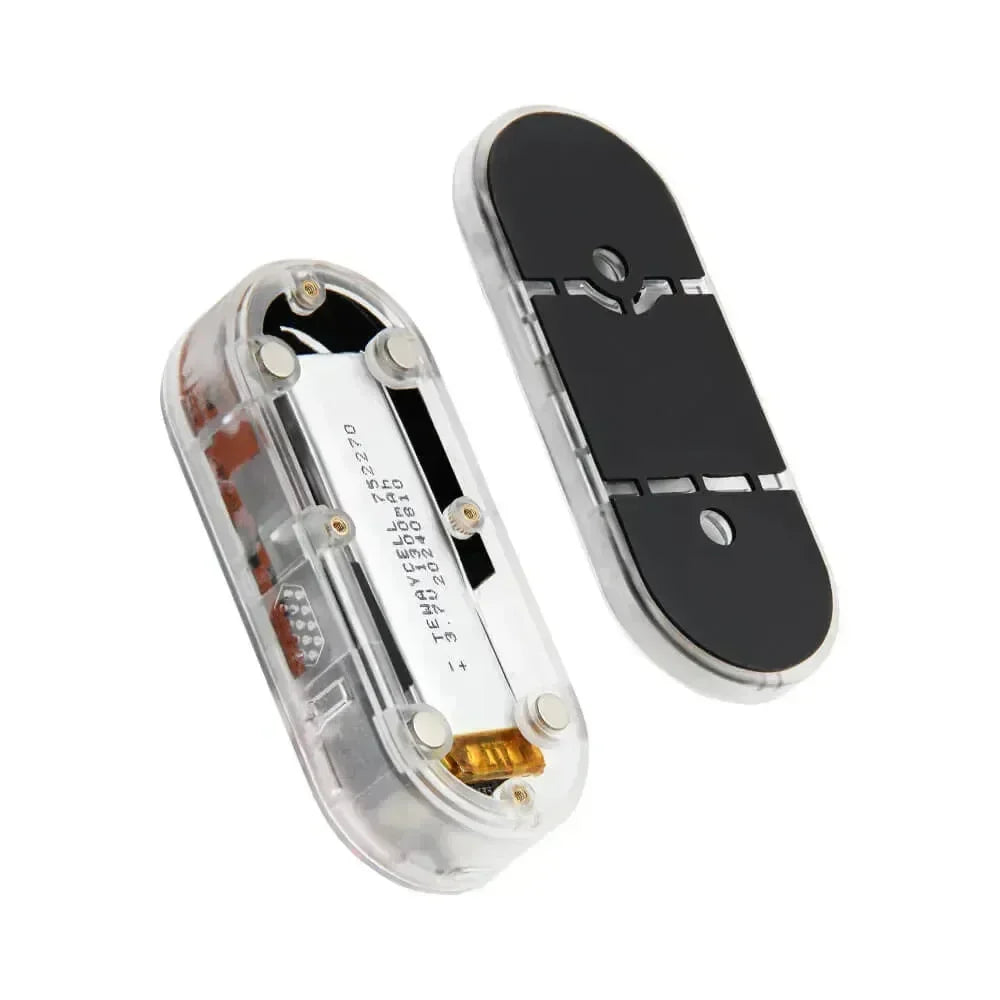

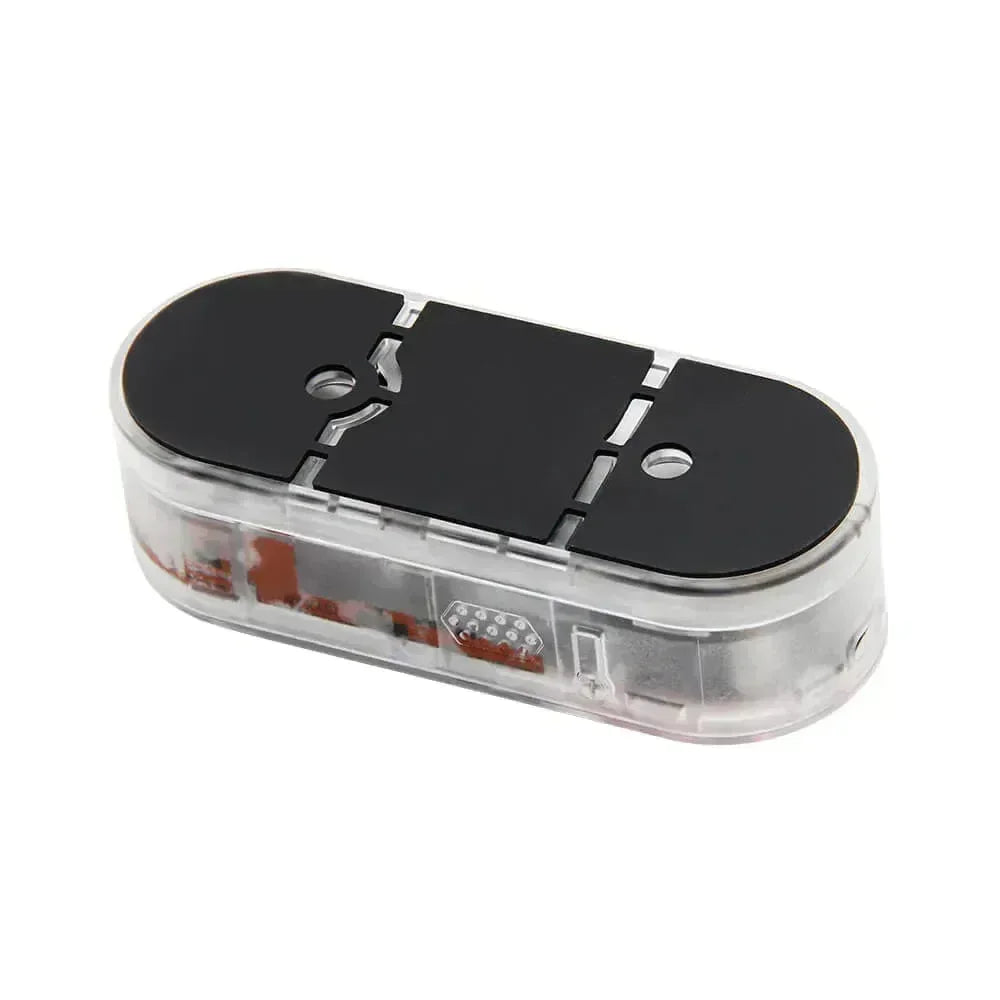

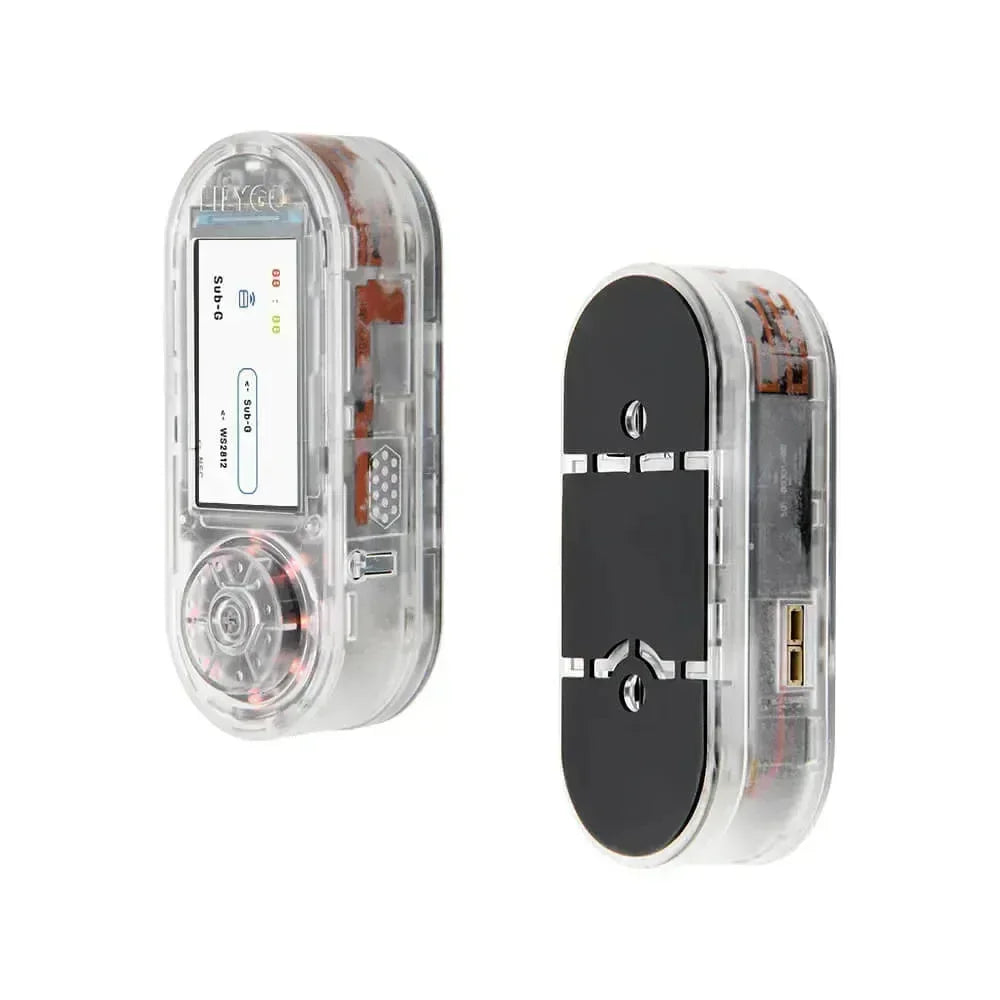

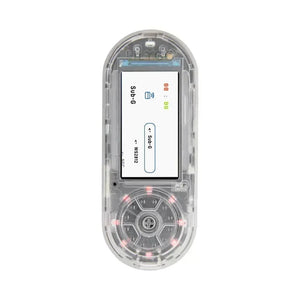

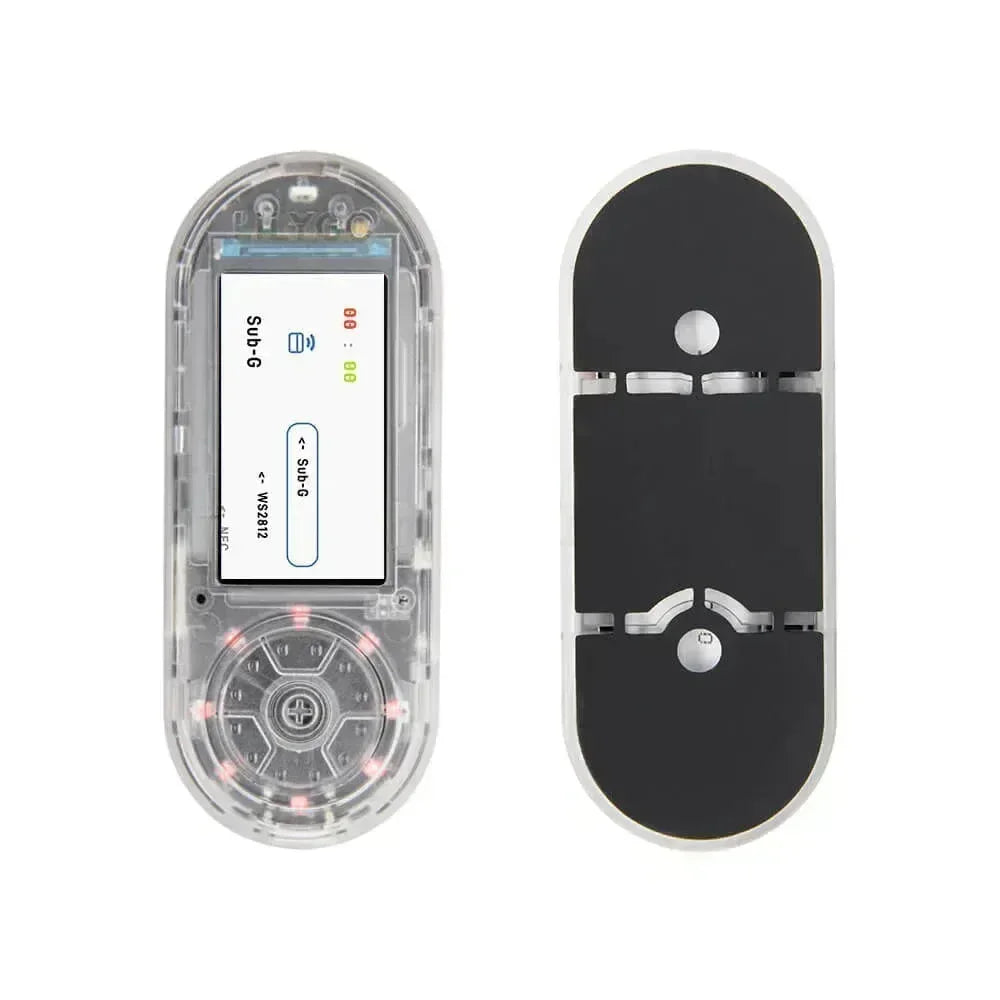

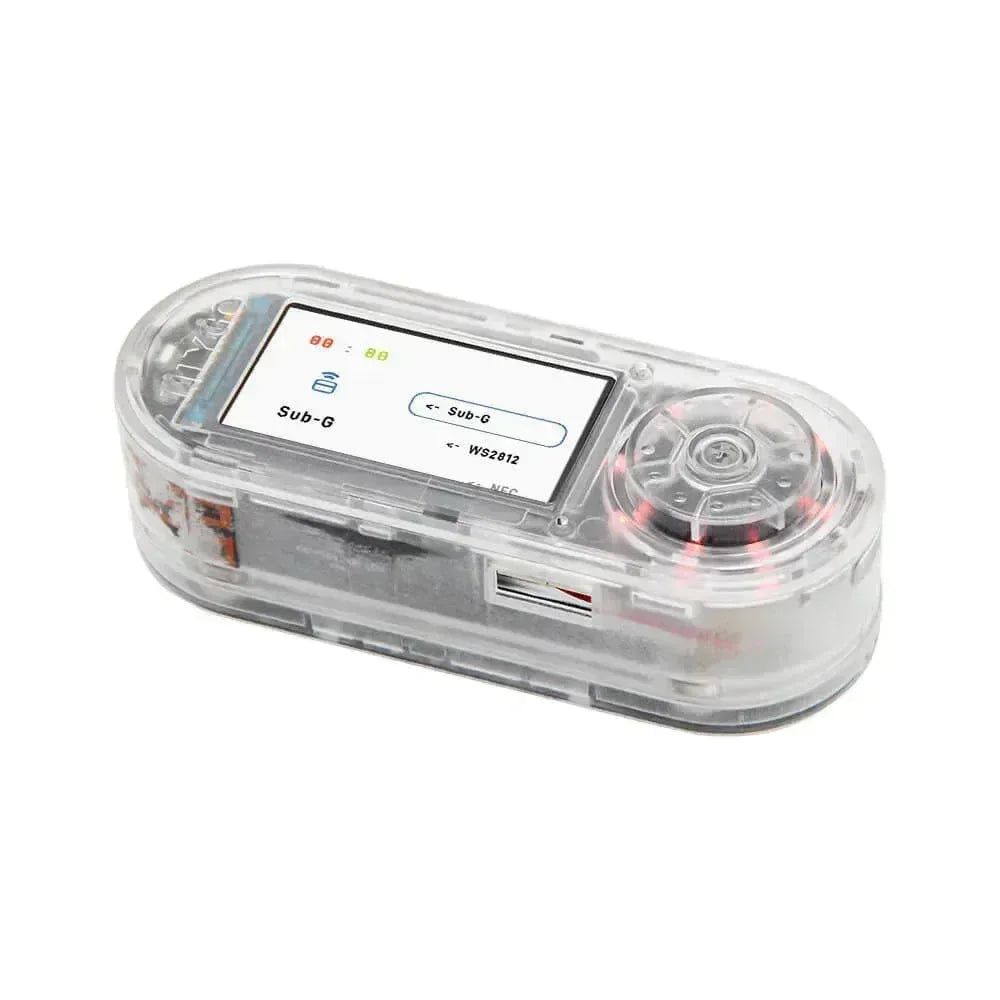

The LILYGO T-Embed CC1101 is a powerful embedded development board, particularly suited for Sub-GHz wireless communication applications. It features an integrated CC1101 transceiver and radio antenna, supporting multiple frequency bands (300-348 MHz, 387-464 MHz, and 779-928 MHz). Additionally, it can work with external wireless modules, making it ideal for scenarios that require low-power, long-range communication, such as IoT, wireless sensor networks, and remote control systems.
T-Embed CC1101 PN532 NFC/RFID I2C transceiver module
Built-in Sub-GHz module based on a CC1101 transceiver and a radio antenna (the maximum range is 50 meters).
RFID: 125/134KHz (BF) and 13.56MHz (HF)
Both the CC1101 chip and the antenna are designed to operate at frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.
Specifications
| MCU | ESP32-S3 Dual-core LX7 microprocessor |
| Flash | 16MB |
| Programming Platform | Arduino-ide、 ESP-IDF |
| RSRAM | 8MB |
| Onboard functions | Reset + Boot Button, IR Transmit & Receive |
| Bat voltage detection | IO04 |
| Wireless | Wi-Fi 802.11 b/g/n，BLE 5 |
| 1.9 inch ST7789V IPS color TFT LCD |
| Interface | SPI |
| Drive Chip | ST7789V |
| Resolution | 170(H)RGBx 320(V) |
