The T-Display S3 ESP32S3 is an advanced display screen module featuring a 1.91-inch diagonal AMOLED screen. Based on our previous S3 module, the T-Display S3 ESP32S3 boasts several upgrades, including a transition from LCD to a vibrant AMOLED display, enhanced resolution, and an improved 3D antenna for better signal performance.
Using the SPI interface, the T-Display S3 ESP32S3 is compatible with any microcontroller that supports SPI communication. Additionally, it comes equipped with a built-in battery management system, offering a convenient and efficient solution for portable applications. Its compact size and low power consumption make the T-Display S3 ESP32S3 ideal for wearable devices and IoT projects, allowing for seamless integration into various applications.
Many engineers have shared their innovative uses of the T-Display S3 ESP32S3, including creating classic game consoles, monitors, timers, and more. The versatility of the T-Display S3 ESP32S3 enables you to bring your ideas to life and explore a wide range of creative possibilities.
Specifications of the T-Display S3 ESP32S3
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformIO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat Voltage Detection | IO04 |
| Onboard functions | Boot (IO00) + Reset + IO21 Button |
Featured Articles
1.91 inch RM67162 IPS AMOLED
| Resolution | 240 X RGB X 536(H) |
| Interface | QSPI |
| Active Area | 19.8*44.22mm |
| Driver IC | RM67162 |
| Viewing Angle | IPS Full View Angle |
Version Upgrade
We've upgraded the base version (no touch functionality), check out the comparison!
Some of the buttons have changed positions, choose the right version according to your preference.

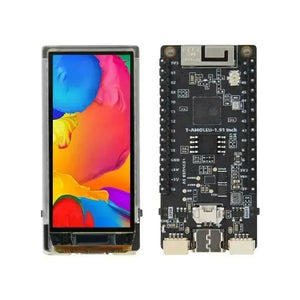

V1.0 Version

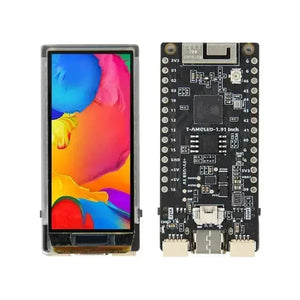

V2.0 Version
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size
Pin Diagram
Basic Version
Touch Version
