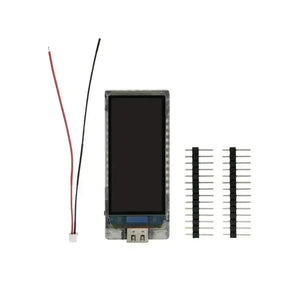

LILYGO T-Display S3 AMOLED V1.0, 1.91-inch no-touch versions available
The LILYGO T-Display S3 AMOLED is a cutting-edge display screen module featuring a 1.91-inch diagonal AMOLED screen. Building on our previous S3 module, the LILYGO T-Display S3 AMOLED offers a significant upgrade in both screen technology and resolution, transitioning from LCD to high-quality AMOLED. Additionally, the antenna has been enhanced to a 3D antenna for improved performance.
This display module utilizes an SPI interface, making it compatible with any microcontroller that supports SPI communication. The LILYGO T-Display S3 AMOLED also comes with a built-in battery management system, making it an ideal solution for portable and battery-powered applications. Its compact size and low power consumption make it perfect for wearable devices, IoT projects, and other space-constrained uses.
Many engineers have shared their creative uses of the LILYGO T-Display S3 AMOLED, including turning it into a classic game console, a monitor, a timer, and more. The versatility of the LILYGO T-Display S3 AMOLED allows you to bring a wide range of ideas to life, whether for personal projects or professional prototypes.
Specifications of the LILYGO T-Display S3 AMOLED
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformIO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat Voltage Detection | IO04 |
| Onboard functions | Boot (IO00) + Reset + IO21 Button |
Featured Articles
1.91 inch RM67162 IPS AMOLED
| Resolution | 240 X RGB X 536(H) |
| Interface | QSPI |
| Active Area | 19.8*44.22mm |
| Driver IC | RM67162 |
| Viewing Angle | IPS Full View Angle |
Version Upgrade
Some of the buttons have changed positions, choose the right version according to your preference.
V1.0 Version
V2.0 Version
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size
Pin Diagram
Basic Version
Touch Version
