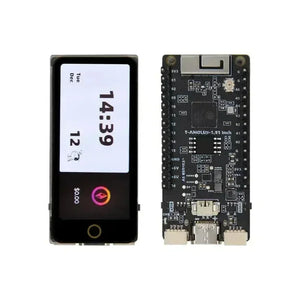

The T-Display S3 AMOLED is an advanced display screen module featuring a 1.91-inch diagonal AMOLED screen. Building on our previous S3 module, the T-Display S3 AMOLED brings significant improvements, upgrading the screen technology from LCD to vibrant AMOLED and enhancing the antenna to a 3D antenna for better performance.
The T-Display S3 AMOLED utilizes an SPI interface, making it compatible with any microcontroller that supports SPI communication. This display module also comes equipped with a built-in battery management system, offering a convenient and efficient solution for portable applications. Its compact size and low power consumption make the T-Display S3 AMOLED ideal for wearable devices and IoT projects, ensuring a versatile solution for various applications.
Engineers have shared creative uses for the T-Display S3 AMOLED, including transforming it into a classic game console, a monitor, a timer, and much more. The T-Display S3 AMOLED offers endless possibilities for your projects, making it an excellent choice for turning your ideas into reality.
Specifications of the T-Display S3 AMOLED
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformIO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat Voltage Detection | IO04 |
| Onboard functions | Boot (IO00) + Reset + IO21 Button |
Featured Articles
1.91 inch RM67162 IPS AMOLED:
| Resolution | 240 X RGB X 536(H) |
| Interface | QSPI |
| Active Area | 19.8*44.22mm |
| Driver IC | RM67162 |
| Viewing Angle | IPS Full View Angle |
Version Upgrade
We've upgraded the base version (no touch functionality), check out the comparison!
Some of the buttons have changed positions, choose the right version according to your preference.
V1.0 Version
V2.0 Version
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size
Pin Diagram
Basic Version
Touch Version
