LILYGO T-Display P4 SX1262 830-945MHz (Pre-sale, back in 2 weeks)
Pre-order
Free Shipping from 30€ in Germany, 50€ in the EU!
- Pre-orders will be shipped in 5 working days.
- EU & US Countries Delivery Time: 10 working days.
- Other Countries Delivery Time: 15 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
LILYGO T-Display P4 SX1262 830-945MHz (Pre-sale, back in 2 weeks)

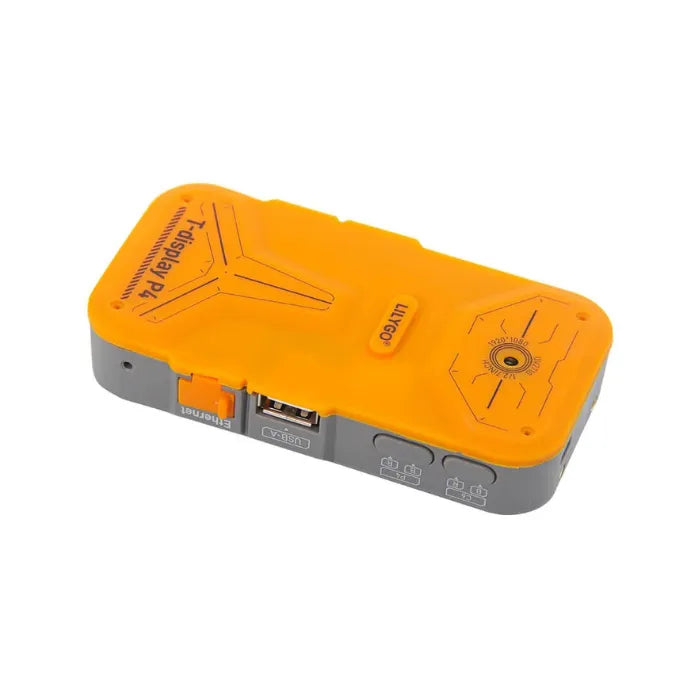

🚀 Meet the LILYGO T-Display P4 — a next‑gen, dual‑MCU handheld built on ESP32‑P4 and ESP32‑C6, designed for IoT, AI/ML, computer vision, edge computing, and wireless connectivity. Available in AMOLED (rear camera) and TFT punch‑hole (under‑screen camera) versions, it combines Wi‑Fi 6, Bluetooth LE, LoRa SX1262, MIPI CSI/DSI, JPEG/H.264 codecs, PSRAM, and rich I/O expansion for rapid prototyping and production. Perfect for smart home, industrial HMI, robotics, wearables, portable dashboards, Meshtastic, and sensor fusion projects 💡🔧📶.
🎯 Highlights: 4.1" AMOLED / 4.05" TFT touch display options, 2MP MIPI camera (OV2710: 1080p@30 / 720p@60), onboard speaker + microphone, IMU (ICM20948) for motion tracking, RTC, Ethernet, and keyboard expansion. With ESP‑IDF support and VS Code tooling, it’s a developer‑friendly platform for UI dashboards, vision AI, voice applications, MIPI pipelines, and low‑power IoT 🚀🛠️📷.

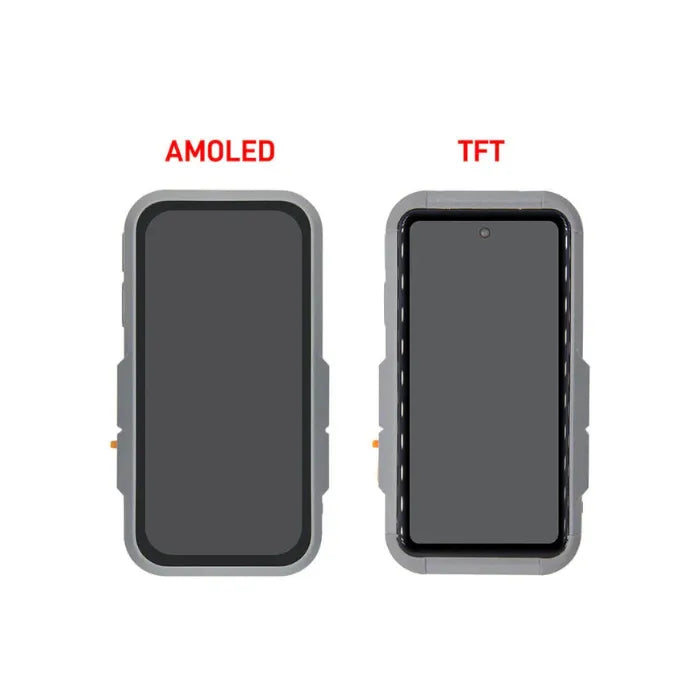

⚙️ Based on the ESP32-P4 platform, available in AMOLED (rear camera) and TFT punch-hole display (under-screen camera) versions.

Specifications of LILYGO T-Display P4
| MCU1 | ESP32-P4, RISC-V Dual-core 360MHz + Single 40MHz ⚡ |
| Features |
Powerful image and voice processing 🎙️🖼️ JPEG Codec, ISP, PPA, H.264 Encoder, MIPI CSI, MIPI DSI 📷🧠 |
| Flash | 16MB 📦 |
| PSRAM | 32MB 🧠 |
| Platform | ESP-IDF, VS Code 💻 |

| MCU2 | ESP32-C6 (Wi‑Fi 6 + BLE) 📶 |
| Features | 2.4 GHz Wi‑Fi 6 (802.11ax), Bluetooth 5 (LE) 🔗 |
| Onboard function | Capacitive touch screen + TFT/AMOLED optional ✨ I2S Speaker & Microphone & Motor + RTC + Ethernet 🔊🎤⏱️🌐 Expandable I/O supports external Keyboard Board ⌨️ |
| LoRa Module | SX1262 (IoT long‑range) 📡 |
| 2MP MIPI Camera | OV2710 / 1080p@30 fps, 720p@60 fps 📷 |
| Charge Management | LGs4056H 🔋 |
| I2C Battery Gauge | BQ27220 🔌 |
| 12C GPIO Expansion IC | XL9535 / 24‑pin CMOS IC 16‑bit GPIO 🧩 |
| 9‑Axis MEMS IMU | ICM20948 / Motion Tracking + DMP 🛰️ |
| Size | 63 × 109 × 22 mm 📏 |
| USB Charging | 5V, 500mA ⚡ |
Tech Support of LILYGO T-Display P4
|
ℹ️Product information 💻Technical support |
Firmware about LILYGO T-Display P4
| firmware | description |
|---|---|
| t_display_p4_lvgl_9_ui | factory program |
| t_display_p4_keyboard_lvgl_9_ui | keyboard expansion board factory program |
| esp32c6_at | esp32c6-at factory program |
| esp32c6_slave_esp_hosted_mcu_network_adapter | |
| t_display_p4_xiaozhi |
PinOverview of LILYGO T-Display P4
t_display_p4_config.h
t_display_p4_keyboard_config.h



Use cases & keywords
- 📊 Edge AI dashboards, computer vision (MIPI CSI), image/voice processing, H.264/JPEG pipelines
- 🏠 Smart home controllers, Home Assistant panels, automation, sensor fusion (IMU + camera + audio)
- 🤖 Robotics HMI, motion tracking, BLE peripherals, keyboard expansion, portable terminals
- 🌐 IoT & LoRa (SX1262), Meshtastic, long‑range telemetry, field data logging
- 🛠️ Developer platform: ESP‑IDF, VS Code, RISC‑V, GPIO expansion, RTC, Ethernet
Recommended Articles about LILYGO T-Display P4
LILYGO T-Display P4: A Maker’s Pocket Lab

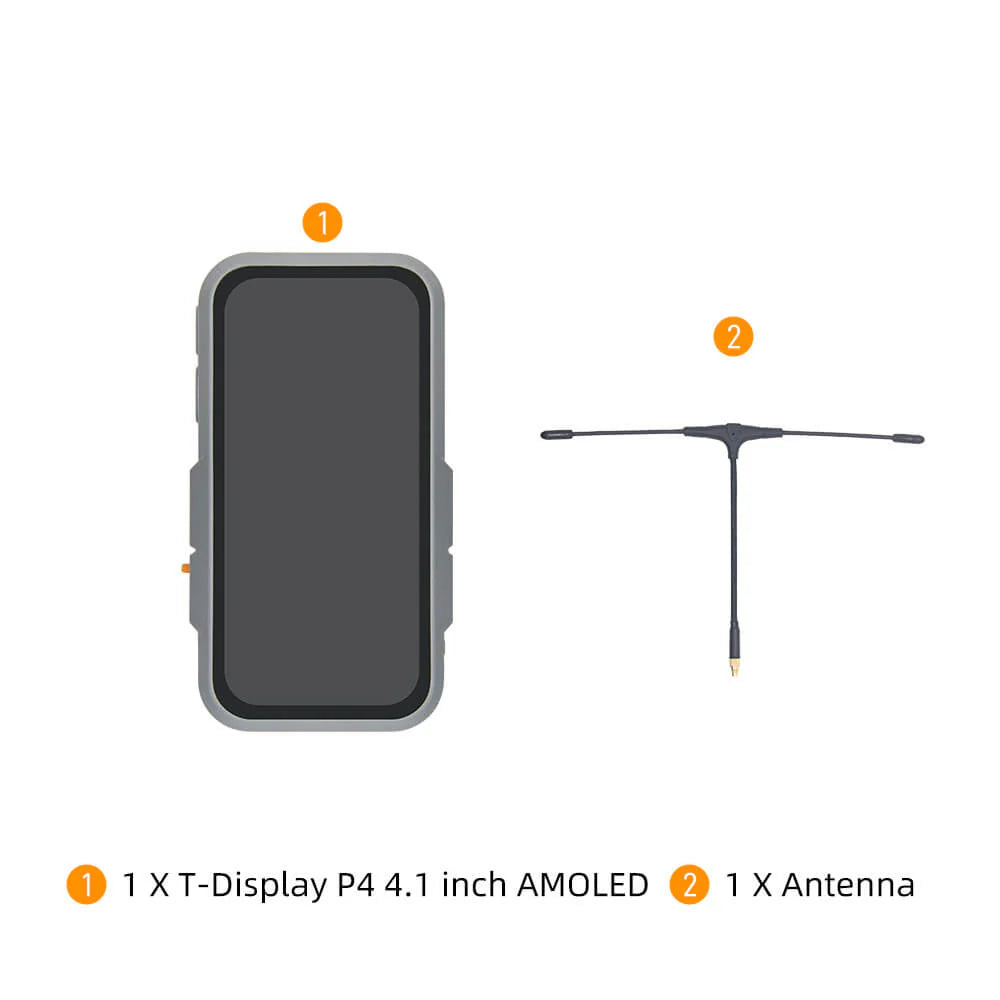

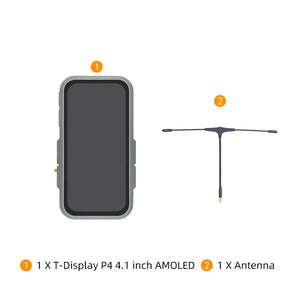

What's In The Box
4.1 Inch AMOLED [H753] Version

4.05 Inch TFT [H753-01] Version
