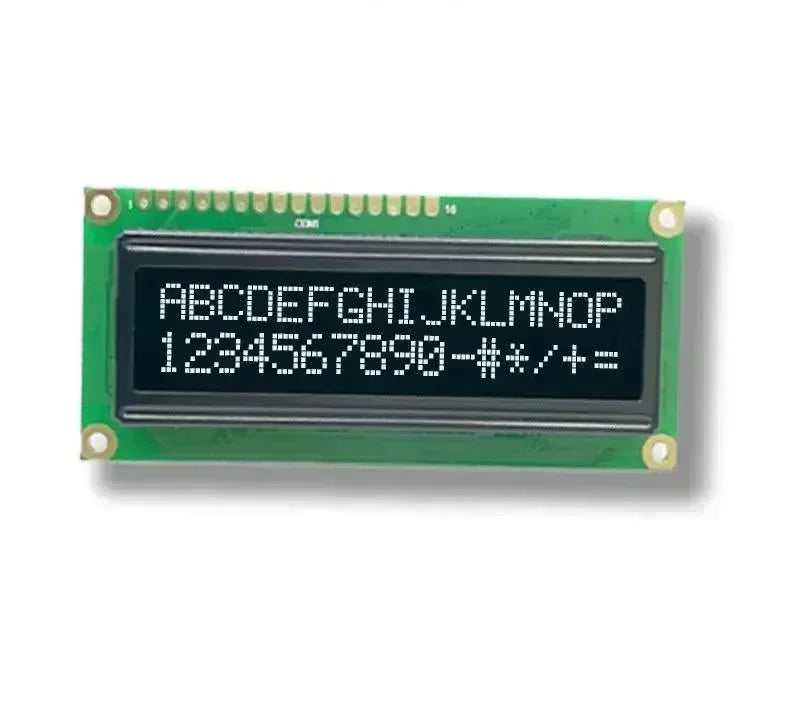

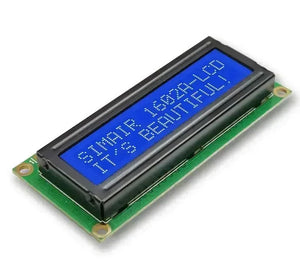

1602 LCD Display
Features
|
Model
|
1602A1
|
||||
|
Model size
|
80(L)x36(W)x12(H)mm
|
||||
|
View Area
|
6800 8-bit/4-bit Parallel
|
||||
|
View Direction
|
6 O'clock
|
||||
|
LCD Mode
|
STN(Blue/yellow-green)、FSTN（Gray)
|
||||
|
Operating voltage
|
5V/3.3V
|
||||
|
Driver IC
|
SPLC780D or Equivalent
|
||||
|
Net weight（g）
|
50
|
||||
|
Driving Method
|
1/16 DUTY,1/5 BIAS
|
||||
|
Number of character
|
16 characters x 2 lines
|
||||
|
Operating Temperature
|
-20℃ ~ +70℃
|
||||
|
Storage Temperature
|
-30℃ ~ +80℃
|
||||
External Dimensions
Pin Description
