DFRobot LattePanda Sigma x86 Windows Linux Single Board Computer Server 32GB RAM 500GB SSD WiFi 6E
Pre-order
Free Shipping from 30€ in Germany, 50€ in the EU!
- Pre-orders will be shipped in 5 working days.
- EU & US Countries Delivery Time: 10 working days.
- Other Countries Delivery Time: 15 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
DFRobot LattePanda Sigma x86 Windows Linux Single Board Computer Server 32GB RAM 500GB SSD WiFi 6E
LattePanda Sigma is a hackable x86 Windows / Linux single board server with mighty power. It features an Intel Core i5-1340P processor with Intel Iris Xe Graphics, and up to 32GB Dual-Channel LPDDR5 memory. This powerful single board computer can be used as a home server, streaming server, game server, IoT, AI Inference, edge computing, and more.
Ultimate Performance
LattePanda Sigma is equipped with the 13th Intel Core i5-1340P processor, which features 12 cores and 16 threads with the turbo frequency up to 4.6GHz, offering ultimate performance and multitasking capabilities.
This single board computer features Intel Iris Xe Graphics with 80 execution units (EUs) capable of reaching dynamic frequency up to 1.4GHz, delivering superior graphics performance and rendering quality.
Lightning-Fast Memory
LattePanda Sigma boasts up to 32GB of dual-channel LPDDR5-6000 memory, with an impressive bandwidth speed of up to 102.4GB/s - doubling the speed of the previous generation.
_0x0.png.webp "LattePanda Sigma Lightning-Fast Memory")
Rapid Chill with Silent Whisper
Thanks to its robust cooling capabilities, the LattePanda Sigma's processor consistently maintains a high-performance 44W TDP (Thermal Design Power), delivering stable and sustained performance without degradation.
Complementing this, the cooling fan's silent operation at just 35 decibels in idle mode provides a tranquil environment.
Perfect Balance Between Performance and Energy
The Intel Core i5-1340P processor delivers high energy efficiency with impressive performance. For example: It achieves comparable performance to the Intel Core i9-9900K but with half the power consumption.
This efficient energy consumption does not sacrifice computing power, offering an exemplary balance ideal for diverse applications.
Compact Size, Mighty Power

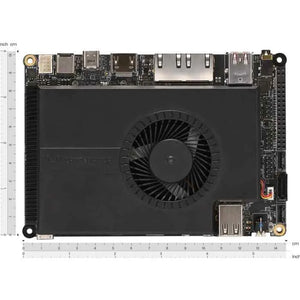

This mini PC is just slightly larger than a traditional mouse, with dimensions of 102mm*146mm. Its compact size allows for easy portability or convenient integration in the devices with limited spaces.
Quad 4K Displays
LattePanda Sigma allows for seamless multitasking with its ability to simultaneously connect up to four 4K screens. This feature enables users to effortlessly handle multiple tasks.
Rich Interfaces
LattePanda Sigma boasts an array of interfaces, including USB, HDMI, RS232, GPIO, Ethernet, eDP, and more, accommodating a wide variety of applications.

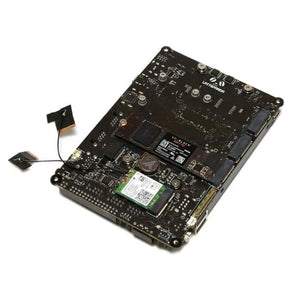

Moreover, it offers four M.2 slots and dual Thunderbolt 4 ports, enabling high-speed connections and extensive expansion possibilities for M.2 SSDs, 4G/5G modules, Wi-Fi modules, HD displays, eGPU, Type-C docks, and beyond.
Diverse OS Support
LattePanda Sigma single board server supports a variety of operating systems: Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.
Professional and Instant Technical Support
To meet the needs of industry users, LattePanda team provides fast and efficient technical support services. Whether it's installation and configuration, troubleshooting, or system integration, the dedicated technical team at LattePanda is always here to ensure the stability and smoothness of your project. Kindly reach out to techsupport@lattepanda.com.
Customized Solutions
LattePanda series single board computer supports special customization, including hardware and interface modifications, customized boot screens, BIOS feature adjustments, customized operating systems, and so on. If you have any specific requirements, please feel free to contact lattepanda@outlook.com. The LattePanda team is dedicated to providing prompt and professional support to cater to your customization needs.
Rigorous Certifications
LattePanda Sigma single board server has obtained multiple international certifications, such as CE, FCC, KC, UKCA and RoHS, ensuring device safety and reliability. These certifications not only enhance the market competitiveness of the products but also simplify the certification process for the whole system.
Features
Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.Lightning-fast Memory: The dual-channel LPDDR5-6000 RAM with a capacity of 32GB ensures smooth and fast performance.High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma Single Board Server supports multiple display outputs with high resolutions and refresh rates.Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.User-friendly Interface Layout: plug and play with easeRich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems
Applications
Specification
Processor
Memory
Dual-Channel 32GB LPDDR5-6000
Storage
Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive
Wireless
Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)
Display
HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60HzUSB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz
External I/O
USB Type-A: 2 x USB2.0 (480Mbps)
2 x USB3.2 Gen 2 (10Gbps)USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)HDMI: HDMI 2.1Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)Power: 5.5mm x 2.5mm DC JackAudio: 3.5mm Microphone Headphone Combo ConnectorSim Card: Micro Sim Card Slot
Internal I/O
USB 2.0: 2.0mm Pitch 4-Pin Connector, 480MbpsFan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM ControlSATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power ConnectorFront Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LEDFront Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-inCOM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State PinseDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes
Expansion Slot
M.2 M Key: Type 2280, Supports PCIe 3.0 x4
Type 2280, Supports PCIe 4.0 x4M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIMM.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio
Security
TPM: Built-in TPM (2.0)
Power
Power Input: 5.5mm x 2.5mm DC Jack: DC 12~20V
USB Type C: PD 20VPower Adapter: 19V DC, 4.74A, 90WRTC Battery: CR1220 Battery Holder: 3V
1.27mm Pitch 2-Pin Connector: 3V
Operating System
Microsoft Windows: Windows 10, Windows 11Linux: Ubuntu 22.04
Environment
Operating Temperature: 0~45℃Relative Humidity: 0%~80%
Dimension
Form Factor: 3.5", 146 x 102 mm

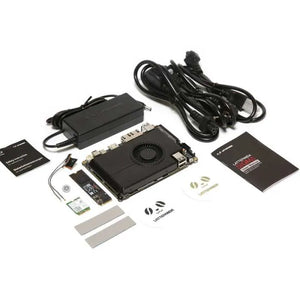

Shipping List
