KST SV6010-12 HV Brushless Metal Gear 70Kgf.cm 0.09sec Digital Servo

SKU: KST-SV6010-12
Sale price 207,90 €
incl. VAT

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Shipping within 72 hours

*Excluding pre-order items

Add to Wishlist
KST SV6010-12 HV Brushless Metal Gear 70Kgf.cm 0.09sec Digital Servo-1

KST SV6010-12 HV Brushless Metal Gear 70Kgf.cm 0.09sec Digital Servo

207,90 €

The KST SV6010-12 HV Brushless Metal Gear Digital Servo is a powerful 12V-class standard servo for large-scale RC cars and RC planes. KST highlights its high torque, oversized spline design, and contactless magnetic sensing for rugged control applications.

Verified KST technical data lists a DC 8.4V-13.0V voltage range, up to 70Kgf.cm torque at 13V, and 0.09sec/60deg speed at 13V. It uses a brushless DC motor, hardened steel gears, contactless position sensing, and 2 ball bearings.

The 25T 8mm output spline, included CNC servo horn, and 40 x 20 x 40mm case make SV6010-12 a heavy-duty choice for high-voltage RC systems that need very high steering or control torque.


Product Images

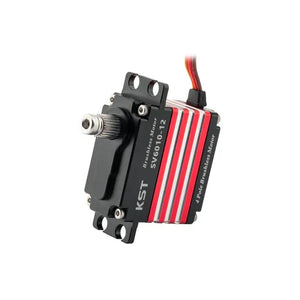

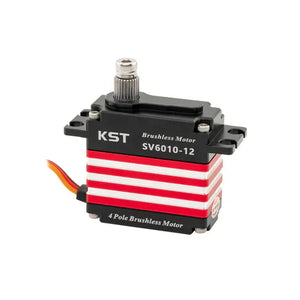

KST SV6010-12 HV brushless metal gear digital servo

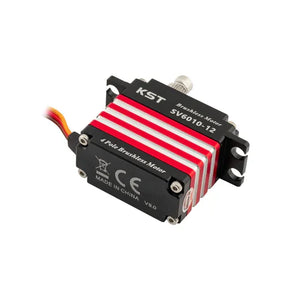

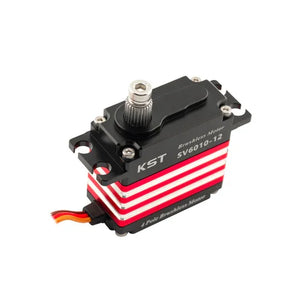

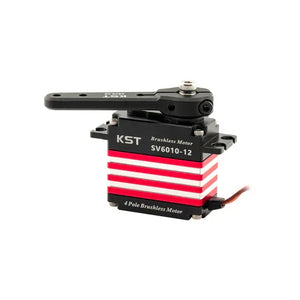

KST SV6010-12 servo detail

KST SV6010-12 package view


Features

  • 70Kgf.cm peak torque - Listed torque reaches 70Kgf.cm at 13V.
  • 0.09sec response - Listed speed reaches 0.09sec/60deg at 13V.
  • 12V-class HV design - Technical PDF lists DC8.4V-13.0V operation.
  • Brushless DC motor - Supports strong output in demanding RC systems.
  • Hardened steel gears - Built for heavy steering and control loads.
  • Contactless position sensor - Helps improve precision and repeatability.
  • Oversized 25T 8mm spline - Provides a larger output interface than typical 6mm servo splines.
  • Included CNC servo horn - KST lists one CNC servo horn in the package.
  • 2BB support - Dual ball bearings support the output shaft.
  • Large-scale RC focus - KST positions it for large-scale RC cars and RC planes.

Specifications

Parameter Value
Model KST SV6010-12
Shopify SKU KST-SV6010-12
Rated Voltage DC12V
Voltage Range DC8.4V-13.0V
Torque 50Kgf.cm @ 8.4V; 60Kgf.cm @ 12V; 70Kgf.cm @ 13V
Speed 0.13sec/60deg @ 8.4V; 0.10sec/60deg @ 12V; 0.09sec/60deg @ 13V
Working Frequency 1520us / 333Hz

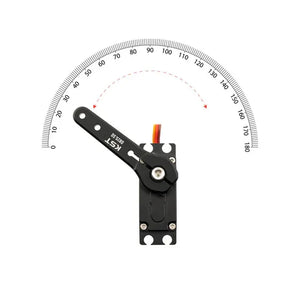

Default Travel Angle +/-100deg = 200deg total
Output Shaft Spline 25T, 8mm
Case Material Aluminum alloy
Motor Type Brushless DC motor
Gear Set Material Hardened steel
Position Sensor Contactless
Ball Bearing 2BB
Case Dimensions 40 x 20 x 40mm +/-0.2mm
Weight 75g +/-10%
Temperature Range -10C to +65C
Programmable Yes

Reference Documents


Application

  • Large-scale RC cars - KST positions SV6010-12 for high-load steering and control applications.
  • Large-scale RC planes - Suitable where torque, size, and 12V-class power requirements match the aircraft setup.
  • 3S LiPo direct-drive systems - Use only when the receiver/controller chain supports the listed voltage and current requirements.
  • High-torque steering builds - Useful for heavy mechanisms that require very high listed torque.
  • Precision PWM control projects - Compatible with 1520us/333Hz PWM control when the electrical setup is correct.
  • Custom robotic mechanisms - Can be used outside RC after validating load, travel, cooling, and safety margins.

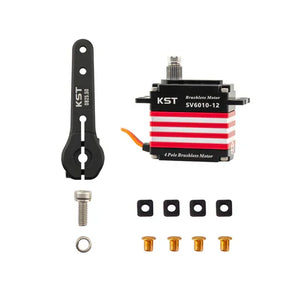

Packing List

Description Quantity
KST SV6010-12 servo 1
CNC servo horn (0825.50) 1
Servo horn screw 1
Spring washer 1
Rubber grommet 4
Eyelet 4

FAQ

How does SV6010-12 compare with SV3312-12?

SV6010-12 is rated up to 70Kgf.cm at 13V and uses a 25T 8mm spline. SV3312-12 is rated up to 38Kgf.cm at 13V and uses a 25T 6mm spline, so they target different torque and horn-interface needs.

Does OpenELAB list multiple Shopify variants for this product?

No. The current Shopify product is a single variant with SKU KST-SV6010-12.

What is the maximum listed torque?

KST lists 70Kgf.cm at 13V.

What is the fastest listed speed?

The fastest listed speed is 0.09sec/60deg at 13V.

What voltage range does it support?

The technical PDF lists DC8.4V-13.0V.

What spline does it use?

The technical PDF lists a 25T, 8mm output shaft spline.

What is included in the package?

KST lists one SV6010-12 servo, one CNC servo horn, one servo horn screw, one spring washer, four rubber grommets, and four eyelets.

What should I check before installation?

Confirm 12V-class power, BEC current capacity, 25T 8mm horn compatibility, case size, travel range, and mechanical load before powering the servo.
