Weight: 0.018 kg
- if you need a longer cable, please consider: RPi Camera Cable 60cm
- For use with Pi5, please consider: Pi5-Camera-Cable-200mm / 300mm / 500mm
- IMX378-190 12.3MP Camera x1
- 15-pin FFC (opposite sides contact) x1

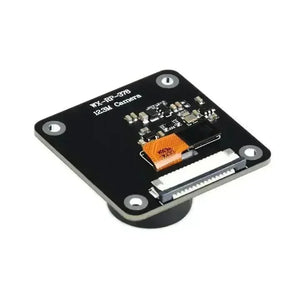

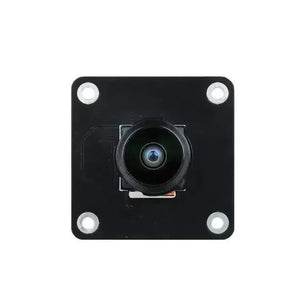

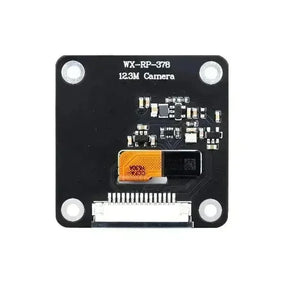

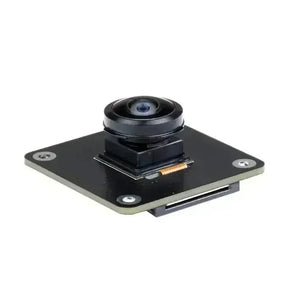

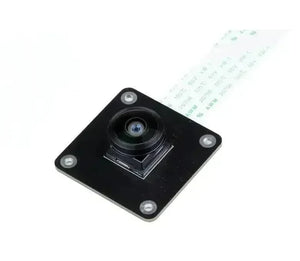

IMX378-190 Fisheye Lens Camera For Raspberry Pi, 12.3MP, Wider Field Of View
IMX378-190 Fisheye Lens Camera
12.3MP, Fisheye, 190°FOV
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required)
extra FPC cable is required for Pi 5 / Zero / Zero 2 W series and some CM3 / 3+ / 4 adapter boards which have 22PIN camera connector
Specifications
|
SENSOR |
IMX378 |
CMOS SIZE |
1/2.3 inch |
|
CAMERA TYPE |
color |
PIXELS |
12.3MP (4056 × 3040) |
|
SHUTTER |
Rolling Shutter |
APERTURE |
F2.4 |
|
DISTORTION |
< 58% |
FIELD OF VIEW |
190° |
|
FOCAL LENGTH |
6.5mm |
FOCUSING |
fixed focus distance |
High Definition, Wide Angle
12.3MP HD, More Clear Imaging
190° Wide Angle Fisheye Lens, Cover All In Sight
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, black FPC and yellow FPC are NOT included.
Outline Dimensions
