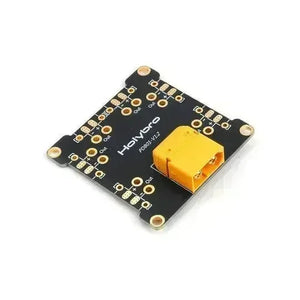

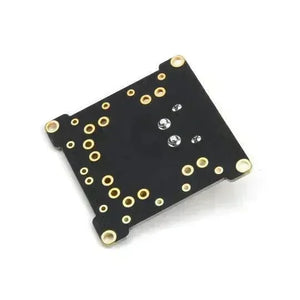

Holybro Power Distribution Board (PDB)

This Power Distribution Board (PDB) is used for PM02, PM02D Power Module. Power modules with build-in power distribution such as the PM03, PM06, PM07 would not require this PDB.

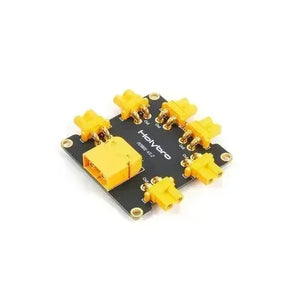

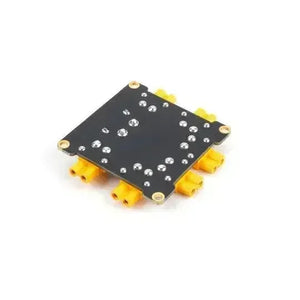

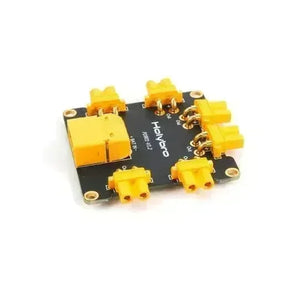

There are two options, with or without XT30 pre-soldered.  The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

• Pre-soldered XT60 for Power Module & Battery

• Rated Current: 60A

• Max Current: 120A (<60 sec)

• 45x45mm Mounting Holes

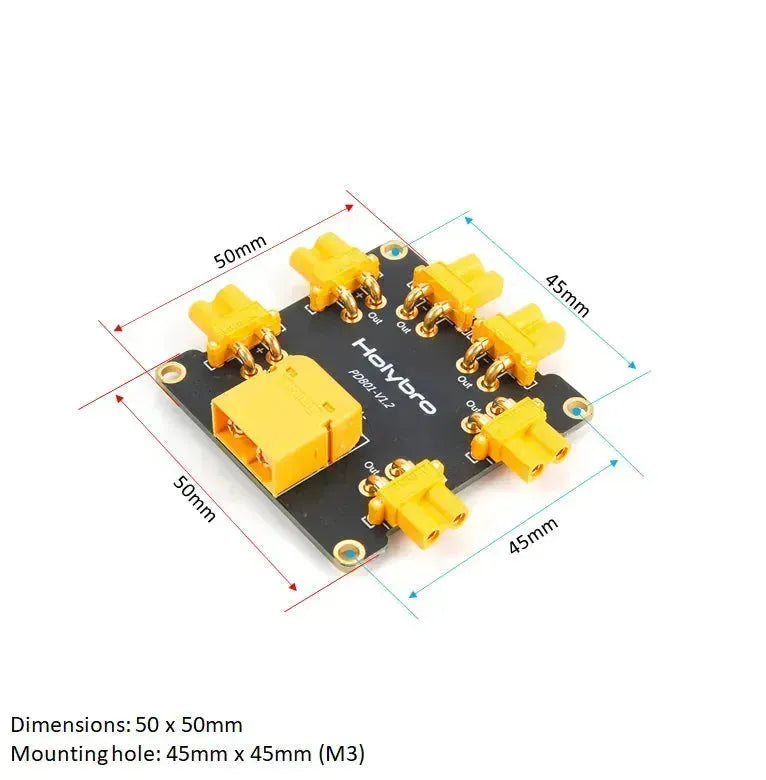

Dimensions

Wiring diagram
