Hobbywing Skywalker V2 Brushless ESC Speed Controller

Sale price €11,20

📦 Location of the warehouse: Shenzhen, China

Type: 20A V2
Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4/5

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
Hobbywing Skywalker V2 Brushless ESC Speed Controller - OpenELAB

Hobbywing Skywalker V2 Brushless ESC Speed Controller

 Specifications

  • Is Electric: No battery
  • Wheelbase: Bottom Plate
  • Size: 65x29x10mm
  • Technical Parameters: Value 2
  • Model Number: SkyWalker
  • For Vehicle Type: Airplanes
  • Tool Supplies: Assembled class
  • Four-wheel Drive Attributes: Assemblage
  • Remote Control Peripherals/Devices: ESC
  • Upgrade Parts/Accessories: Frame
  • RC Parts & Accessories: Speed Controllers
  • Material: Composite Material
  • Brand Name: Hobbywing
  • Origin: Mainland China
  • Recommended Age: 14 years and older
  • Use: Vehicles & Remote Control Toys




Features:

20A:
Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm

30A:
Constant Current: 30A
Peak Current:40A(10s)
Voltage: 2-3S lixx
BEC: Yes
BEC Output: 5V/2A
Color: black
Programmable:Yes
Size: 70*25*8mm (not including cable length)
Net Weight:38g

40A V2 ESC
Product Name: Skywalker 40A V2
Type: Brushless ESC,Regular voltage
Cont./Peak Current: 40A/60A
Input: 3-4S LiPo
BEC Output: Switch Mode:5V,5A
Input Wires: Red-14AWG-100mm*1,Black-14AWG-100mm*1
Output Wires: Black-16AWG-75mm*3
Input Connectors: NO
Output Connectors: 3.5 Gold Connectors (Female)
ESC Programing via: Transmitter, LED Program Box ,Program Port ( Program Wire Firmware )
Firmware Upgrade: Not Supported
Size: 60x25x8mm
Weight: 36g

50A V2 ESC
Product Name: Skywalker 50A V2
Type: Brushless ESC,Regular voltage
Cont./Peak Current: 50A/70A
Input: 3-4S LiPo
BEC Output: Switch Mode:5V,5A
Input Wires: Red-14AWG-100mm*1,Black-14AWG-100mm*1
Output Wires: Black-16AWG-75mm*3
Input Connectors: NO
Output Connectors: 3.5 Gold Connectors (Female)
ESC Programing via: Transmitter, LED Program Box ,Program Port ( Program Wire Firmware )
Firmware Upgrade: Not Supported
Size: 60x25x8mm
Weight: 36g

80A V2 ESC
Product Name: SkyWalker 80A V2-UBEC
Type: Brushless ESC,Regular voltage
Cont./Peak Current: 80A/100A
Input: 3-6S LiPo
BEC Output: Switch Mode:5V,7A
Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1
Output Wires: Black-14AWG-100mm*3
Input Connectors: NO
Output Connectors: 4.0 Gold Connectors (Female)
ESC Programing via: Transmitter, LED Program Box ,Program Port ( Program Wire Firmware )
Firmware Upgrade: Not Supported
Size: 85x36x9mm
Weight: 79g

100A V2 ESC
Product Name: Skywalker 100A V2
Type: Brushless ESC,Regular voltage
Cont./Peak Current: 100A/120A
Input: 3-6S LiPo
BEC Output: Switch Mode:5V,7A
Input Wires: Red-10AWG-150mm*1,Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Input Connectors: NO
Output Connectors: 4.0 Gold Connectors (Female)
ESC Programing via: Transmitter, LED Program Box ,Program Port ( Program Wire Firmware )
Firmware Upgrade: Not Supported
Size: 85x36x9mm
Weight: 92g



Package included:

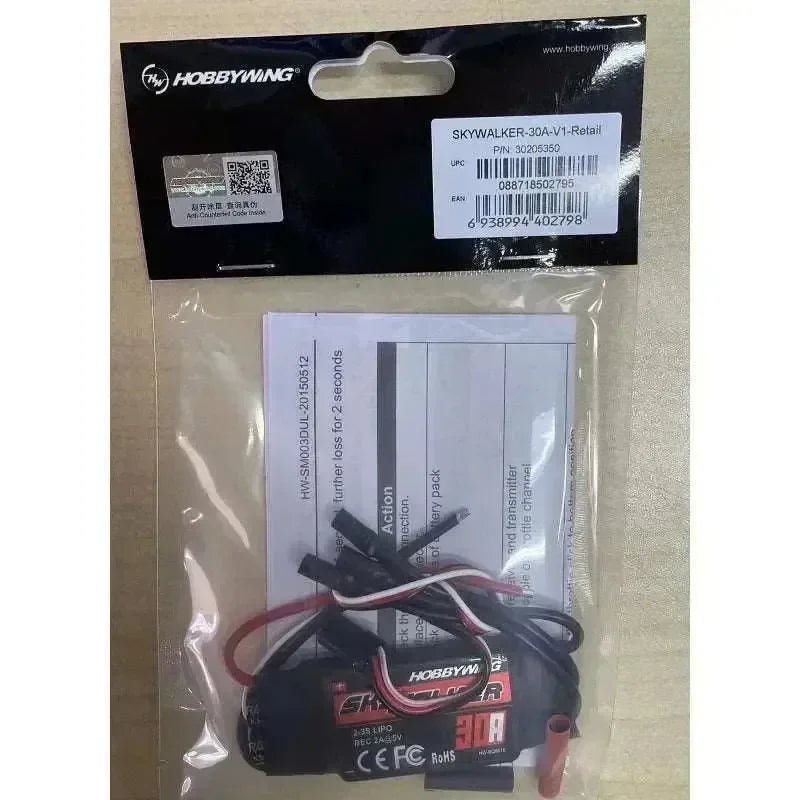

1*Hobbywing Skywalker Brushless ESC
1*XT60 Plug(Additional gifts, need to be welded by yourself)
