The LD6001 module is a 4T3R (four-channel transmitter, three-channel receiver) fully integrated 60-GHz millimetre-wave radar module. It can be used to detect the location and quantity of human body areas (up to eight people), walking trajectories, and more.
Product Parameter
| Parameters | Value | Unit | Remark |
|---|---|---|---|
| Working frequency range | 60 | GHz | |
| Sending voltage | 12 | dBm | |
| Modulation Type | FMCW | / | Frequency modulated continuous wave |
| Sweep frequency broadband | 4 | GHz | |
| Horizontal width of antenna beam | ±60 | ° | |
| Antenna beam elevation width | ±30 | ° | |
| Detect the farthest distance | 8 | m | |
| Working voltage | 5 | V | |
| Average power consumption | 1.1 | W | |
| Working temperature | -15 - 70 | °C | |
| Dimension | 60 * 30 | mm | |
| Start time | 3 | s |
Product Details

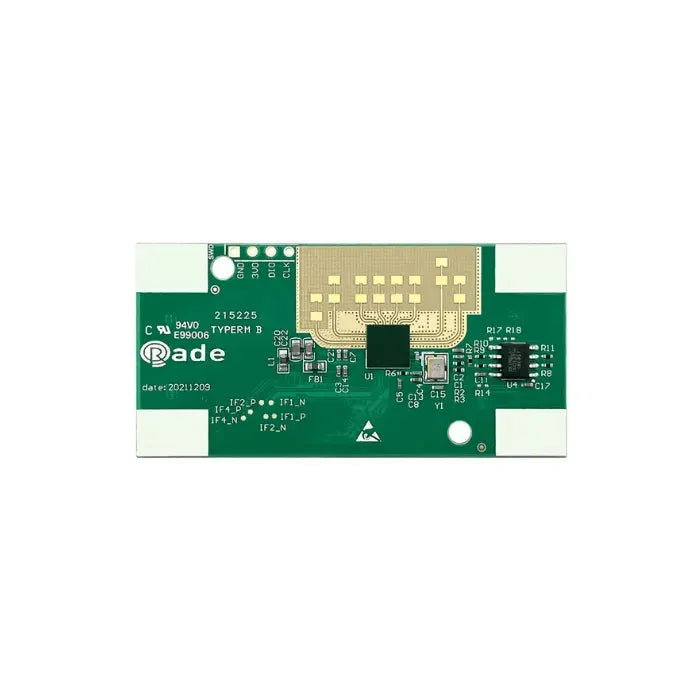

Hi-link 60G radar sensor module LD6001
Installation requirement
The module should be installed on a vertical wall, with a height of 2.2 meters, and the front of the module (with the antenna facing upwards) tilted at an angle of 10 degrees. While this method is generally recommended for the most ideal effect, the module can also be installed slightly higher or the angle can be adjusted slightly as needed, according to the user's preference. The actual test effect shall prevail.
The schematic diagram illustrating the target installation effect, along with the distance, horizontal angle, and pitch angle, is presented below for reference:
