HELTEC WiFi LoRa ESP32 SX1262 LoRa Node Meshtastic LoRaWAN 868Mhz V3

HELTEC WiFi LoRa ESP32 SX1262 LoRa Node Meshtastic LoRaWAN 868Mhz V3

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

The WiFi LoRa 32 V3 is the latest evolution of Heltec Automation’s iconic IoT development board—first introduced in 2017 and widely embraced by makers and developers. This upgraded version maintains the same pinout as V2 while integrating Wi-Fi, Bluetooth 5 (LE), LoRa, and a 0.96-inch OLED display, making it an ideal platform for Meshtastic mesh networks, smart city infrastructure, industrial automation, home security, and other IoT applications.

Powered by the ESP32-S3FN8 dual-core processor and the SX1262 LoRa transceiver, it supports development in Arduino, MicroPython, and other environments. With a USB Type-C interface, onboard lithium battery management, and a low-power design, it delivers reliable performance for both mobile and fixed deployments. Its robust RF circuit and flexible expansion options make it a go-to choice for building Meshtastic nodes, LoRaWAN gateways, and custom wireless solutions.


Features

🧠 Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core, 5-stage pipeline, up to 240 MHz)

📡 LoRa Chip: SX1262 transceiver for long-range communication

🔌 USB Type-C interface with onboard voltage regulation, ESD protection, short-circuit protection, and RF shielding

🔋 Battery Interface: SH1.25-2 connector with integrated lithium battery management (charge/discharge, overcharge protection, voltage detection, auto USB/battery switching)

📟 Display: 0.96" 128×64 OLED screen for debug info, battery status, and more

🌐 Triple wireless: Built-in Wi-Fi, LoRa, and Bluetooth with a 2.4GHz metal spring antenna + IPEX (U.FL) connector for external LoRa antenna

💾 USB-to-Serial: Onboard CP2102 chip for easy firmware flashing and serial debugging

🛠️ Arduino IDE support: Perfect for embedded development and quick prototyping

⚙️ Optimized RF and power design: Great for low-power IoT applications


Specifications

Parameters Description
Master Chip ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Node Chip SX1262
USB to Serial Chip CP2102
Frequency 470~510MHz,
863~928MHz
Max. TX Power 21±1dBm
Max. Receiving sensitivity -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth Bluetooth 5 (LE)
Hardware Resource 7*ADC1 + 2*ADC2;
7*Touch;
3*UART;
2*I2C;
2*SPI; etc.
Memory 384KB ROM;
512KB SRAM;
16KB RTC SRAM;
8MB SiP Flash
Interface Type-C USB;
2*1.25 lithium battery interface;
LoRa ANT(IPEX1.0);
2*18*2.54 Header Pin
Battery 3.7V lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 50.2 * 25.5* 10.2 mm


Pin Map


High light

USB Type C

The power supply, firmware download, and debugging interfaces adopt a more universal USB Type C interface, making development work more convenient.

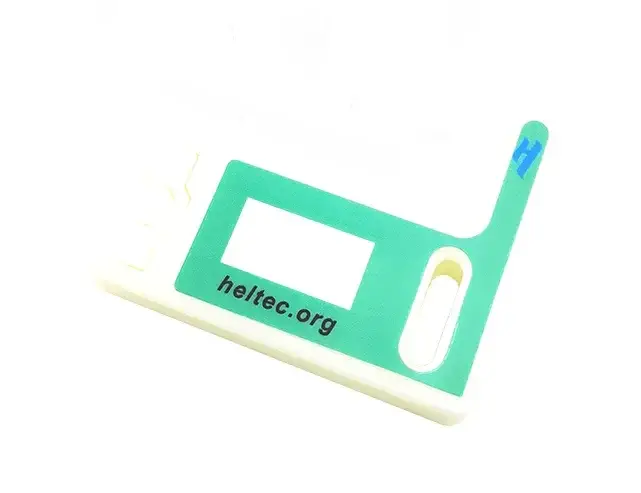

Plastic Shell

We also made a plastic shell as an optional accessory. Which provide basic protection for the development board.






Onboard OLED Display

The integrated OLED display can be used to show some information such as system status and parameters, making it convenient for users to directly use the entire development board for their own product design.

FAQ

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless signals.

No, the WiFi LoRa 32 don’t have an external PSRAM, if your application need use Bluetooth and Wi-Fi at the same time, you can look into this product: Heltec Wireless Bridge.

  • Arduino
  • Micro Python
  • Platform.io
  • Espressif IDE

We strongly recommend using Arduino. We have complete technical support and provide complete LoRaWAN code for ESP32 Arduino framework.

You can find this type of socket by search “SH1.25 x 2”.

Of course, you can contact our sales staff and provide your ideas.

No, the MCU is different.

It’s caused by the meshtastic setting. Changing the default screen to SSD1306 can solve the problem.

The specific steps are as follows:

“Radio configuration”→”Display”→”Override OLED auto-detect”→”SSD1306”



Docs & Resource


Project

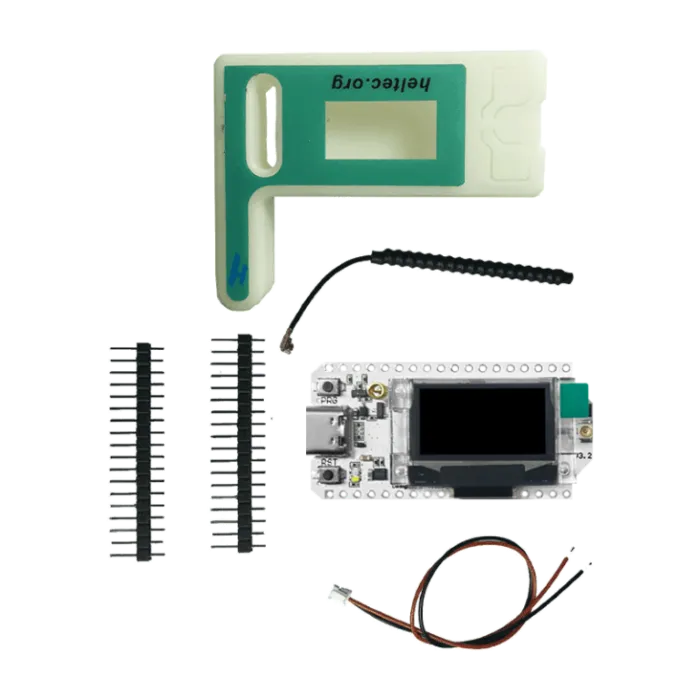

Packing list

The default packing list without selecting any accessories is as follows:

Item Quantity
WiFi LoRa 32 (V3) x1
LoRa Antenna x1
SH1.25×2 Battery Connector x1
2.54*18 Header Pin x2
