Genmitsu CFL55-33 5.5W Compressed FAC Laser Module

Genmitsu CFL55-33 5.5W Compressed FAC Laser Module

106,99 €

The CFL55-33 5.5W Compressed FAC Laser Module is a cost-effective, high-performance CNC laser upgrade designed for makers who need precision engraving and cutting without the high price tag. Featuring a built-in control board, 0.1 × 0.1 mm compressed laser spot, fixed 30 mm focal length, and a protective focus-assist shield, this module delivers exceptional accuracy for small to mid-sized CNC routers. Its lightweight, compact design requires no external power supply and installs cleanly in minutes. Fully compatible with Genmitsu 4040 Series, 3018 Series, and 3020-PRO Series CNC machines.


Features

  • Affordable high performance comparable to premium laser modules.
  • Integrated control board for a cleaner, lighter, and more reliable setup.
  • Easy installation — powered directly from the CNC controller (12V), no external power brick required.

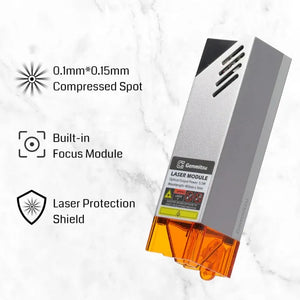

  • Compressed FAC spot (0.1 × 0.1 mm) for ultra-fine engraving detail.
  • Fixed-focus 30 mm design with included calibration tool for fast focusing.

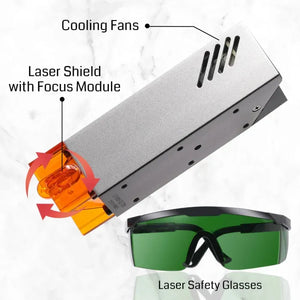

  • Protective laser shield with built-in focus assistance for safer operation.

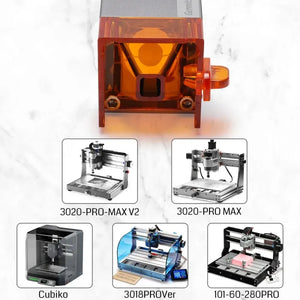

  • Wide CNC compatibility including Genmitsu Cubiko, 3018-PROVer, 3018-PRO, 3020-PRO MAX, and 4040 Series.

Technical Specifications

Category Details
Laser Power 5.5W
Spot Size 0.1 × 0.1 mm (Compressed FAC)
Focal Length 30 mm (Fixed)
Wavelength 455 ± 5 nm
Input Power 12V / 2.5A
Interface XH2.54-3 Pin (PWM+, GND, 12V)
Shield Movable laser protective shield

System Compatibility

  • Genmitsu Cubiko
  • Genmitsu 3018-PROVer (V1 & V2)
  • Genmitsu 3018-PRO
  • Genmitsu 3020-PRO / PRO MAX / PRO Ultra
  • Genmitsu 4040 Series

Versatile Application Scenarios

  • CNC laser engraving for DIY and maker projects.
  • Precision laser cutting for hobbyists and workshops.
  • Industrial PCB marking and component labeling.
  • Engraving on wood, acrylic, leather, bamboo, cardboard.
  • Light-duty metal marking (blackened surface recommended).

Material Compatibility

Engravable Materials

  • Cardboard, plastic, PCB
  • Aluminum alloy, stainless steel, black metal (blackened surface recommended)
  • Bamboo, wood, leather

Cuttable Materials

  • Wood, acrylic, cardboard
  • Non-woven fabric, bamboo
  • Laser-safe plastics

Packing List

  • 1 × CFL55-33 Laser Module
  • 1 × Connection Cable (12V / GND / PWM)
  • 1 × 30 mm Focus Calibration Tool
  • 1 × User Manual

FAQ

Does the laser module require an external power supply?

No. It is directly powered from the CNC controller using the included 12V interface for a plug-and-play experience.

What spindle mount size does it support?

It supports standard 42 mm spindle mounts. For 52 / 65 / 69 mm mounts, 3D-printable adapters are available.

How do I engrave reflective materials?

Blacken the surface of stainless steel or aluminum to reduce reflection and improve engraving quality.

How should I clean the lens?

Use a cotton swab with alcohol to gently remove smoke residue, especially after engraving oily woods.


Reference Parameters

CNC Laser Module - Engraving Parameters

Material Power Speed (mm/min) Interval (mm)
Kraft paper 80% 2000 0.12
Plywood 80% 2000 0.10
Solid wood 80% 2000 0.10
Bamboo board 80% 2000 0.10
Cork 50% 2000 0.10
Transparent acrylic (blackened) 30% 2000 0.10
Frosted glass (blackened) 40% 2000 0.10
Leather (white, blackened) 40% 2000 0.10
Silicone 70% 2000 0.10
Pebble 40% 2000 0.10
Ceramic (blackened) 100% 1500 0.10
Aluminum plate (blackened) 40% 2000 0.10
Stainless steel 100% 1000 0.10
White felt (blackened) 70% 2000 0.10

CNC Laser Module - Cutting Parameters

Material Power Speed (mm/min) Number of cuts
Plywood 3 mm 100% 200 1
Plywood 5 mm 100% 100 1
Plywood 8 mm 100% 150 6
Plywood 10 mm 100% 80 10
Solid wood 5 mm 100% 80 3
Solid wood 12 mm 100% 80 4
Black acrylic 10 mm 100% 80 12
Black acrylic 15 mm 100% 80 15
Felt (blackened) 3.5 mm 100% 80 20
Leather 1 mm 100% 800 1
MDF 4.3 mm 100% 150 6
