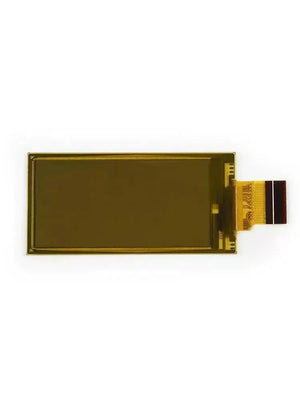

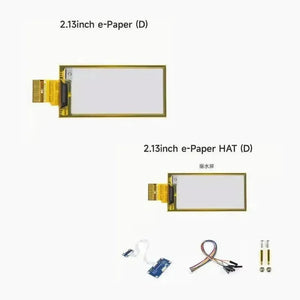

Waveshare Flexible E-Paper 2.13 inch E-Ink Display

Specifications

Product Features

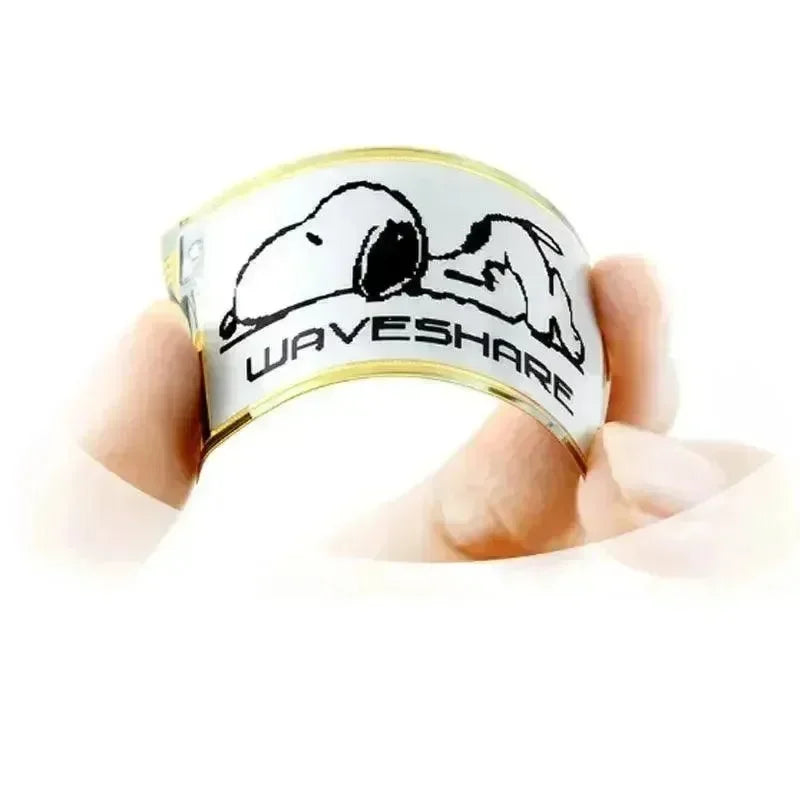

• Flexible electronic ink screen, bendable (display area only)
• No backlight required, can retain the last screen content for a long time without power
• Extremely low power consumption, basically only consuming power when refreshing
• Designed based on the Raspberry Pi 40PIN GPIO interface, suitable for Raspberry Pi series motherboards, Jetson Nano, RDK X3

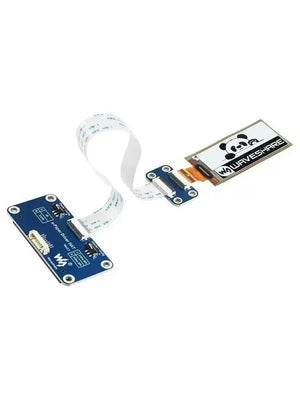

• Reserved SPI communication interface, convenient for connecting to Arduino/STM32 and other main controllers
• Onboard voltage level conversion chip, compatible with 3.3V and 5V single-chip microcontroller interfaces
• Complete supporting documentation (Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32 and other example programs provided)

Reserved SPI Communication Interface

Can be connected to Arduino/STM32 and other main controllers

Switch to adapt other e-paper screens | Switch 3-wire/4-wire SPI

Pin Definitions:

• VCC: 3.3V/5V
• GND: GND
• DIN: SPI Communication MOSI Pin
• CLK: SPI Communication SCK Pin
• CS: SPI Chip Select Pin (Active Low)
• DC: Data/Command Control Pin (High for e-paper data, low for e-paper command)
• RST: External Reset Pin (Active Low)
• BUSY: Busy Status Output Pin
• PWR: Power On/Off Control Pin
