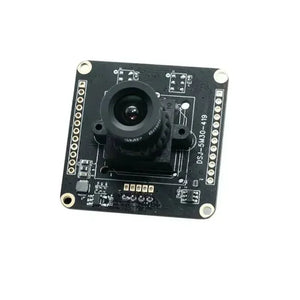

5MP WDR Face Recognition Camera Module Driver Free

Main Applications

• Primarily used for face recognition in backlit environments, especially for identity verification in security gates.
• Suitable for industrial photography, industrial inspection, and high-definition surveillance, providing precise image capture.

Product Parameters

• Product Model: DSJ-5M30-419
• CMOS Sensor Model: [Blank]
• Sensor Size: 1/2.5 inch
• USB Cable Material: Default 1m cable, 1m, 2m, 3m cables available (Supports custom various interface cables)
• Pixel Size: 2.2um * 2.2um
• Signal-to-Noise Ratio: TBD
• USB Interface Type: USB 2.0
• Maximum Effective Resolution & Frame Rate:
  • MJPG (Compression Format):
    • 2592 x 1944 @ 30fps, MJPG
    • 2048 x 1536 @ 30fps, MJPG
    • 1920 x 1080 @ 30fps, MJPG
    • 1280 x 960 @ 30fps, MJPG
    • 1280 x 720 @ 30fps, MJPG
    • 800 x 600 @ 30fps, MJPG
    • 640 x 480 @ 30fps, MJPG
    • 320 x 240 @ 30fps, MJPG
  • YUV (Compression Format):
    • 2592 x 1944 @ 3fps, YUV
    • 2048 x 1536 @ 3fps, YUV
    • 1920 x 1080 @ 5fps, YUV
    • 1280 x 720 @ 5fps, YUV
    • 1024 x 768 @ 10fps, YUV
    • 800 x 600 @ 10fps, YUV
    • 640 x 480 @ 30fps, YUV
• Lens Viewing Angle: Optional lenses available
• Operating Voltage and Current: 5V, 110mA-190mA
• Operating Temperature: 0 to 60°C
• Storage Temperature, Humidity: -30 to 80°C
• Supported Systems:
  • Microsoft Windows 2000 SP2/XP/Vista/Windows 7/Windows 8/Windows 10
  • MacOS X 10.4.8 or above (compliant with UVC protocol)
  • Linux, Android (compliant with UVC protocol)
• Application Fields:
  • Fast-access terminals
  • Face recognition cameras
  • Barcode scanning cameras
  • High-definition cameras
  • Mobile OTG cameras
  • Attendance and access control
  • Advertisement
  • Face recognition
  • Conference video
  • Industrial vision
  • Visual measurement
  • USB microscopes
  • USB endoscopes
  • Intelligent terminal devices
  • Smart shelf cameras
  • Intelligent vending machine cameras
  • Electronic scale product recognition
  • Fresh produce recognition
  • USB Raspberry Pi cameras, and more.
• Supported Driver Protocol: USB Video Class (UVC)
• Supported OTG Protocol: USB 2.0 OTG

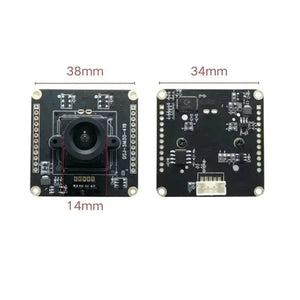

• PCB Dimensions: 38 x 38mm, detailed dimensions see 2D drawings (must be provided)
• Power Supply Method: USB BUS POWER, 4P-2.0mm connector
• Adjustable Parameters: Lens attributes
• Lens Viewing Angle: Available options from 30 to 220 degrees based on customer requirements (special requests please contact customer service)
