The ESP32-S3-Nano utilizes the ESP32-S3R8 chip and is compatible with the Arduino Nano ESP32. Its compact design, coupled with robust capabilities, makes it well-suited for applications in the Internet of Things (IoT) and MicroPython. Additionally, it offers ease of integration into various projects, enhancing its versatility and functionality.
-
The device is equipped with the ESP32-S3R8 chip, which incorporates the Xtensa® 32-bit LX7 dual-core processor. This processor is capable of operating at a frequency of 240 MHz.
-
The system is equipped with integrated 512KB of SRAM, 384KB of ROM, 8MB of PSRAM, and 16MB of Flash memory.
-
The device features integrated dual-mode wireless communication utilizing 2.4GHz Wi-Fi and Bluetooth Low Energy, offering enhanced radio frequency performance.
-
Facilitates a seamless transition between Arduino and MicroPython programming, allowing for enhanced flexibility in usage.
-
This product is compatible with the Arduino IoT Cloud, enabling users to monitor and control their projects remotely through the use of the Arduino IoT Cloud application.
-
This device supports Human Interface Device (HID) functionality, allowing it to emulate devices such as keyboards or mice through a USB port. This capability facilitates enhanced interaction with personal computers.
|
Product Parameters Comparison
|
|||
|
MODEL
|
R7FA4 PLUS A
|
R7FA4 PLUS B
|
ESP32-S3-NANO
|
|
MICROCONTROLLER
|
R7FA4 (32-bit ARM Cortex-M4)
|
R7FA4 (32-bit ARM Cortex-M4)
|
ESP32-S3R8 (Dual-core 32-bit Xtensa LX7)
|
|
ESP32-S3FN8 (Dual-core 32-bit Xtensa LX7)
|
|||
|
CLOCK FREQUENCY
|
R7FA4: 48MHz
|
R7FA4: 48MHz
|
ESP32-S3R8: 240MHz
|
|
ESP32-S3FN8: 240MHz
|
|||
|
STORAGE
|
R7FA4: 256kB Flash, 32kB RAM
|
R7FA4: 256kB Flash, 32kB RAM
|
ESP32-S3R8: 384kB ROM, 512kB RAM, 16MB Flash, 8MB PSRAM
|
|
ESP32-S3FN8: 384kB ROM, 512kB RAM, 8MB Flash
|
|||
|
WIRELESS COMMUNICATION
|
None
|
2.4GHz WiFi + Bluetooth LE
|
|
|
OPERATING VOLTAGE
|
Options for 5V/3.3V, support more shields
|
3.3V
|
|
|
POWER INPUT
|
6~24V
|
6~21V
|
|
|
RESET BUTTON
|
Lateral, easier to use when connecting with a shield
|
Vertical
|
|
|
IO PIN OUTPUT CURRENT
|
8mA
|
40mA
|
|
|
DIGITAL PINS
|
14
|
14
|
|
|
ANALOG PINS
|
6
|
8
|
|
|
DAC
|
2
|
None
|
|
|
PWM
|
6
|
5
|
|
|
UART
|
1
|
2
|
|
|
I2C
|
1
|
1
|
|
|
SPI
|
1
|
1
|
|
|
CAN
|
1
|
None
|
|
|
DC JACK
|
Low profile, shields won't be blocked anymore while connecting
|
None
|
|
|
POWER OUTPUT HEADER
|
Provides 5V OR 3.3V power output and common-grounding with other boards
|
None
|
|
|
5V POWER OUTPUT
|
Up to 2000mA Max, features higher driving capability
|
1000mA Max
|
|
|
EXPERIMENTAL BOARD
|
Support, the solder pad is provided for DIY interfaces to connect with the experimental board
|
Support
|
|

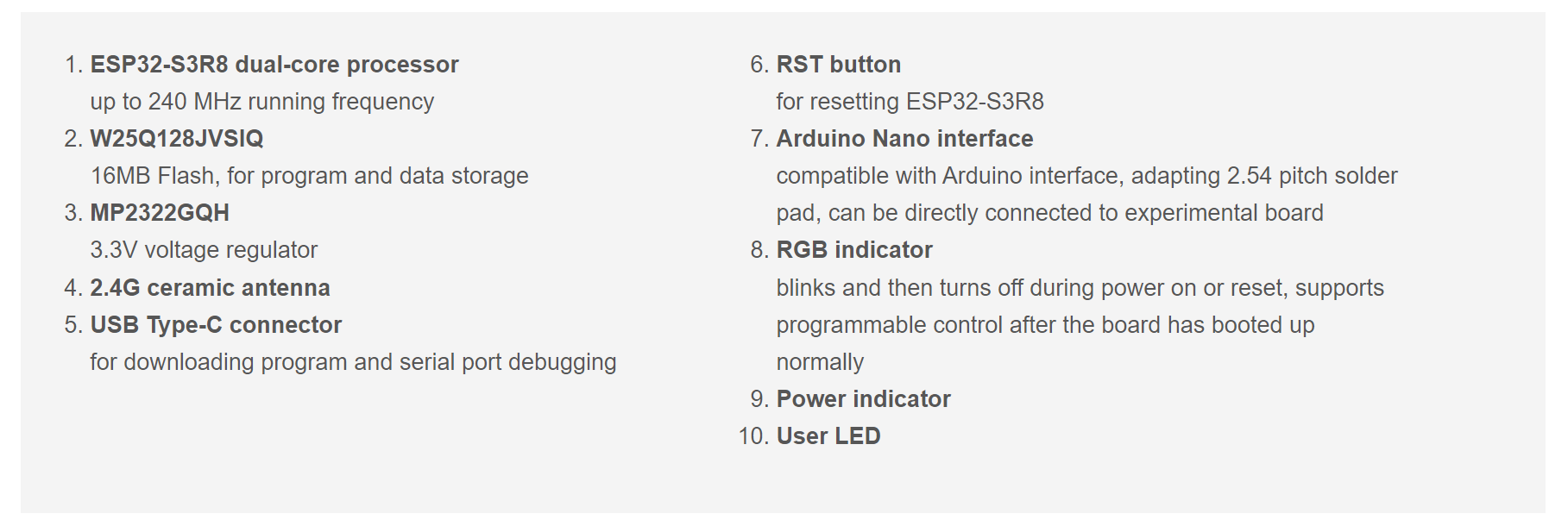

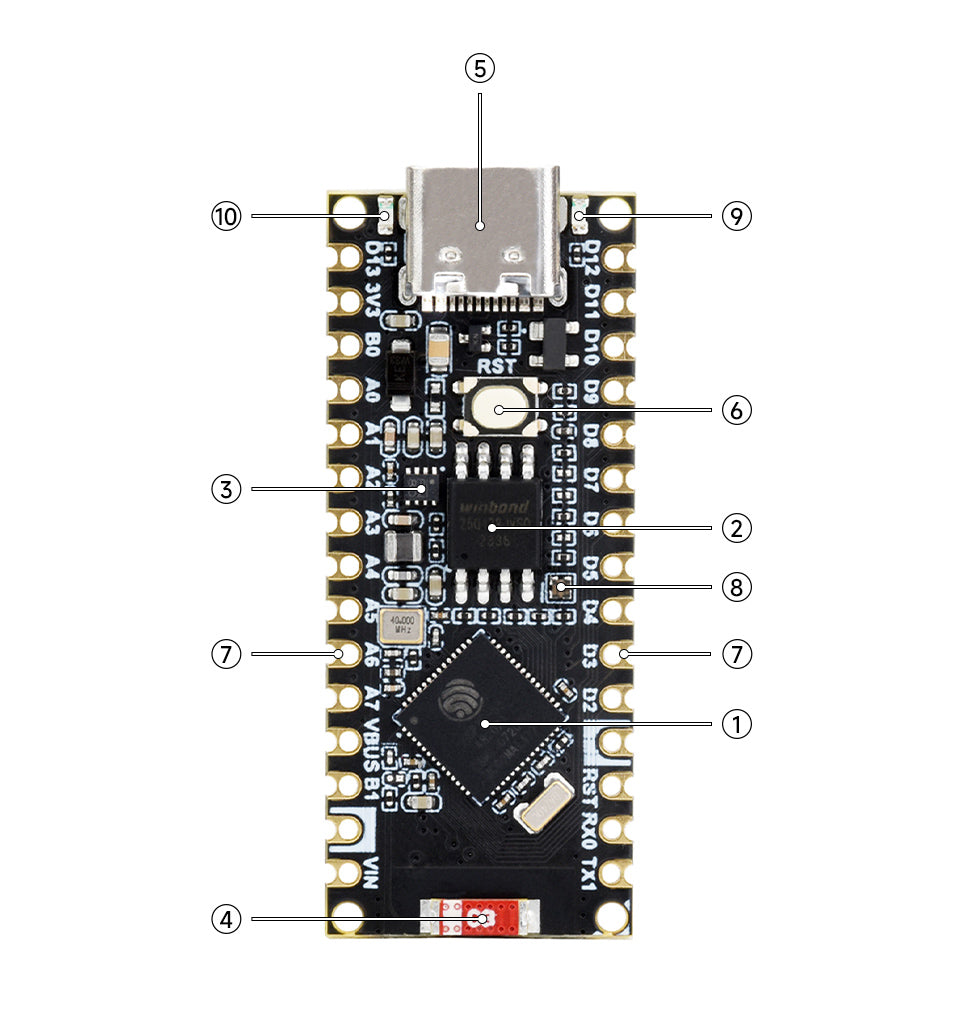

What's On Board

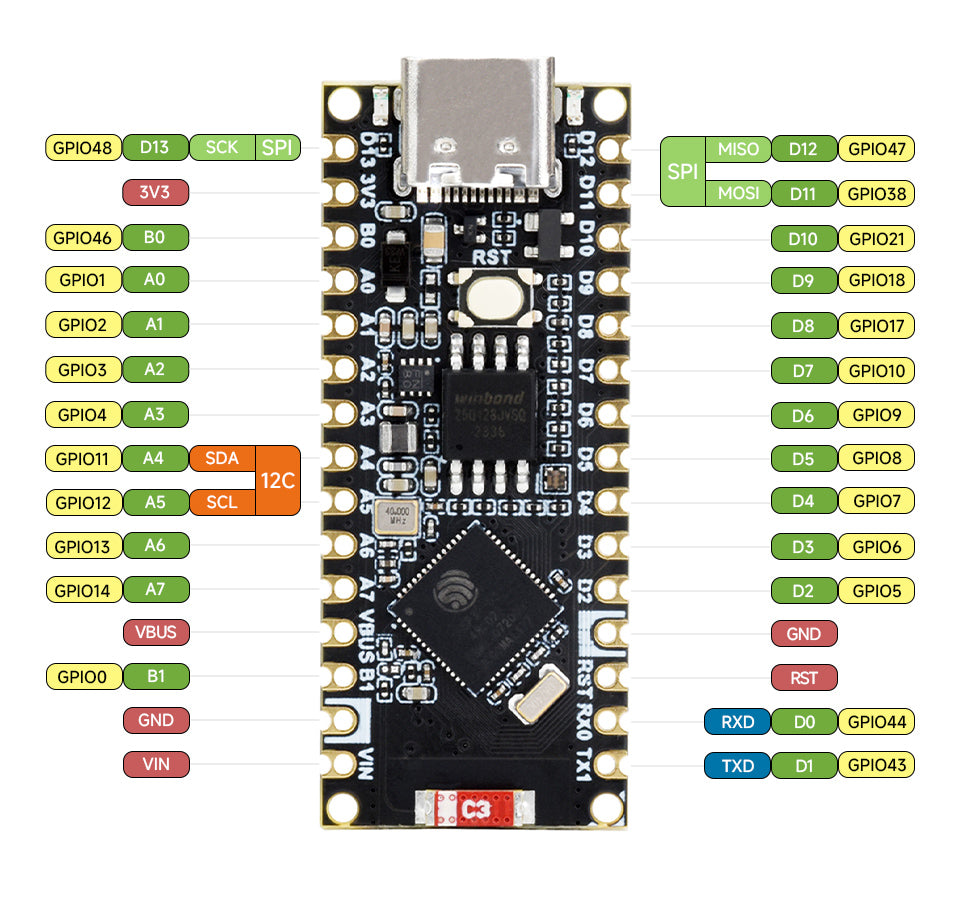

Pinout Definition

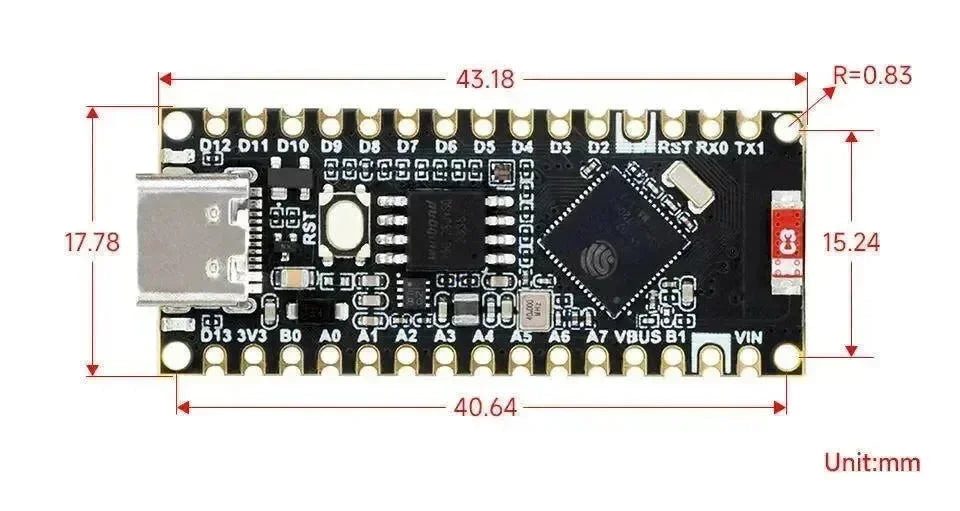

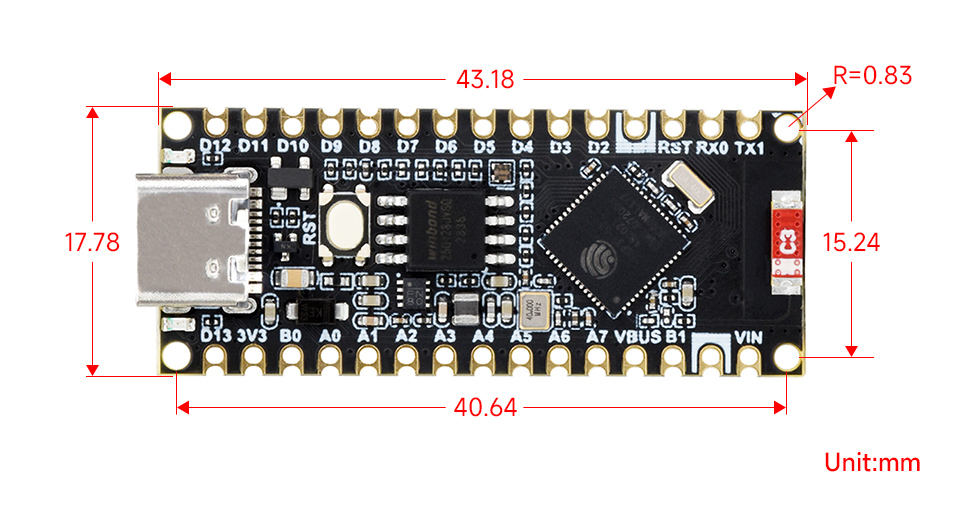

Outline Dimensions
