Waveshare ESP32-S3 Dev Board 2.4GHz Wi-Fi Bluetooth 5

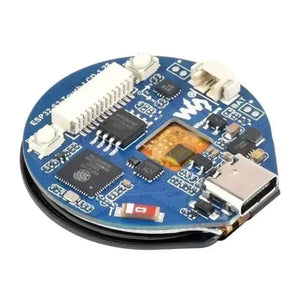

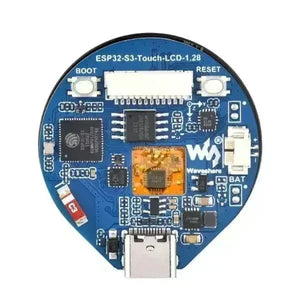

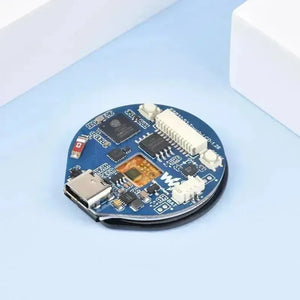

The ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, the board contains a 1.28-inch capacitive touch LCD screen, a Li-ion battery charging chip, six-axis sensors (three-axis accelerometer and three-axis gyroscope) and other peripherals, which make it easy to develop and embed the application into the product.

Features

• Equipped with a high-performance Xtensa® 32-bit LX7 dual-core processor at 240 MHz.
• Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with on-board antennas
• Built-in 512KB SRAM and 384KB ROM, with 2MB PSRAM and 16MB external Flash stack
• Type-C connector to keep up with the latest trends, no need to worry about plugging in and out

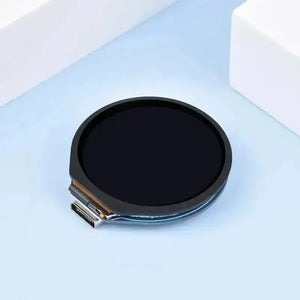

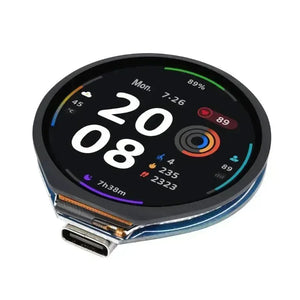

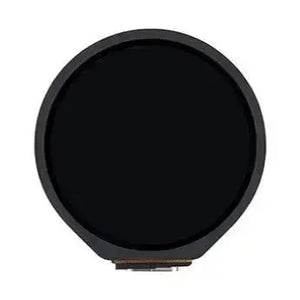

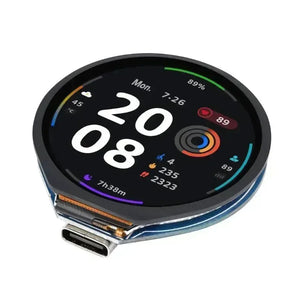

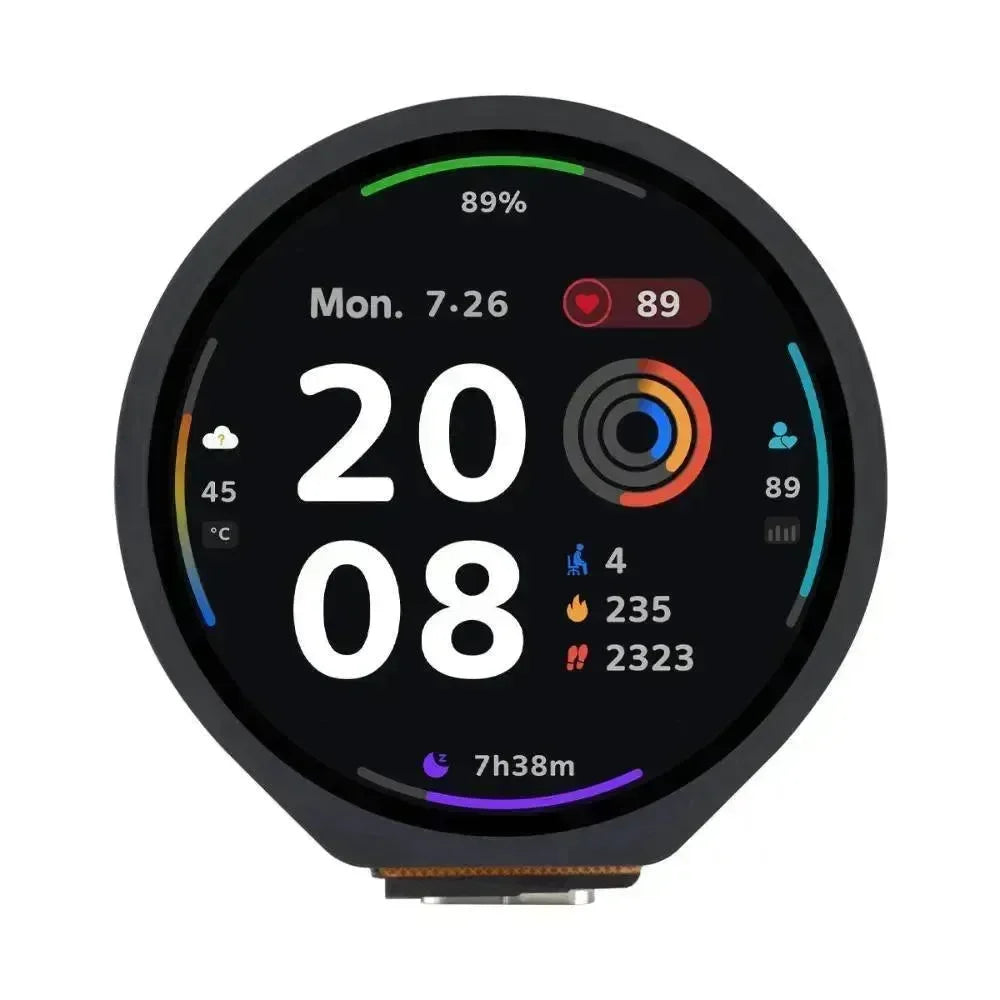

• On-board 1.28-inch capacitive touch LCD screen, 240×240 resolution, 65K colour
• On-board QMI8658 6-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect the motion attitude
• On-board 3.7V MX1.25 Li-ion battery charging and discharging interface
• SH1.0 connector for 6 GPIOs
• Supports flexible clock, individual module power supply settings and other precise control to achieve multi-scenario low-power mode.
• Integrated USB serial full-speed controller, GPIO can be flexibly configured peripheral functions
