Waveshare ESP32-S3 Dev Board Supports WiFi/Bluetooth

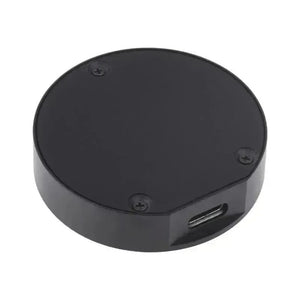

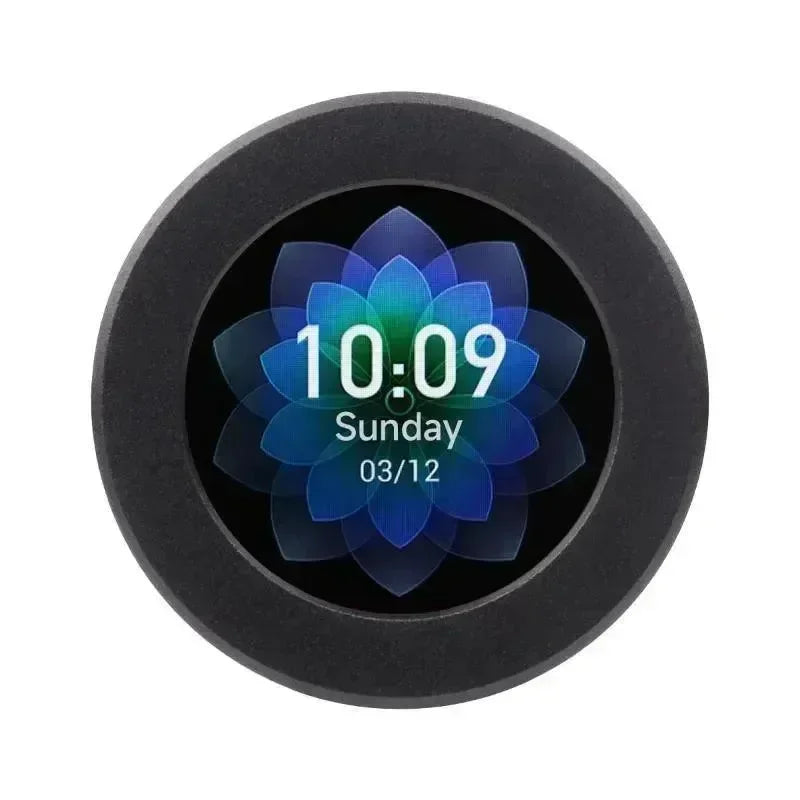

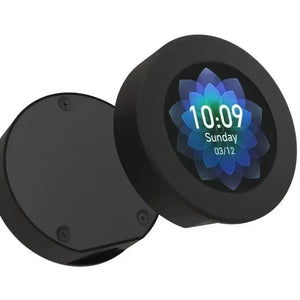

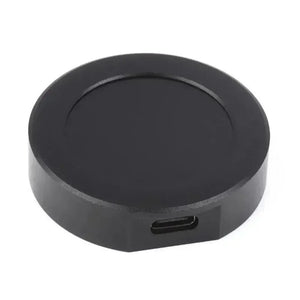

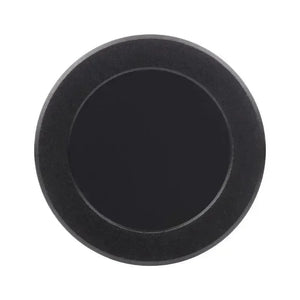

ESP32-S3-LCD-1.28-B is a cost-effective and powerful microcontroller development board designed by Waveshare. In a small form factor, the board contains a 1.28-inch LCD screen, Li-ion battery charging chip, six-axis sensors (three-axis accelerometer and three-axis gyroscope) and other peripherals, which makes it easy to develop and embed the application into the product.
Features
- High-performance Xtensa® 32-bit LX7 dual-core processor with 240 MHz clock frequency.
- Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with on-board antennas
- Built-in 512KB SRAM and 384KB ROM, 2MB PSRAM and 16MB external Flash on stack
- Type-C connector, no need to worry about plugging it in or out
- Onboard 1.28-inch LCD with round IPS panel, 240 x 240 resolution, 65K colour
- CNC-metal top case with a frosted acrylic back panel
- On-board QMI8658 6-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) to detect motion attitude
- On-board 3.7V Li-ion battery charging and discharging interface and lead most of the GPIO docking station
- Supports flexible clocking, individual module power settings and other precision controls to achieve multi-scenario low-power mode
- Integrated USB serial full-speed controller, GPIO can be flexibly configured with a variety of peripheral functions
