ESP32 PSRAM Timer Camera X (OV3660)
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
ESP32 PSRAM Timer Camera X (OV3660)

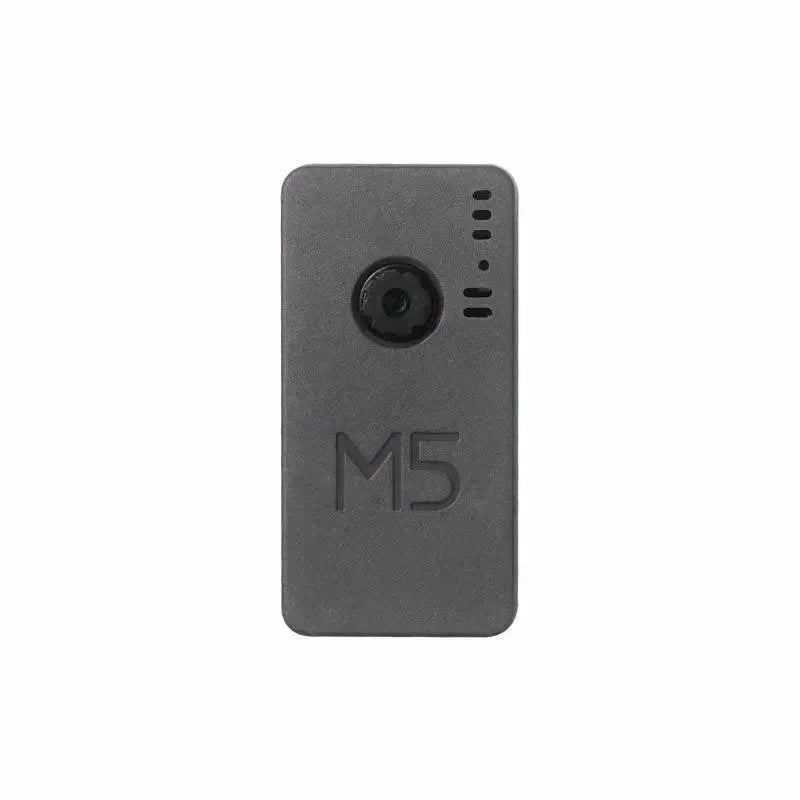

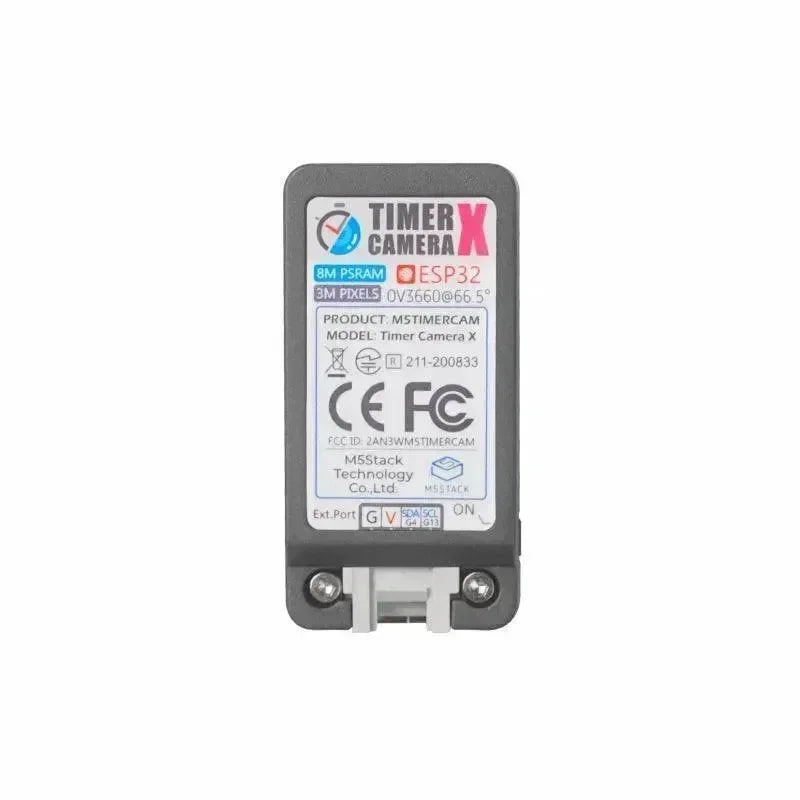

Timer Camera X is a camera module based on ESP32, integrated with ESP32 chip and 8M-PSRAM. The camera (ov3660) with 3 million pixels, DFOV 66.5 ° and 2048x1536 resolution photos, a built-in 140mAh battery, and an LED status indicator, featuring an ultra-low power consumption design. There is a reset button under the LED. Through RTC (BM8563), timing sleep and wake-up can be realized. The standby current is only 2μA. After timing photo taking function(one photo per hour) is turned on, the battery can work continuously for more than one month. The module supports Wi-Fi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. Through M5Burner burning firmware, esp32 cam can be set directly with Camera-Tool, and Timer Camera X data can be processed in UIFlow.
Product Features
- Design based on esp32
- Wi-Fi image transmission
- Timed sleep wake up
- Status indicator
- Ultra low power design
- Built-in 140mAh battery
- Programming platform:ESP-IDF/Arduino/UIFlow

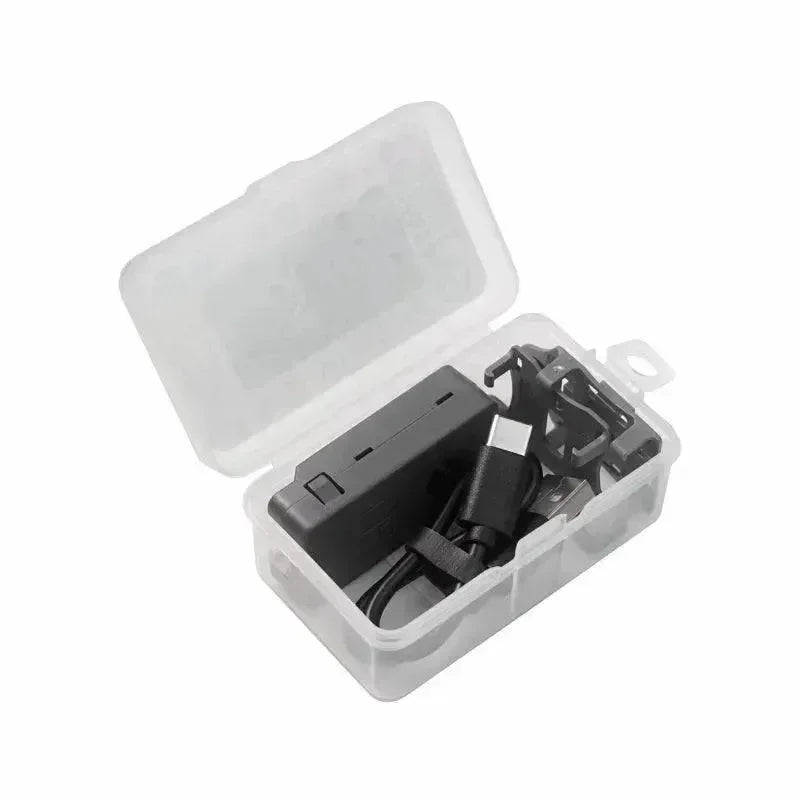

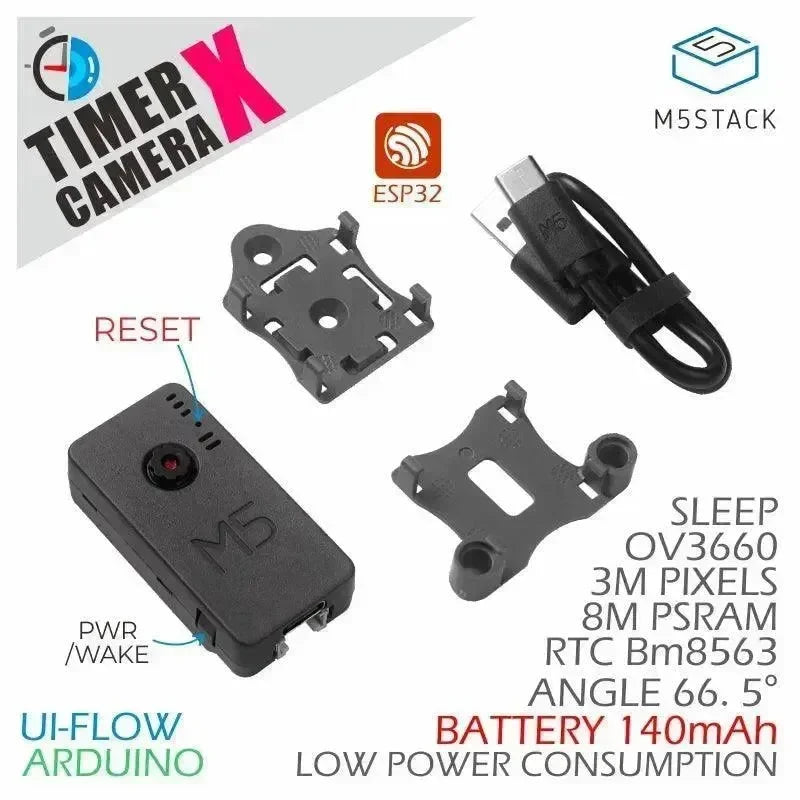

Includes
- 1x Timer Camera X

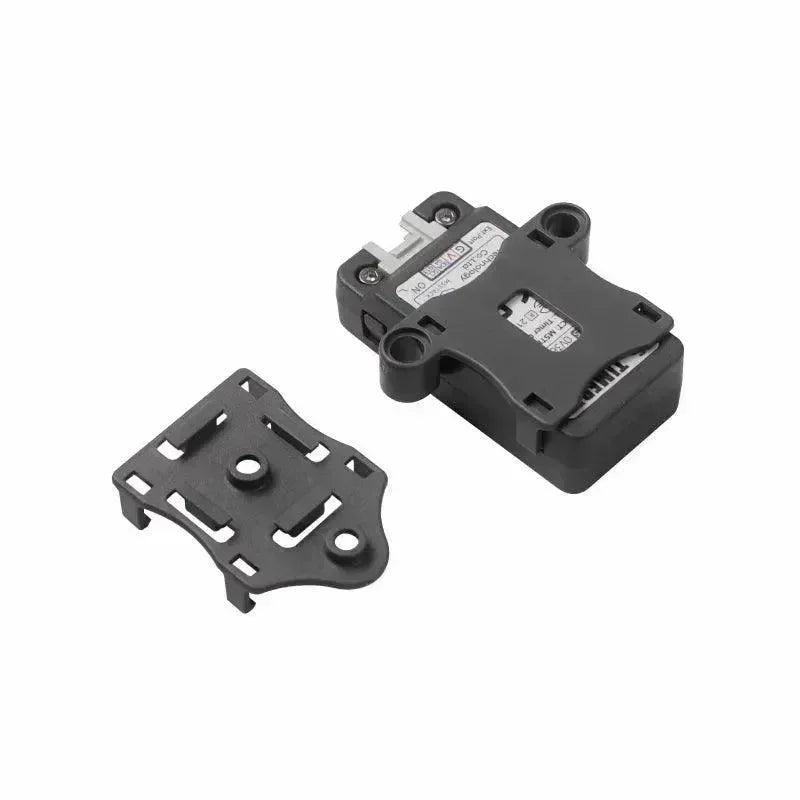

- 1x LEGO Adapter
- 1x Wall-1515
- 1x Type-C USB(20cm)
Applications
- Take pictures regularly
- Remote video monitoring
Specification
| PSRAM | 8MB |
| Flash | 4M |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | 8-/10-Bit RAW, RGB and YCbCr output, compression. |
| DFOV | 66.5° |
| Battery | 140mAh |
| Net weight | 15g |
| Gross weight | 39g |
| Product Size | 48*24*15mm |
| Package Size | 75*45*30mm |
