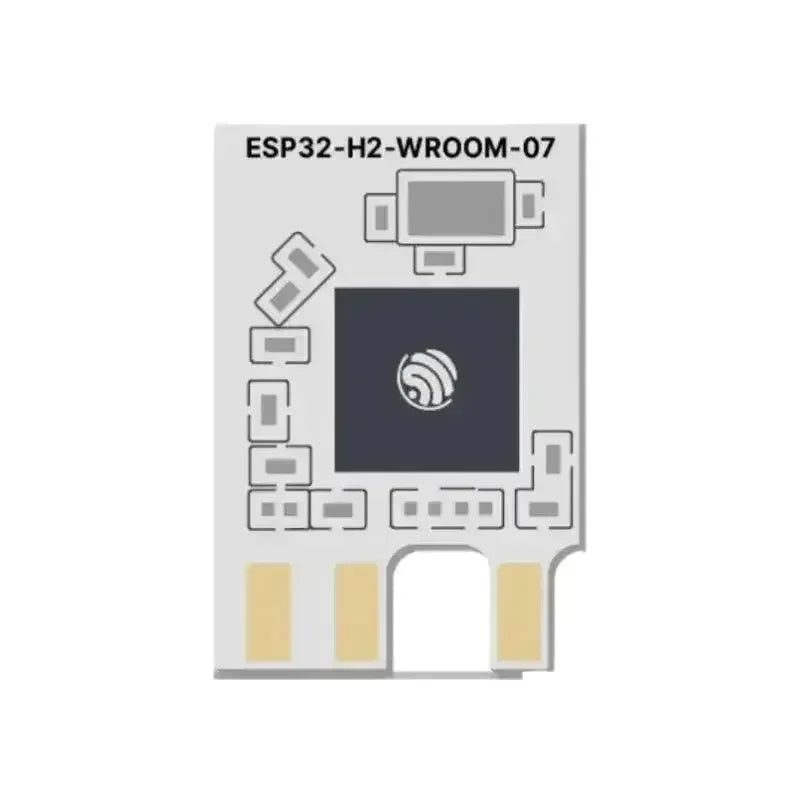

Espressif ESP32 H2 WROOM 07 Thread/Zigbee/BLE Module

ESP32-H2-WROOM-07 is a powerful, generic Bluetooth® Low Energy and IEEE 802.15.4 combo module that has a rich set of peripherals. This module is an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT), such as embedded systems, smart home, wearable electronics, etc.

ESP32-H2-WROOM-07 can be vertically soldered to a PCB board and the module has 3 available GPIOs.ESP32-H2-WROOM-07 can be connected to an external monopole antenna.

ESP32-H2-WROOM-07 has integrated the ESP32-H2 chip, which has a 32-bit RISC-V single-core CPU that operates at up to 96 MHz. You can power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32-H2 integrates a rich set of peripherals including I2C, I2S, SPI, UART, ADC, LED PWM, ETM, GDMA, PCNT, PARLIO, RMT, TWAI, MCPWM, USB Serial/JTAG, temperature sensor, general-purpose timers, system timer, watchdog timer as well as up to 19GPIOs
