Elephant 6 DOF Robotics Arm MyCobot 280 M5Stack

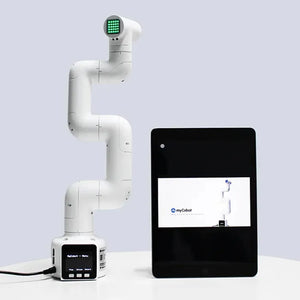

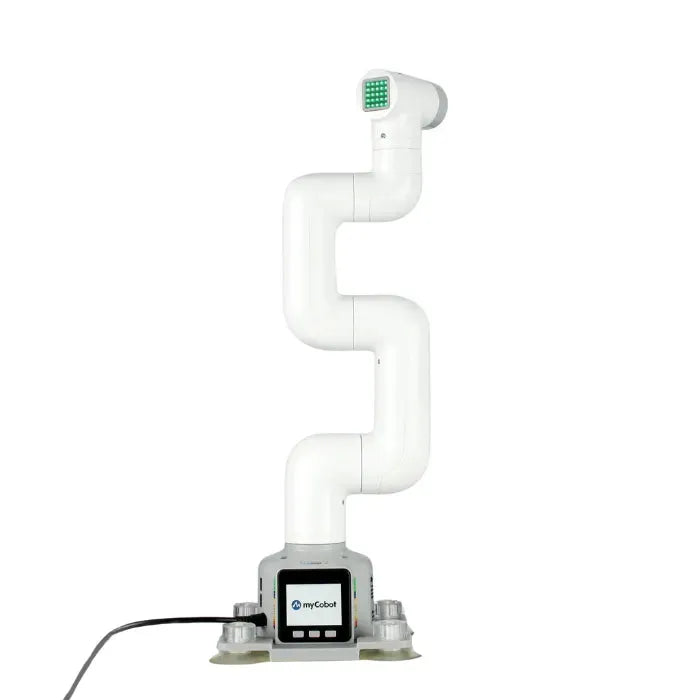

The myCobot 280 M5Stack is a compact, lightweight 6-axis collaborative robotic arm weighing under 1kg. Recognized by IEEE as one of the world’s smallest robot arms, it's engineered for AI education, robotics research, makers, and light-duty automation. With a 250g payload and 280mm working radius, this desktop cobot supports ROS, Python, and multiple platforms for limitless possibilities in development and application.
Key Features
-

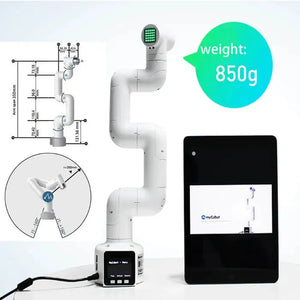

Compact & Lightweight – Weighs less than 1kg, perfect for desktop robotics and portable use
-
6 Degrees of Freedom – Delivers ±0.5mm repeatability using 6 efficient servo motors
-
Powerful Core – Dual ESP32 processors ensure stable and flexible control
-
Cross-Platform Compatibility – Supports Android, Windows, macOS, Linux via USB, Wi-Fi, or Bluetooth
-
Supports ROS1 & ROS2 – Enables advanced simulation and path planning with MoveIt integration
-
Open Programming Ecosystem – Works with Python, C++, C#, Arduino, and more
-

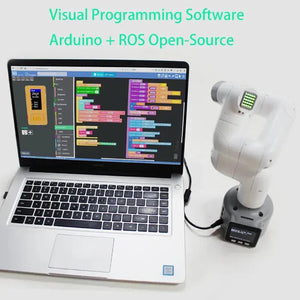

Fully Programmable – Use Blockly, UIFlow, or RoboFlow for visual or code-based control
-

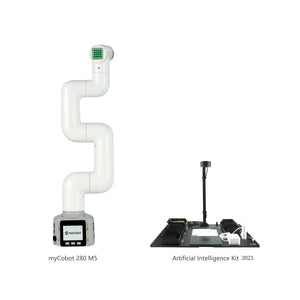

AI Expansion Ready – Add-on AI Kit for machine vision and smart object recognition
-

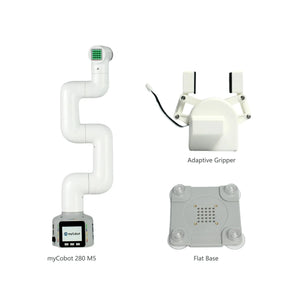

Extensive End Effector Options – Modular Lego-style interface supports various tools and customization
Use Cases & Scenarios
-
Education & AI Research
Perfect for students and labs learning Python, ROS, and robotic control principles. -

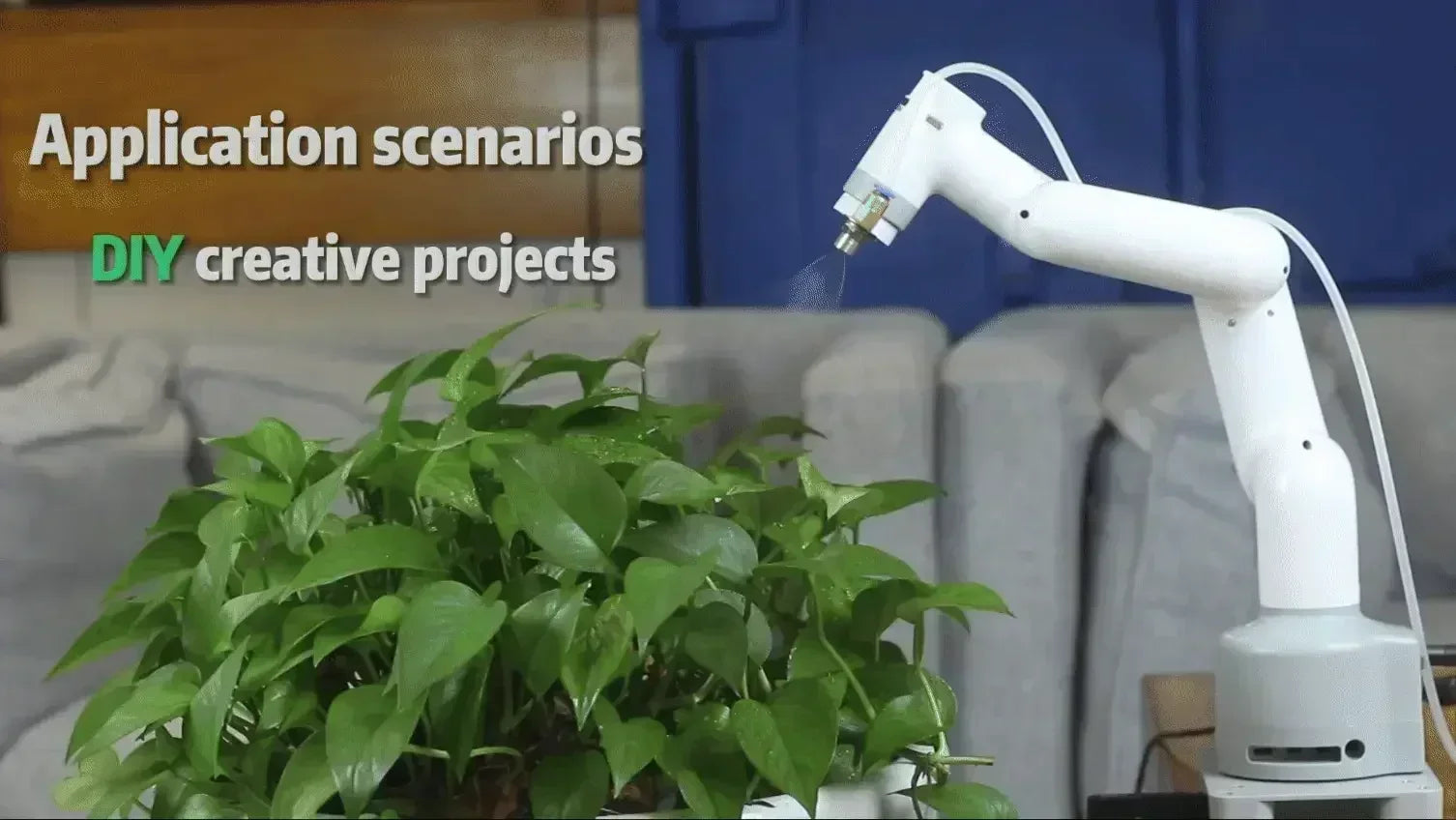

Creative Projects
Enables drawing, writing, engraving, and painting with intuitive motion control.
-
Pick & Place Automation
Precise positioning and gamepad support make it great for sorting and movement tasks.
-
DIY Robotics
A favorite among makers for its modular design and plug-and-play expansion options.
-
Compound Robots

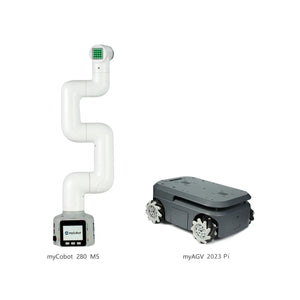

Combine with myAGV mobile chassis to build compound robots with mobility and manipulation capabilities.
Robot Specifications
-
DOF: 6 servo motors
-
Payload: Up to 250g
-
Working Radius: 280mm
-
Repeat Accuracy: ±0.5mm
-
Core Controller: 2 × ESP32
-

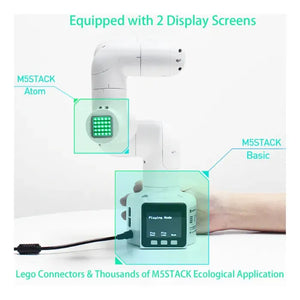

Integrated Matrix Display: 5×5 RGB LED
-
Screen: 2" LED display
-
Buttons: 3 customizable
-
Connectivity: USB / Wi-Fi / Bluetooth
-
Programming: Python, Arduino, C++, Blockly, UIFlow
Supported Software
-

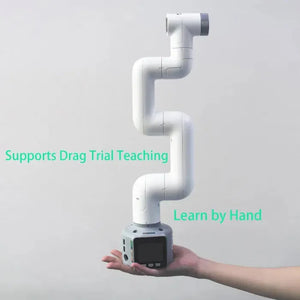

RoboFlow: Drag-and-teach interface for fast setup
-
myBlockly: Visual block-based programming
-
UIFlow: M5Stack ecosystem integration
-
MoveIt (ROS): Advanced robotics simulation, path planning & object avoidance
Highlights
-
10,000+ users across 50+ countries
-
Featured on IEEE and supported by leading robotics communities
-
Designed for rapid prototyping and advanced robotics development
-
Supports multiple platforms and programming languages
-
Trusted by schools, research labs, and professional creators worldwide
Recommended for
-
Robotics learners & educators
-
Developers building automation systems
-
Research teams exploring AI and ROS
-
Makers creating DIY robotic projects
-
Competitions, demos, and creative workshops

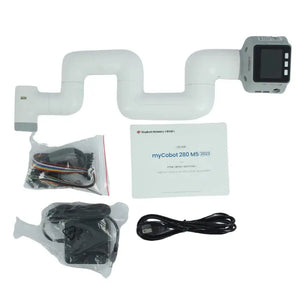

Package Contents
-
myCobot 280 Robotic Arm (M5Stack Edition)
-
Power Adapter & USB Cable
-
Instruction Manual
-

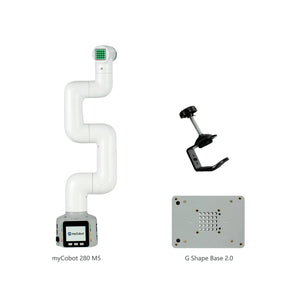

Mounting Base (optional accessories sold separately)
2023 vs. 2020 – Version Comparison
Still using an older myCobot? Here’s why the 2023 version is the better choice for modern robotics development:
| Product Features | myCobot 2023 Support | myCobot 2020 Support |
|---|---|---|
| Kinematics Algorithm Update | Supported (LST) | Supported (LST) |
| Gitbook | Supported (LST) | Supported (LST) |
| GamePad Control | Supported (LST) | Supported (LST) |
| App Control | Supported (LST) | Supported (LST) |
| myStudio | Supported (LST) | Supported (LST) |
| myBlock | Supported (LST) | Supported (LST) |
| ROS 1 | Supported (LST) | Supported (LST) |
| ROS 2 | Supported (LST) | Supported (LST) |
| System Firmware Upgrade | Ongoing | Ended: 2023.09.30 |
| Software Maintenance | Ongoing | Ended: 2023.09.30 |
| Security Vulnerability Repair | Ongoing | Ended: 2023.09.30 |
Note: “LST” refers to Long Support Term – the feature is maintained across both versions. However, the 2020 version is no longer receiving critical firmware, maintenance, or security updates.
Why Choose the 2023 Version?
-
Continued updates and security support
-
Compatible with the latest software ecosystem
-
Future-proof for education, research, and innovation
-
Recommended for all new development and deployment
Reference
Get Users Tutorial On Gitbook (Recommended reading)
