Elecrow ThinkNode M5 Walkie-Talkie Pro

Elecrow ThinkNode M5 Walkie-Talkie Pro

🌟 ThinkNode M5: High-performance LoRa Communication Device

Elecrow ThinkNode-M5 is a high-performance multi-function LoRa device 📡 that integrates advanced wireless communication technology and multiple sensors, making it ideal for IoT and smart automation.

⚙️ The device is powered by the ESP32-S3 processor and supports Bluetooth connectivity 📶. Users can easily configure and monitor it directly from their smartphones 📱.

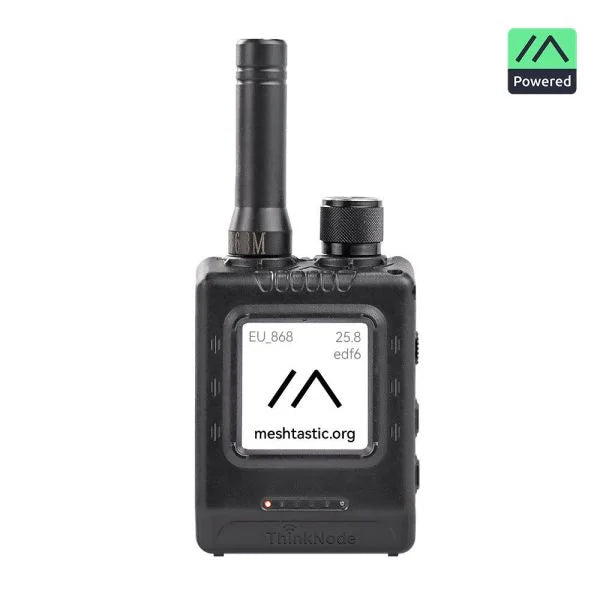

📡 M5 comes pre-installed with Meshtastic firmware. Combined with the SX1262 LoRa chip, it ensures efficient and stable transmission and reception of LoRa signals.

📱 ThinkNode M5 is fully compatible with the Meshtastic official App. With the App, users can configure and manage device parameters ⚙️, send and receive messages 💬, share maps 🗺️ and locations 📍, monitor network status 📶, record and export data 📊, and apply custom settings.

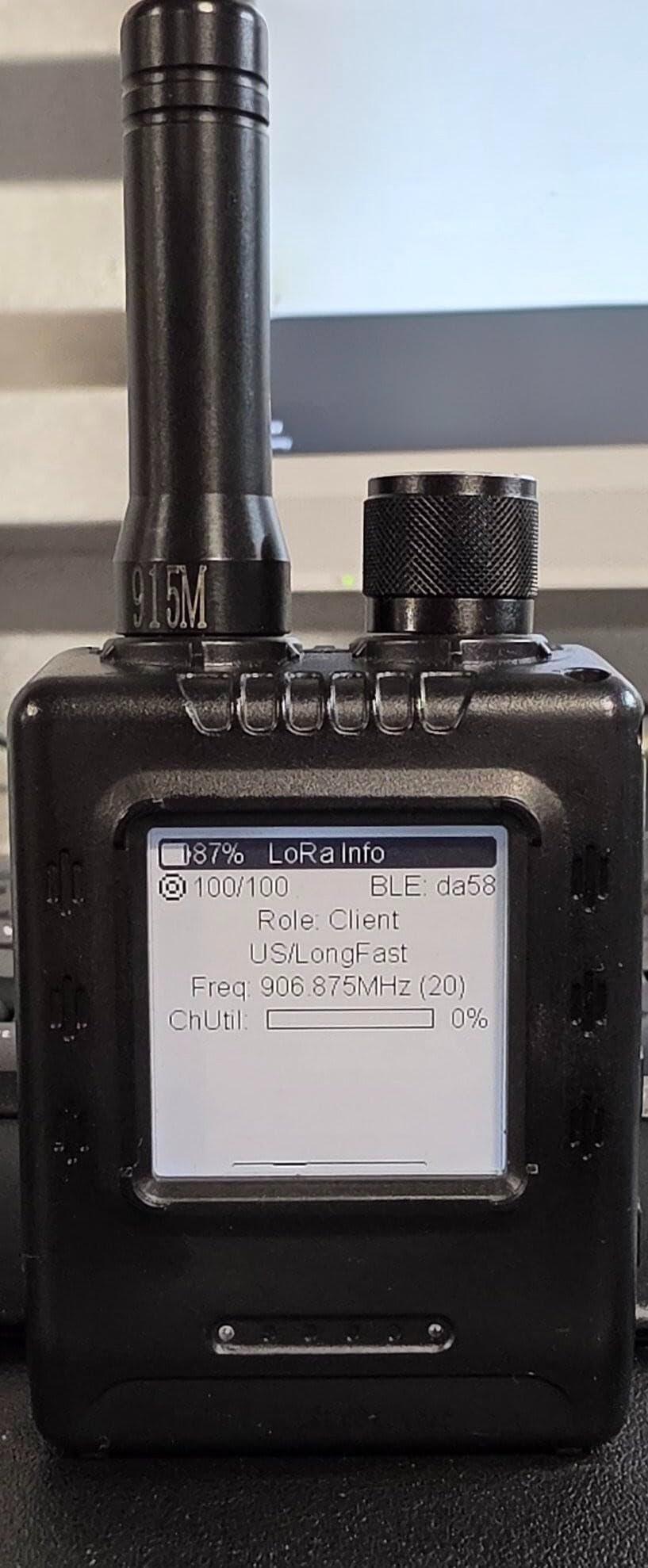

🖥️ The ThinkNode-M5 features a 1.54-inch EPD (Electronic Paper Display), allowing real-time viewing of data and device status. Equipped with a 1200mAh rechargeable battery 🔋, it supports extended outdoor operation.

📍 The built-in GPS module provides accurate positioning in any environment. In areas without network coverage or during emergencies 🚨, it can serve as an independent communication tool to protect user safety.

📡 The external LoRa antenna supports multiple frequency selections. The integrated closed-shell design is compact, portable, and durable 🎒, suitable for rugged environments.

🔗 With its highly integrated design, ThinkNode-M5 combines LoRa and GPS technologies to achieve efficient device-to-device communication and data exchange. Whether in remote areas 🌄 or emergency situations 🚨, M5 is a reliable independent communication solution.

⚠️ Note: If you need to use third-party firmware, please contact us for confirmation.

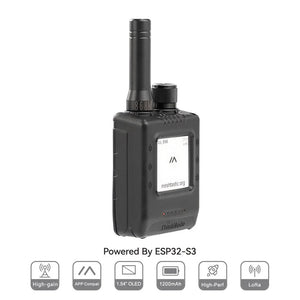

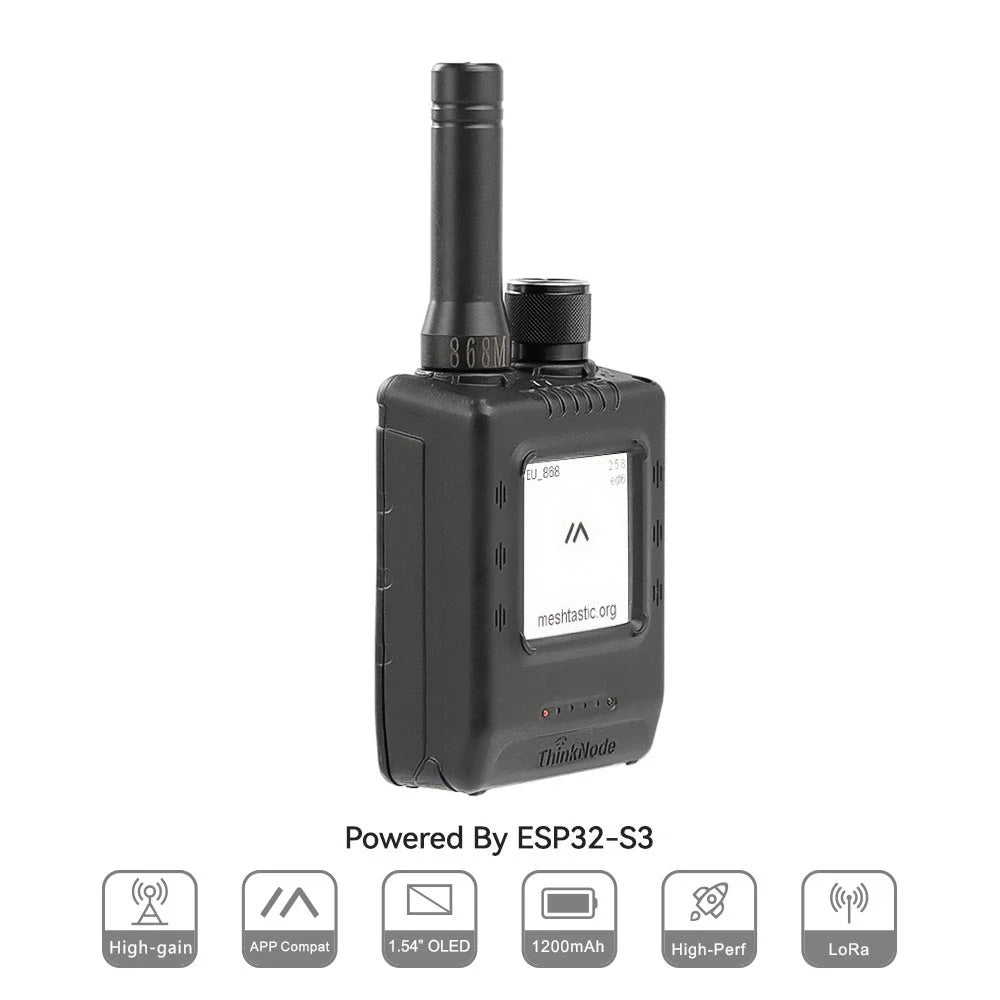

feature of thinknode M5

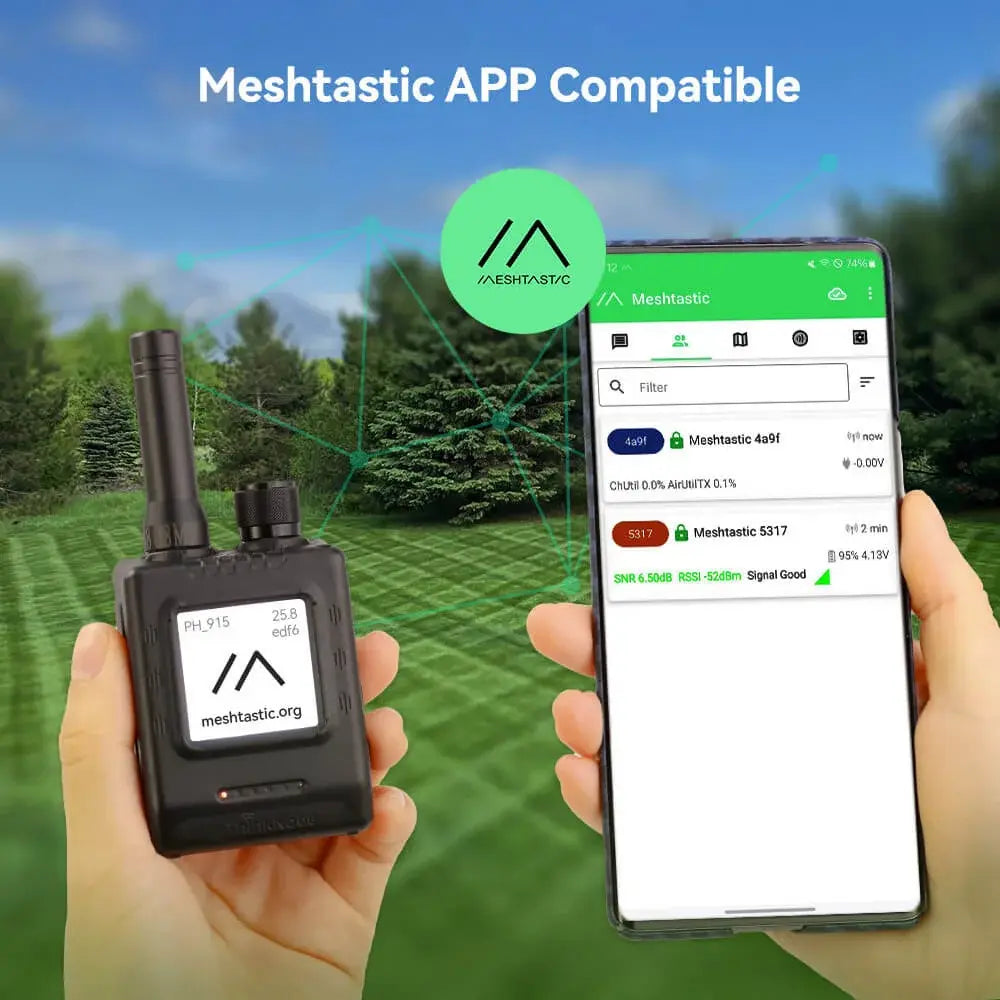

📱 Meshtastic App Compatible

Users can use the App to configure and manage parameters of the M5 device ⚙️, send messages 💬, share maps 🗺️ and locations 📍, monitor network status 📶, record and export data 📊, and customize settings.thinknode M5 support Meshtastic App

🔋 Low Power Consumption and Long Battery Life

The 1200mAh lithium battery 🔋 ensures extended outdoor use. With low power consumption ⚡ (~340mA max, ~34µA standby), it is ideal for IoT and LoRa communication.thinknode M5 with low power consumption

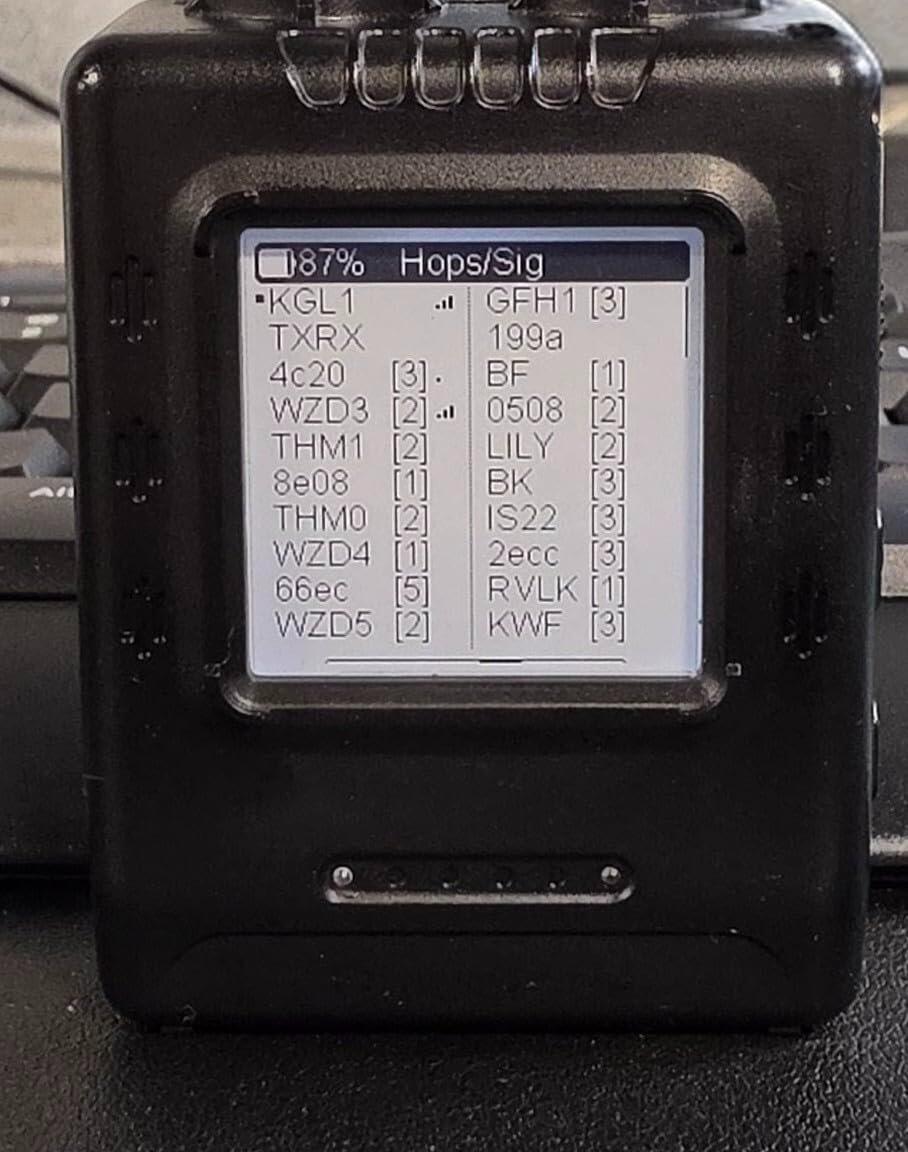

🖥️ Built-in 1.54" EPD Display

Real-time monitoring of device status and data with electronic paper display, ensuring clarity and ultra-low energy usage.ThinkNode M5 with 1.54“ EDP display

📍 GPS Positioning Function

Integrated GPS module provides accurate positioning (GPS, GLONASS, BeiDou, QZSS), enhancing outdoor communication and emergency safety.thinknode M5 with GPS function

🌍 Applications of ThinkNode M5

Perfect for outdoor adventure 🏕️, emergency communication 🚨, community networking 👥, fleet management 🚚, and IoT development 💡.applications of thinknode M5

🛠️ Hardware Overview

hardware overview of thinknode M5



✨ Feature

  • Firmware adapted to Meshtastic protocol, enabling efficient and stable LoRa signal transmission.
  • Built-in GPS module 📍 with GPS, GLONASS, BeiDou, QZSS support.
  • RTC clock ensures accurate timekeeping, supports wake-up and fast hot start.
  • 1.54-inch EPD display 🖥️ for real-time data and status.
  • 1200mAh lithium battery 🔋 for continuous operation.
  • Low power consumption ⚡ ~340mA active, ~34µA standby.
  • Compatible with Meshtastic App 📱 for configuration, messaging, maps, monitoring, and data export.
  • Compact, portable, durable design 🎒.
  • External LoRa antenna 📡 ensures stable signal transmission.

Target Group: Outdoor enthusiasts 🏕️, emergency responders 🚑, rural residents 🌄, technology developers 💡, logistics companies 🚚, and community organizations 👥.

Applications: Outdoor adventure, emergency communications, community networking, technology prototyping, fleet management.



📑 Specification

Main Processor (ESP32-S3)

CPU/SoC

High-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz

System Memory

512KB SRAM, 8MB PSRAM

Storage

4MB Flash, 384KB ROM

Firmware

Pre-installed Meshtastic firmware, fully compatible with LoRa signal transmission

EPD (Electronic Paper Display)

Size

1.54-inch monochrome e-paper screen

Display Material

E-Ink (Electronic Ink)

Resolution

200 × 200 or higher

Driver Chip

SSD1681 (via SPI or I²C interface)

Global Refresh Time

~2 seconds

Wireless Communication

Bluetooth

Bluetooth Low Energy (BLE) and Bluetooth 5.4 for phone configuration

LoRa

SX1262 LoRa transceiver, US 915MHz / EU 868MHz (external RP-SMA antenna)

Hardware & I/O

Interfaces

USB Type-C, RP-SMA antenna port

Functions

GNSS (GPS, GLONASS, BeiDou, QZSS), EPD display, RTC, USB2.0, PMU with 1200mAh battery, buzzer

Buttons

Knob switch, function button, page-turn button, GPS switch, reset button

LED Indicators

Power supply, GPS/LoRa status

Power & Environmental

Power Input

5V/1A, supports USB or lithium battery power supply

Power Consumption

~340mA max (CPU + LoRa transceiver), ~34µA low-power standby

Operating Temperature

-10 ~ 50°C

Storage Temperature

-20 ~ 60°C

Relative Humidity

10% – 95% @ 40°C (non-condensing)

Mechanical

Size

82 × 51.6 × 26.3 mm

Enclosure

ABS plastic housing

Net Weight

58g (without case); 81g (with case)



🔍 What's the difference between ThinkNode M1 vs M2 vs M5?

Difference between ThinkNode M1/M2/M5

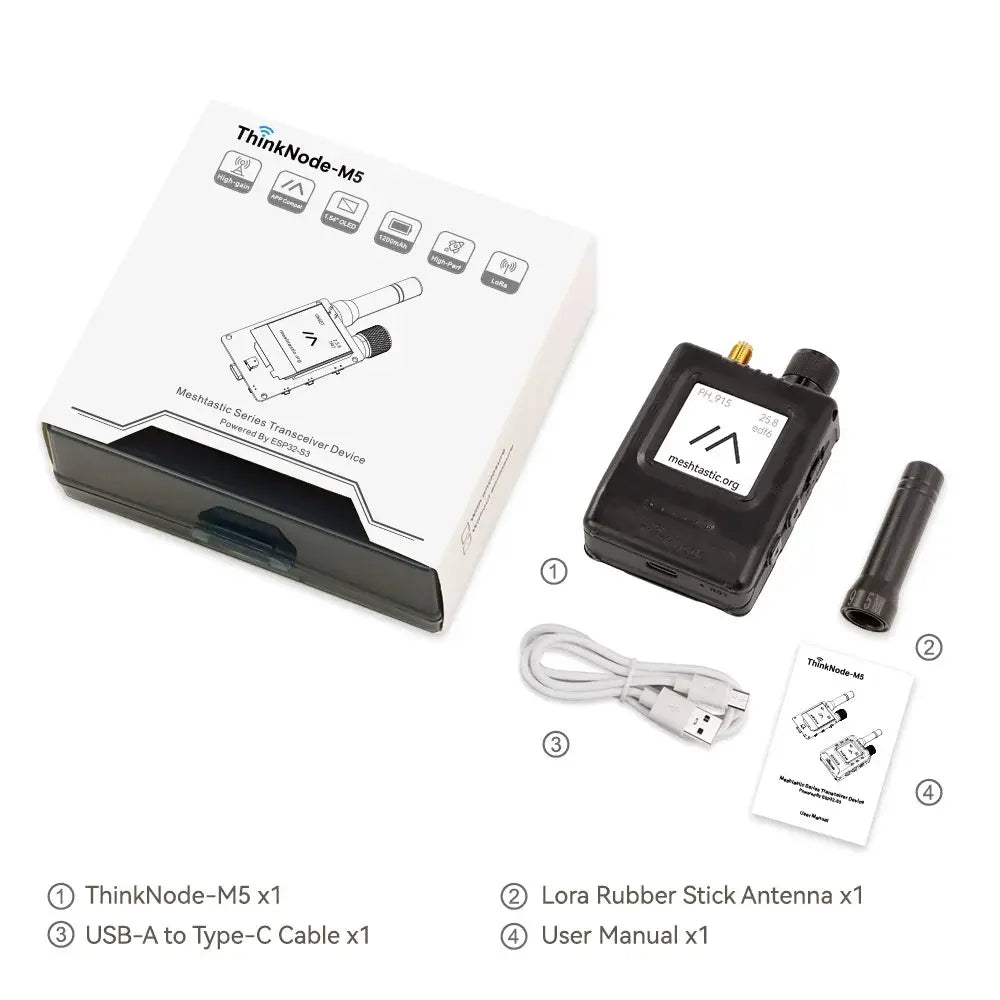

📦 Package List

  • 1 × ThinkNode M5 Meshtastic LoRa Transceiver
  • 1 × USB-A to Type-C Cable
  • 1 × LoRa RP-SMA Rubber Antenna
  • 1 × User Manual 📖
