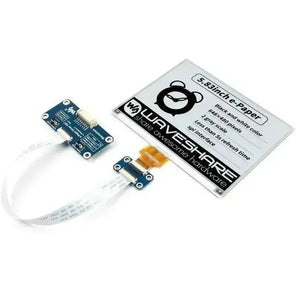

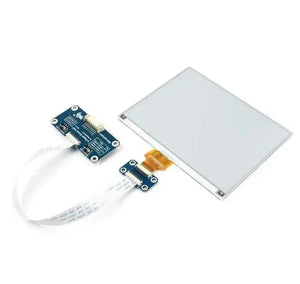

Waveshare 5.83 inch E-Ink E-Paper with Hat
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
Waveshare 5.83 inch E-Ink E-Paper with Hat
PACKAGE CONTENT
Weight: 0.35 kg
- 5.83inch e-Paper x1
- e-Paper Driver HAT x1
- RPi screws pack (2pcs) x1
- GH1.25 9PIN cable ~20cm x1
Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
-
Size
5.83"
-
Resolution
648×480
-
Viewing Angle
170°
-
Display Color
Black / White
-
Grey Scale
2
-
-
Communication
SPI
-
Display Panel
E-paper
-
Experience
Paper-like
-
Environment
Ambient Light Required
-
Display Type
Passively Reflective
- No backlight, keeps displaying the latest content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
|
OPERATING VOLTAGE |
3.3V/5V |
DISPLAY COLOR |
black, white |
|
INTERFACE |
3-wire SPI, 4-wire SPI |
GREY SCALE |
2 |
|
OUTLINE DIMENSIONS |
125.40 × 99.50mm |
FULL REFRESH TIME |
5s |
|
DISPLAY SIZE |
119.232 × 88.320mm |
REFRESH POWER |
26.4mW(typ.) |
|
DOT PITCH |
0.184 × 0.184mm |
STANDBY CURRENT |
<0.01uA (almost none) |
|
RESOLUTION |
648 × 480 pixels |
VIEWING ANGLE |
>170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

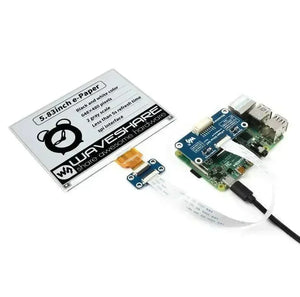

Compatible With Raspberry Pi Series Boards, Jetson Nano
For Use With Other Controller Boards Like Raspberry Pi/Jetson Nano/STM32/Arduino
|
VCC |
3.3V/5V |
|
GND |
Ground |
|
DIN |
SPI MOSI pin |
|
CLK |
SPI SCK pin |
|
CS |
SPI chip selection, low active |
|
DC |
Data / Command selection (high for data, low for command) |
|
RST |
External reset, low active |
|
BUSY |
Busy status output |
|
PWR |
Power on/off control |
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
