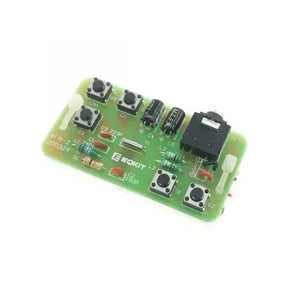

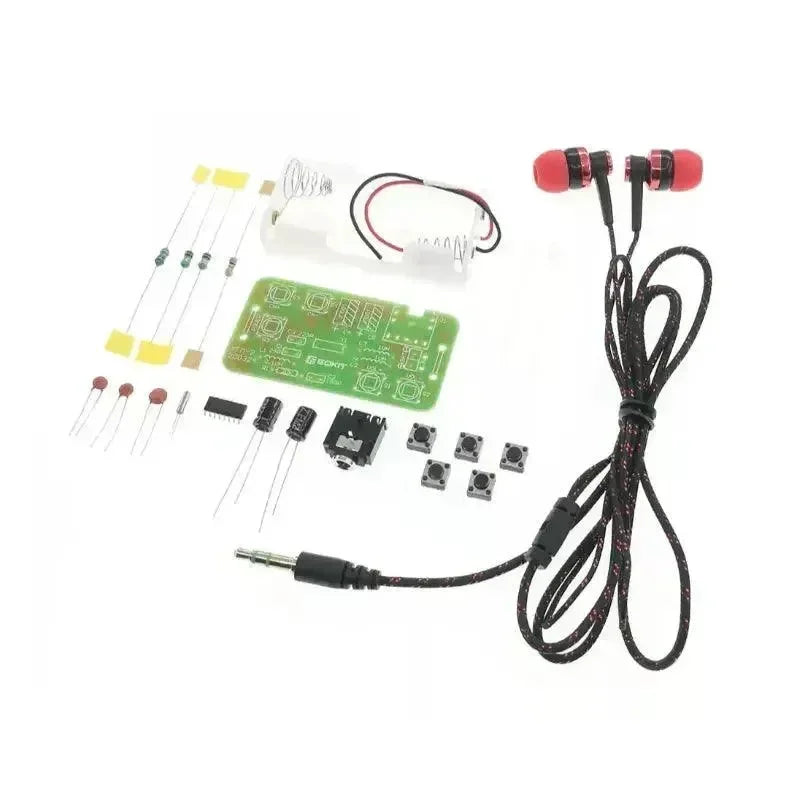

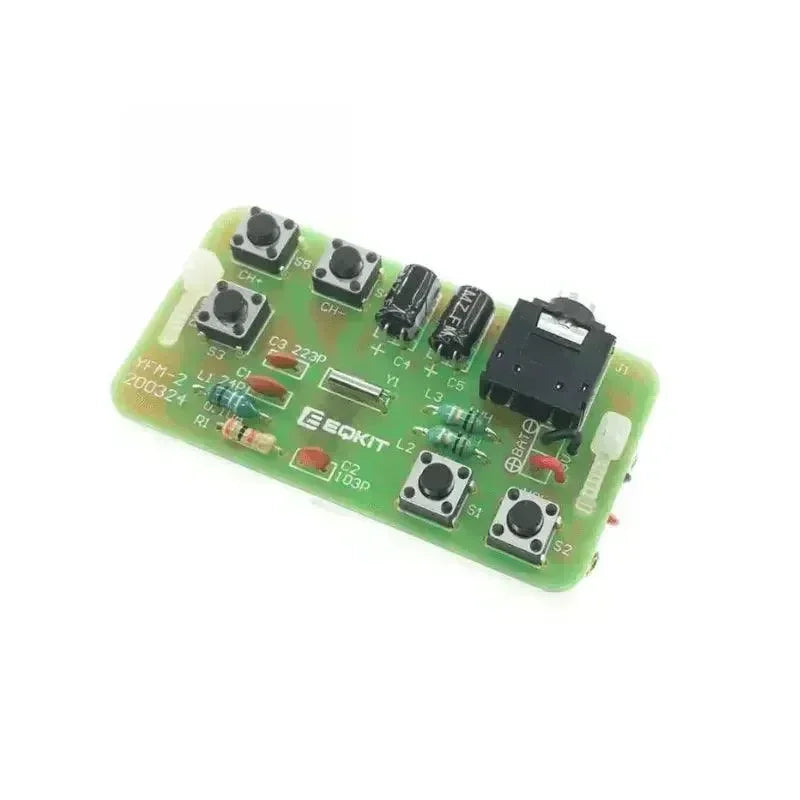

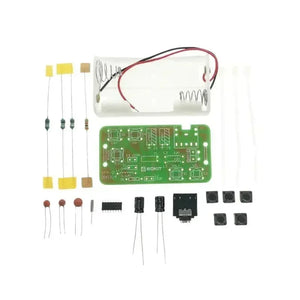

DIY Radio FM Stereo Radio Kit for Beginners

The YFM-2 radio circuit is very simple, with a total of no more than 19 components. Despite the small number of components, it includes both surface-mount and through-hole types, making it ideal for beginners and those who want to practice soldering surface-mount components. Its features include:

1. Digital Automatic Gain Control (AGC) circuit for more stable signal reception.

2. Low power consumption, with a total current of about 19mA when powered by two AA batteries.

3. Supports global frequency range of 76-108MHz.

4. Memory function for radio stations, automatically returning to the last station and volume setting upon power-up.

5. Simple circuit design that is easy to assemble and works without needing any adjustments.

Parameters

• Kit Name: FM Radio
• Kit Model: YFM-2
• Operating Voltage: 2.7–3.3V
• Operating Current: 19mA
• Radio Frequency Range: 76–108MHz
• Headphone Impedance: 32 Ω
• PCB Size: 56.2 × 30mm
• Kit Weight: 13g
