Description

Note: All products are tax-inclusive.

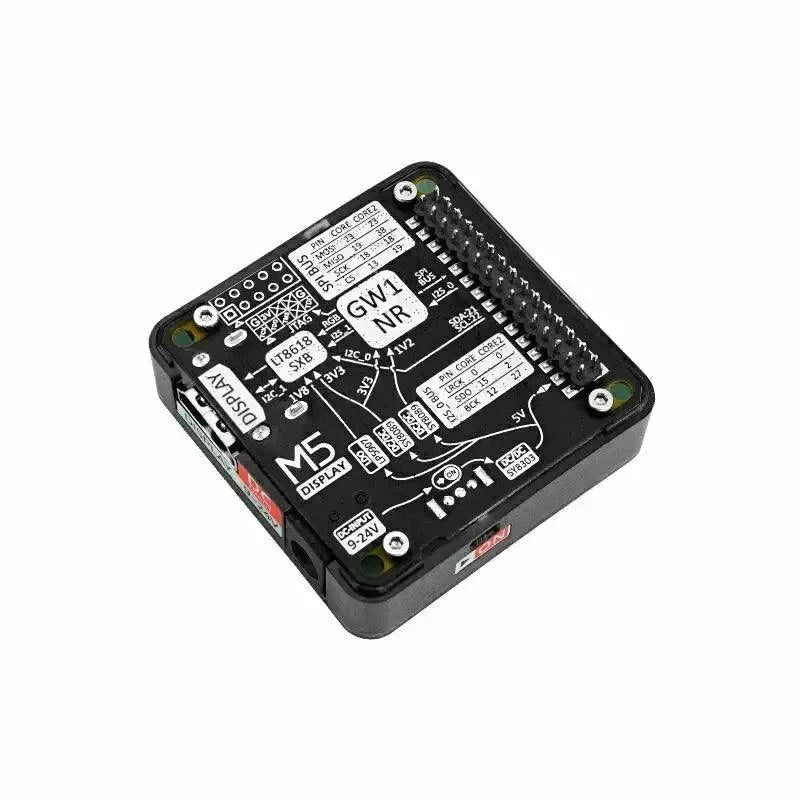

Display Module 13.2 is an expansion module for HD audio and video, using GAOYUN GW1NR series FPGA chip to output the Display signal, and using LT8618S chip as signal output conditioning, which can achieve 24-bit color depth Display signal and up to 8-channel audio signal output, resolution up to 1080P, of which FPGA internally realizes I2S audio generation function. The module contains a DC power input socket and corresponding DC-DC circuit, which can realize the power supply of the whole machine. This product is suitable for various programmable HD AV output and other occasions.

Features

  • Supports 24-bit RGB input
  • Resolution up to 1080P
  • Supports up to 8 channels of audio input
  • Includes 9-24V to 5V, 3.3V and 1.2V DCDC circuits and 5V to 1.8V LDO circuits
  • HD audio and video interface, JTAG download interface
  • 9-24V DC power interface
  • Power switch

Includes

  • 1x Display Module 13.2

Applications

  • Output HD audio and video signals
  • Human-machine interaction

Specification
Audio and video signal acquisition chip GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip LT8616SXB
9-24V to 5V DCDC buck chip SY8303
5V to 3.3V and 1.2V DCDC buck chips SY8089
5V to 1.8V LDO buck chip LP5907
Resolution MAXIMUM 1080P (1920x1080)
The power supply 9-24V
Product Size 54mm × 54mm × 14.2mm
Package Size 93mm × 63mm × 25mm
Product Weight 21.6g
Package Weight 41.2g
