DFRduino UNO R3 - Compatible with Arduino Uno

13,55 €

The DFRduino UNO V3.0 from DFRobot is a compact physical computing board ideal for both academic use and development. It is a microcontroller board fully compatible with Arduino UNO R3 and the Arduino IDE open-source development environment, which supports the Processing / Wiring language.

You can use it to build stand-alone interactive objects or connect it to software on your computer (such as Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free and supports Mac OS X, Windows, and Linux.



Board Features

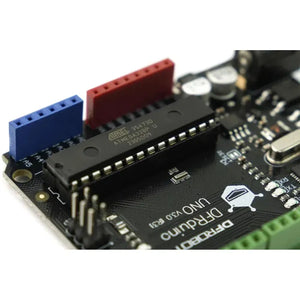

This board uses the ATmega16U2 as a USB-to-serial converter and retains the DIP package AVR Chip (ATmega328), allowing for easy reprogramming or replacement.

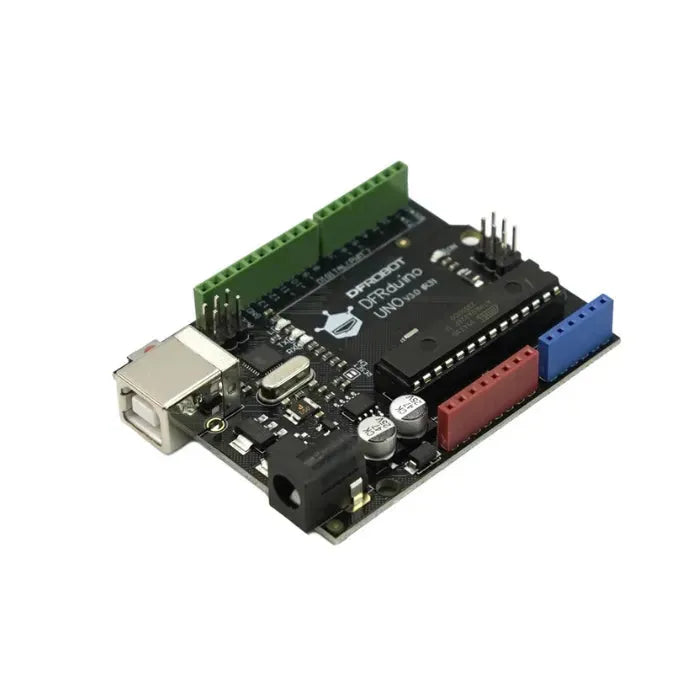

A key feature of this board is the use of color-coded headers for different I/O port types:

  • Red for Power Section

  • Blue for Analog I/O

  • Green for Digital I/O

These colors match DFRobot’s sensor cables, making it easier to identify where to connect sensors and distinguish between Analog and Digital pins.



Technical Specifications

Parameter Description
Microcontroller ATmega328 (DIP package)
Operating Voltage 5V
Input Voltage 7V–12V DC (recommended)
Output Voltage 5V DC and 3.3V DC
Clock Speed 16 MHz
Bootloader Arduino Uno
Digital I/O Pins 14 (6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328)
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)

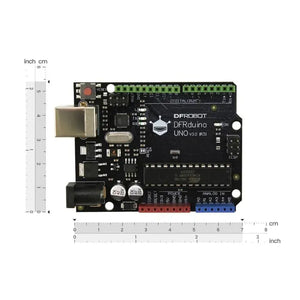

Dimensions 75 x 54 x 15 mm
Weight 45 g
USB Connection A-B USB cable
IDE Support Arduino IDE 1.0 and above
Environment Friendly RoHS Compliant



Interface & Compatibility

  • Supports UART, I2C, and SPI

  • ICSP Header for firmware upload

  • RESET Button

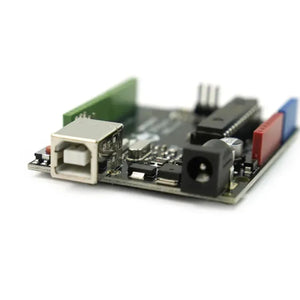

  • USB Interface supports both programming and power supply

  • SDA and SCL pins near the AREF pin

  • IOREF pin supports shields that adapt to 3.3V or 5V systems

  • Fully compatible with all Arduino UNO R3 shields



Applications

  • STEM education

  • DIY electronics projects

  • Smart home systems

  • Rapid prototyping
