DAMIAO H65-1EC Brushless Servo Joint Motor 6N·m hub motor

DAMIAO H65-1EC Brushless Servo Joint Motor 6N·m hub motor

186,95 €

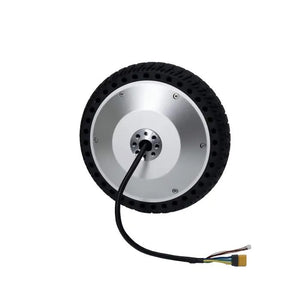

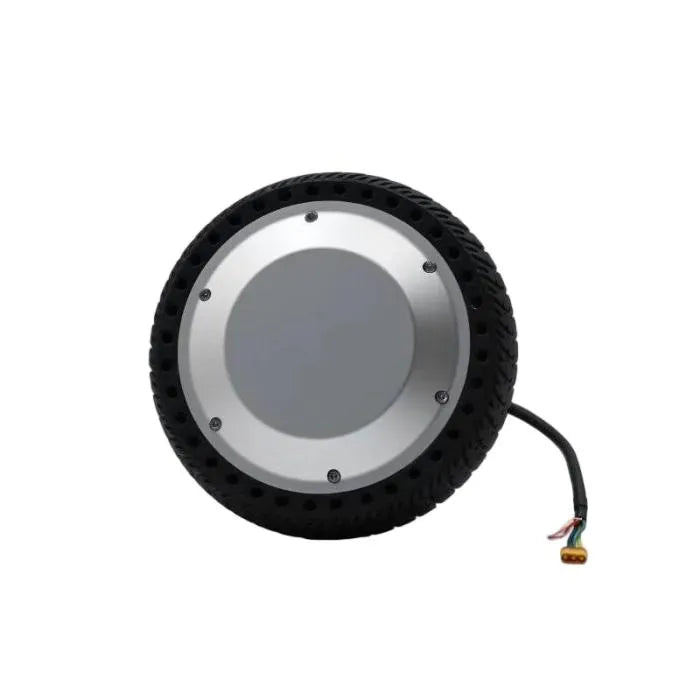

DAMIAO H65-1EC Brushless Servo Joint Motor is a high-torque hub motor designed for demanding robotic and industrial applications. Featuring a modular driver-motor architecture, it allows seamless driver replacement without recalibration. The motor integrates a 17-bit high-precision encoder with ±0.05° accuracy, supports CAN FD communication, and offers real-time feedback of motion and thermal parameters. With 6 Nm rated torque and 21.5 Nm peak torque, it delivers powerful performance across 24V, 36V, and 48V systems, making it ideal for precision joint control in large-scale platforms.



Features

  • High-resolution encoder with ±0.05° accuracy.

  • Modular motor-driver separation, allowing driver replacement without recalibration.

  • PC-based visual tuning, with full CAN parameter read/write support.

  • Supports CAN FD, with maximum transmission rate of 5 Mbps.

  • Real-time feedback via CAN bus: speed, position, torque, and temperature.

  • Dual temperature protection for safe operation.

  • CAN-based firmware upgrade supported.



Specifications

Parameter Value
Rated Voltage Options 24V / 36V / 48V
Rated Phase / Power Current 9.4A / 5.10A @24V
9.4A / 3.45A @36V
9.4A / 2.56A @48V
Peak Phase / Power Current 33.6A / 21.55A @24V
33.6A / 14.00A @36V
33.6A / 10.40A @48V
Rated Torque 6.0 Nm
Peak Torque 21.5 Nm
Rated Speed 120 rpm
Max No-load Speed 260 rpm @24V
395 rpm @36V
480 rpm @48V
Slot Count 27
Pole Pairs 15
Phase Inductance 750 μH (@25°C)
Phase Resistance 420 Ω (@25°C)
Outer Diameter 171 mm
Height 66.3 mm
Weight ~3150 g
Encoder Resolution 17-bit
Encoder Accuracy ±0.05°
Encoder Count 1
Control Interface CAN @5 Mbps (Max)
Tuning Interface UART @921600 bps
Control Modes MIT mode, speed mode, position mode, hybrid force-position mode
Protection Features Over-temp, over-voltage, under-voltage, over-current, communication loss





Application

  • Heavy-Duty Robotic Joints: Ideal for humanoid legs, quadruped hips, and industrial manipulators.

  • Autonomous Mobile Platforms: Suitable for hub-driven AGVs, AMRs, and electric wheel systems.

  • Precision Motion Systems: Used in torque-controlled automation and force-feedback mechanisms.

  • Research & Prototyping: Applicable in advanced robotics labs and actuator benchmarking setups.



Packing List

Item Description Quantity
Motor DAMIAO H65-1EC Brushless Servo Joint Motor with Integrated Driver 1
Power Cable XT30 Single-End Connector Cable (200 mm) 1
UART Debug Cable GH1.25‑3pin Flat Cable (300 mm) 1
CAN Communication Cable GH1.25‑2pin Flat Cable (300 mm) 1
