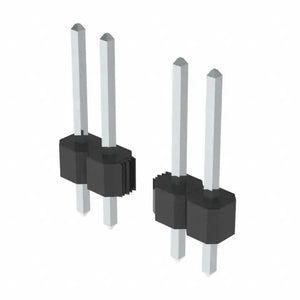

CONN HEADER VERT 15POS 2.54MM
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
CONN HEADER VERT 15POS 2.54MM
Product Applications
It is widely used in PCB circuit boards in electronics and electrical instruments. Its function is to serve as a bridge between circuits where the circuits are blocked within the circuit, and undertake the task of current or signal transmission.
Parameter
| Item | Parameter |
|---|---|
| Pin pitch | 2.54mm |
| Rated current | 3A |
| Rated voltage | 600V |
| Contact resistance | 20mΩ |
| Insulation resistance | 1000mΩ |
| Operating temperature | -45°C to 105°C |
Details
| Description | Details |
|---|---|

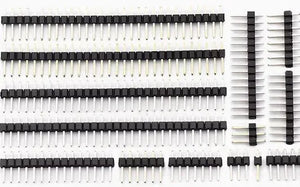

| Name | Single row pin |
| Function | A kind of connector, widely used in PCB board connection. Usually used in conjunction with the female row to form board-to-wire connection; can also be used independently for board-to-board connection. |
| Characteristics | Can withstand considerable external forces, with high reliability, long service life, not easy to fall off, and can meet different high current and high voltage requirements. |
