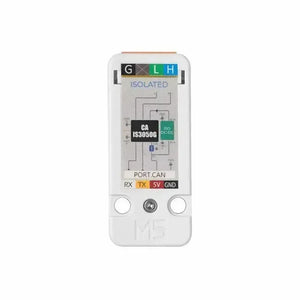

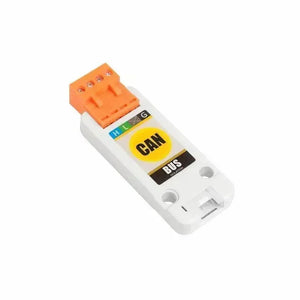

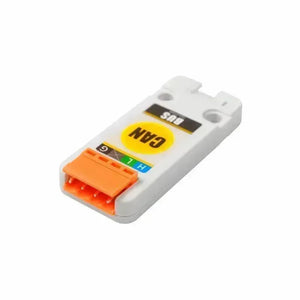

CAN BUS Unit (CA-IS3050G)
CAN Unit is an isolated Controller Area Network (CAN) transceiver unit that can be used to build a complex CAN communication network. The built-in DC-DC isolated power chip can isolate noise and interference and prevent damage to sensitive circuits.
The model of the isolated CAN transceiver is CA-IS3050G, which can provide differential receive and differential transmit functions. The bus can support up to 110 nodes, and the signal transmission rate can reach 1Mbps. It has current limiting, over-voltage, ground loss protection (-40V to 40V) and thermal shutdown functions, which can prevent output short circuit, and meets the technical specifications of ISO 11898-2 standard.
CAN is an international ISO standard serial communication protocol. CAN belongs to the field bus category. It is a kind of serial communication network that can effectively support distributed control or real-time control.
The distributed control system based on CAN bus adopts multi-master competitive bus structure, which has the characteristics of multi-master station operation, decentralized arbitration and broadcast communication.
It has some obvious advantages in the following aspects: High speed, low failure rate data communication between nodes in the network. When multiple nodes initiate communication at the same time, the one with low priority will avoid the one with high priority, which will not cause congestion to the communication line. The communication distance can reach 10KM (the rate is less than 5Kbps) and the rate can reach 1Mbps (the communication distance is less than 40m).
Arduino Example
Product Features
- Power light
- Built-in isolated DC-DC
- Signal rate up to 1Mbps
- Protection function: signal isolation, current limiting, over-voltage protection and thermal shutdown
- 2x LEGO compatible hole
- HY2.0 4P Interface

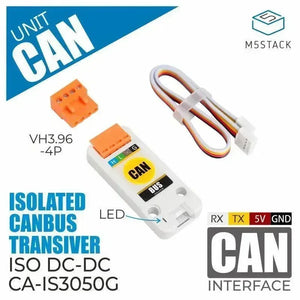

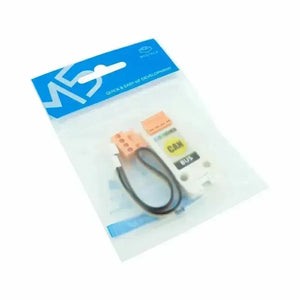

Include
- 1x CAN Unit
- 1x HY2.0 Cable(20CM)
- 1x VH3.96-4P
- 1x 120R Resistor
Application
- CAN bus communication
- Industrial field control
- Security system
Specification
| Resources | Parameter |
|---|---|
| Rated withstand voltage | 1000V |
| Maximum rate | 1Mbps |
| Number of theoretical nodes | 110 |
| Low loop delay | -150ns |
| Common mode voltage | -12V ~ 12V |
| Protection Function | Current limiting, over voltage, main dynamic time-out function, and signal isolation |
| Net Weight | 12g |
| Gross Weight | 25g |
| Product Size | 65 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
| Case Material | Plastic ( PC ) |
