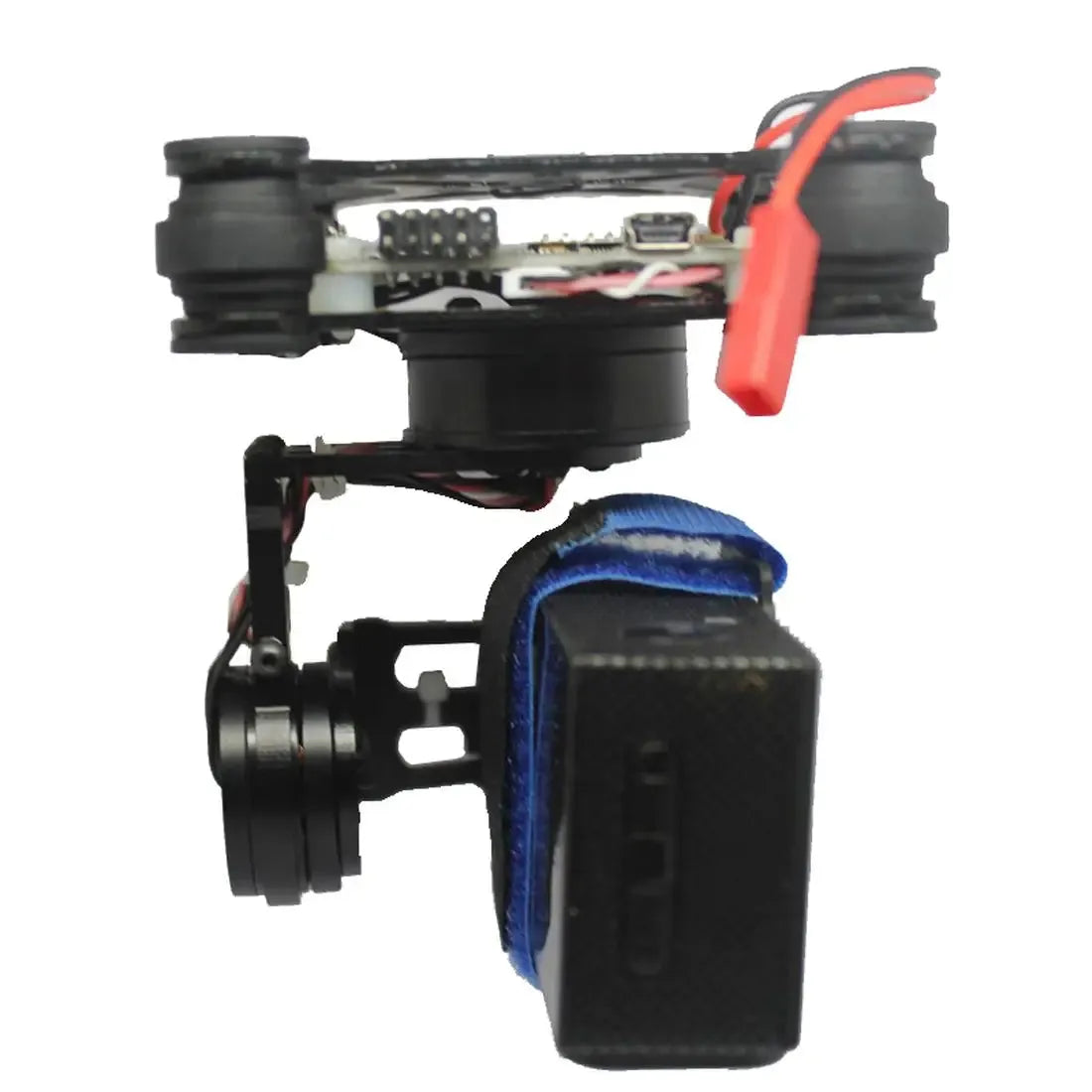

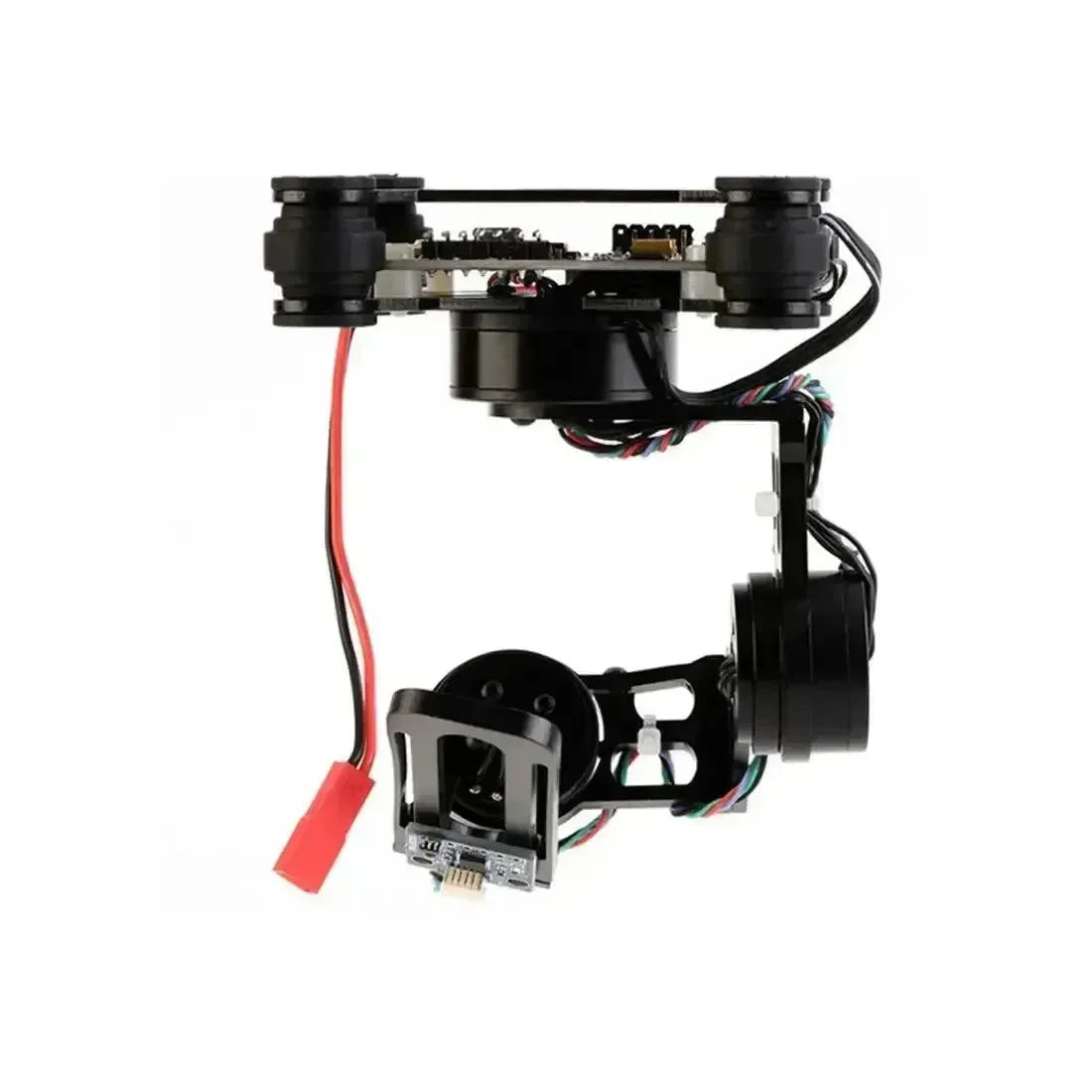

3-Axis Brushless Gimbal Frame with Motors & Controller

Specification:

T brushless motor motor models: 2206/100:2, only 2805/100 t brushless motor: 1 only

The driver board: STORM32BGC

Firmware version: o323bgc - release - v090

Hardware version: V130

Working voltage: 3-4 s (11.1 to 16.8 V)

Working current: 350 ma

Joystick control Angle: PITCH: 25 + 25 degrees/ROLL: 25 + 25 degrees/YAW: + 90 degrees - 90 degrees.

Switch control mode: lock/follow

Size: 80 * 80 * 100 mm (L * W * H)

Weight: 180 g

Scope of application: for GOPRO series camera

Electrical connections: JST and HX

How to install:

1. Remove vibration ball, open at the top of the mounting plate

2. Lock mounting plate with screws at the bottom of the craft

3. Install the damping ball

4. Install the camera, with a girdle bond compact camera.

Directions for use

Packed the camera (be sure to install cameras, otherwise will be shaking), after electrify stable yuntai about 20 seconds (don't be shaking yuntai, keep yuntai hangs,) from the ground, after hearing a sound, can be normal use

Can control the pitch by a receiver or other individual PWM channels

You can set the following mode or lock mode

Can set the Angle mode or speed
