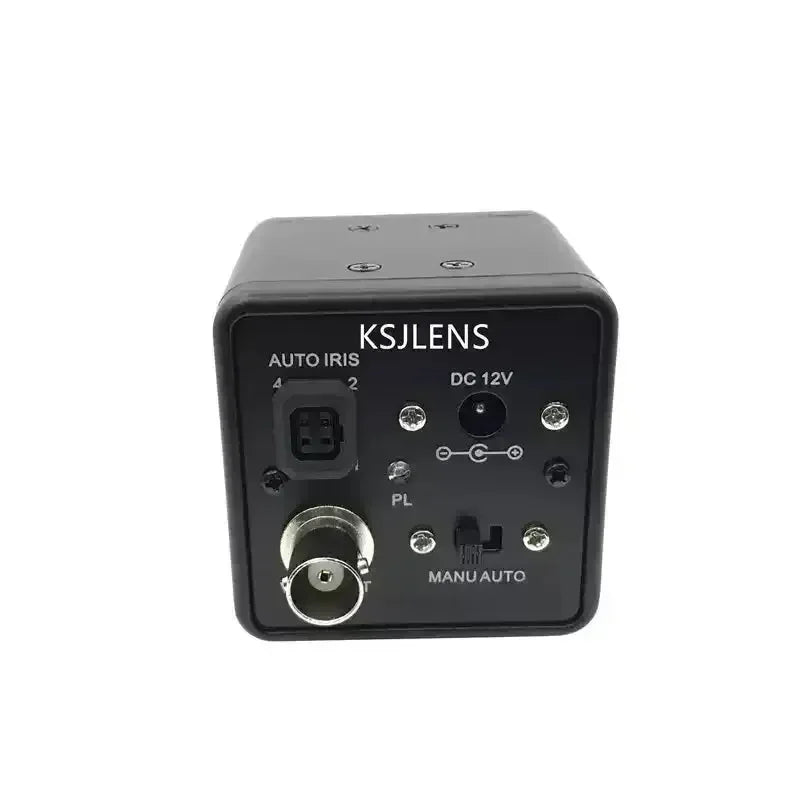

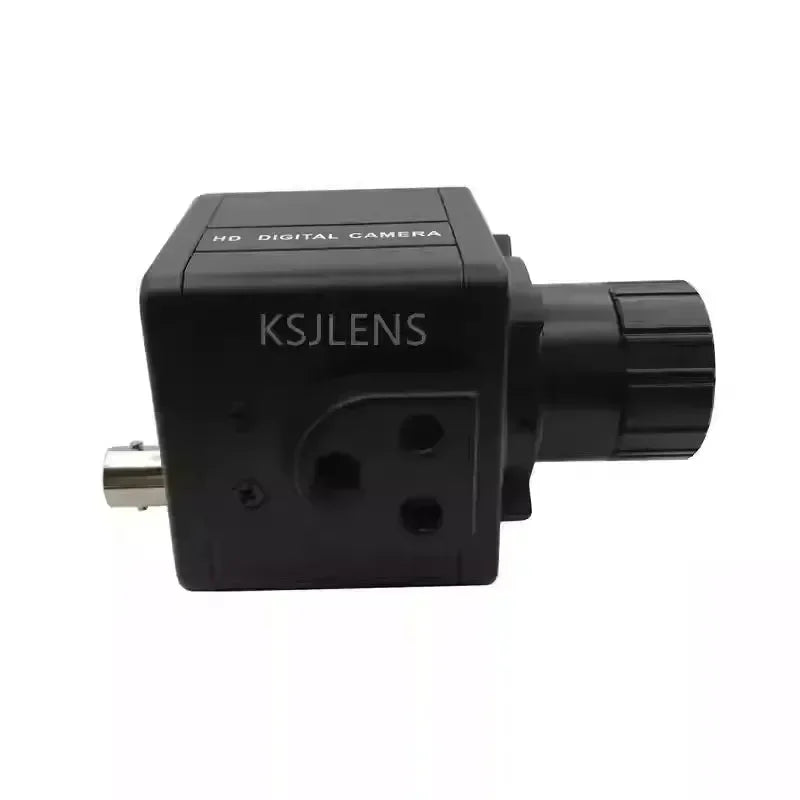

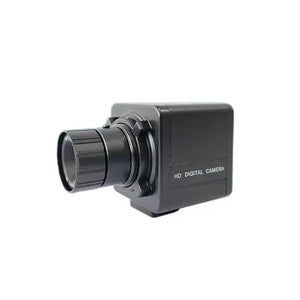

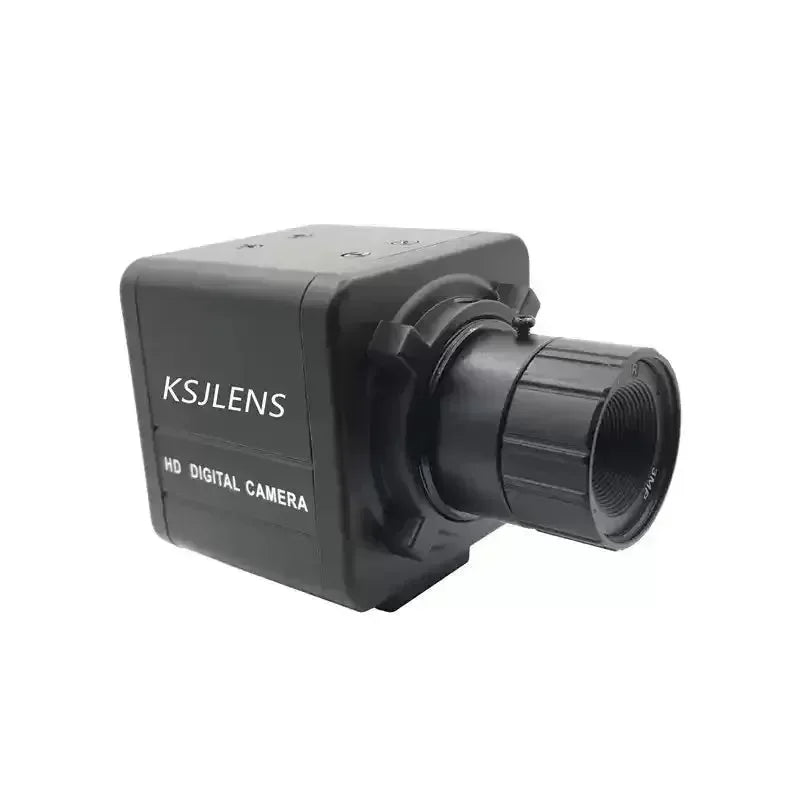

BNC Cross Line CCD Laser HD CVBS Camera

The BNC Cross Line CCD Laser HD CVBS Camera is suitable for various visual industrial inspections such as those of PCB boards, hardware, connectors, FPCs, textiles, and tickets, as well as for digital magnifiers, medical research, criminal investigations, and other fields.

It is especially suitable for online inspections of the flatness of connectors, connecting terminals, IC pins, and the coplanarity of planes. It can easily reduce labor intensity and improve work efficiency.

Product Parameter

Parameter Name	Parameter Value
Model	SONY - 1200 (High - definition Industrial Camera)
Sensor	SONY CCD673
Total Pixels (PAL)	1020H×596V
Total Pixels (NTSC)	1020H×508V
Effective Pixels (PAL)	976H×582V
Effective Pixels (NTSC)	976H×494V
Signal Format	PAL
Resolution (Horizontal Center Level)	1200TVL
Minimum Illumination	0.001Lux
OSD Function - Lens	Auto/Manual
Shutter/Auto Gain Control	Auto/Manual
Image Adjustment	Mirror/Contrast/Sharpness
Day/Night Mode	Auto/Color
Strong Light Suppression/Backlight Compensation	Off/Strong Light Suppression/Backlight Compensation
Language	Chinese/English/Japanese/German/French/Russian/Portuguese/Spanish
White Balance	ATW/One - press/User 1/User 2/Inhibit Color Drift/Manual/One - press Lock
Noise Reduction	Off/Low/Low - medium/Medium/Medium - high/High
Motion Detection	On/Off
Electronic Zoom	0 - 255
Digital Image Stabilization	On/Off
Privacy	Area Selection/Mode/Position/Color/Transparency/Mosaic
Motion Detection	On/Off
Camera Reset	Supported
Video Output Amplitude	1.0Vp - p/75Ω
Electronic Shutter	1/50(1/60) - 1/100000 seconds
Operating Humidity	Relative humidity below 90%
Operating Voltage	DC12V±2%
Operating Temperature	-10°C ~ +60°C
Lens Options	2.8/4/6/8/12mm
Camera Dimensions	Length: 50mm, Width: 50mm

Lens Size

In a surveillance camera, the smaller the focal length (unit: mm), the wider the surveillance field of view, but the objects in the screen appear smaller; conversely, the larger the focal length, the narrower the surveillance field of view, but the objects in the screen appear clearer. A comparison of focal length and field of view.

Lens Size	Recommended Illumination Angle	Recommended Illumination Distance
4mm	70°	0 - 5m
6mm	65°	5 - 10m
8mm	40°	10 - 20m
12mm	28°	20 - 35m

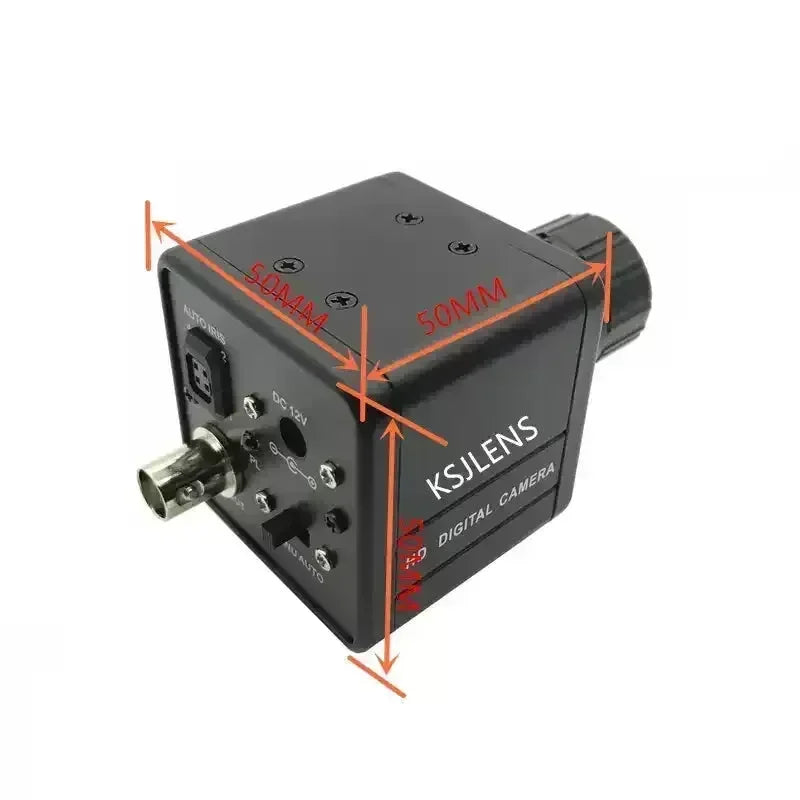

Product Size
